Upper 1st Bicuspid Has 2 Roots

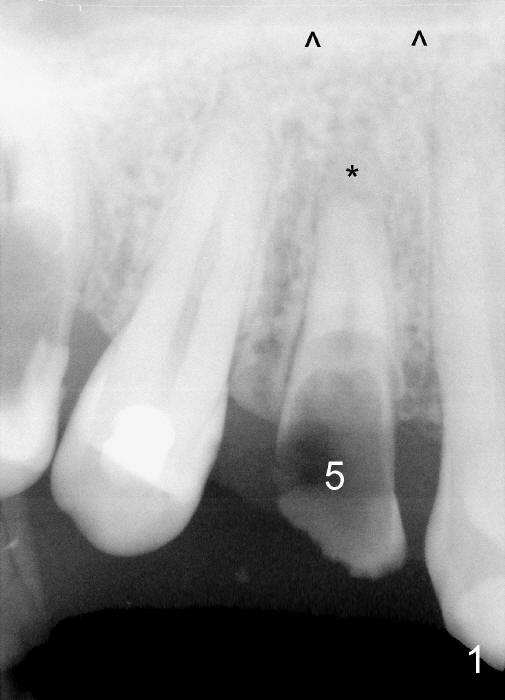

A 25-year-old black man has poor dentition.  The tooth #5 is non-salvageable (Fig.1-6).  Although the 1st bicuspids belong to the posterior teeth, anterior sensor holders should be used to show the sinus floor (Fig.1,2: ^).  In contrast, PAs in Fig.3,6 (trimmed mesiodistally) are taken with posterior sensor holders; the sinus floor is out of view.

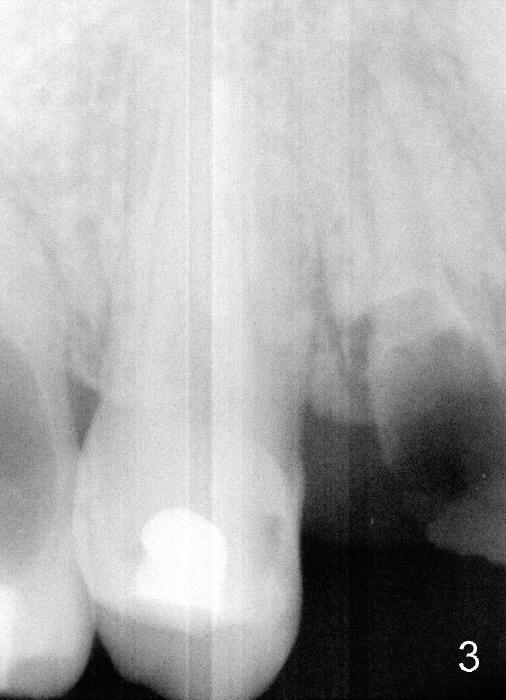

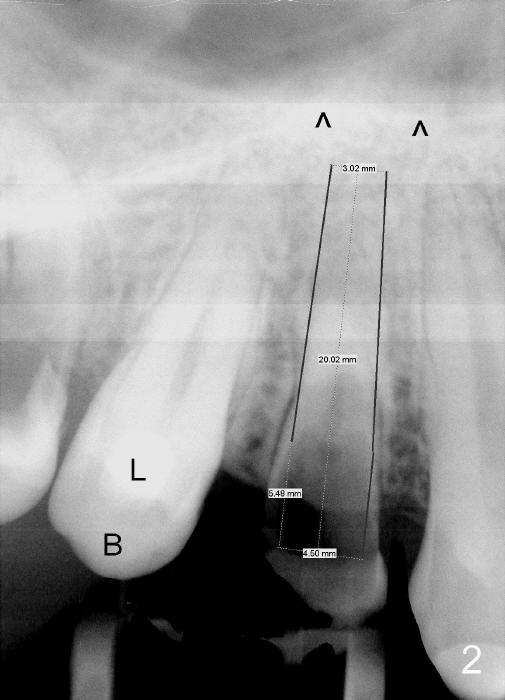

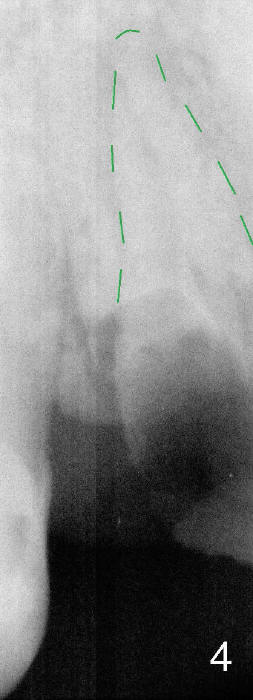

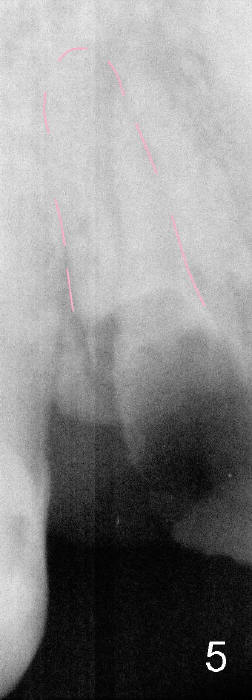

A long implant will be placed (possible 4.5x20 mm, Fig.2).  A typical 1st bicuspid has 2 canals.  In this case, there are most likely two roots (Fig.3): buccal (Fig.4 green dashed line) and lingual (Fig.5 pink dashed line).

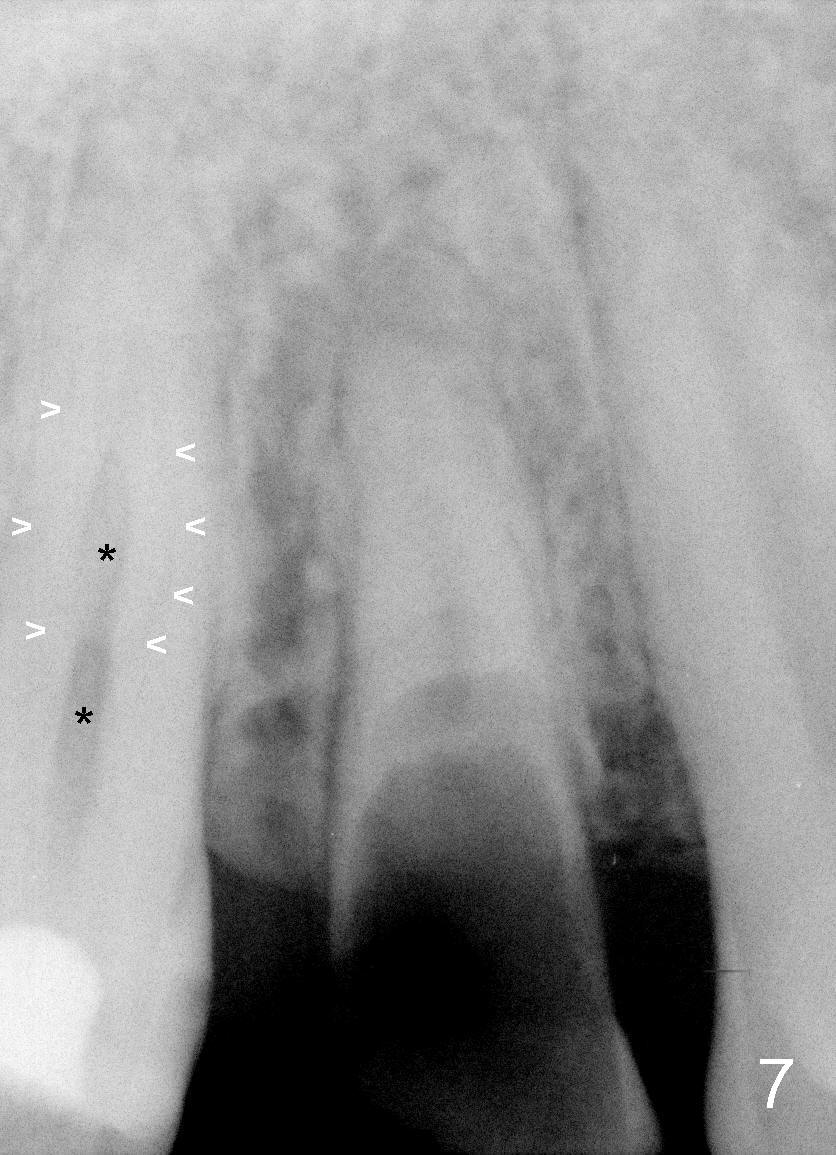

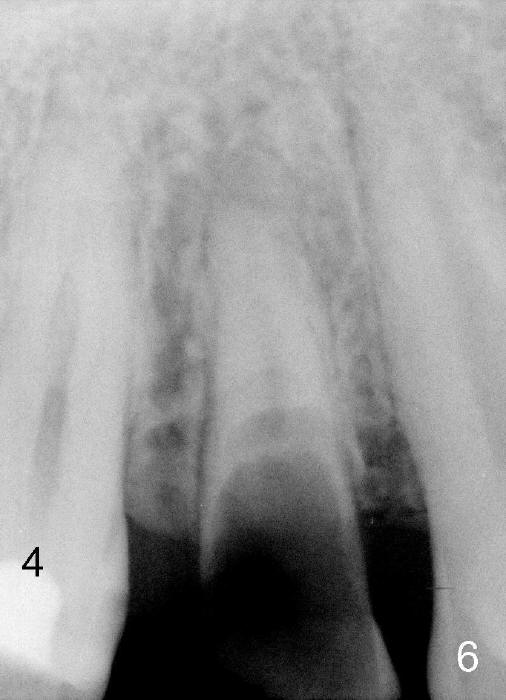

The tooth #4 has special canal morphology (Fig.6).  In addition to the middle main canal (Fig.7 *), there are 2 lateral finer curved canals (arrowheads).  The tooth #13 has the same canal patterns.

It is reasonable to assume that the roots of the tooth #5 are bifurcated.  If it is confirmed after extraction, a D implant may be more appropriate for this case (1, 2, 3).

Return to Immediate Implant for Upper Bicuspids

Xin Wei, DDS, PhD, MS 1st edition 12/21/2014, last revision 01/19/2018
