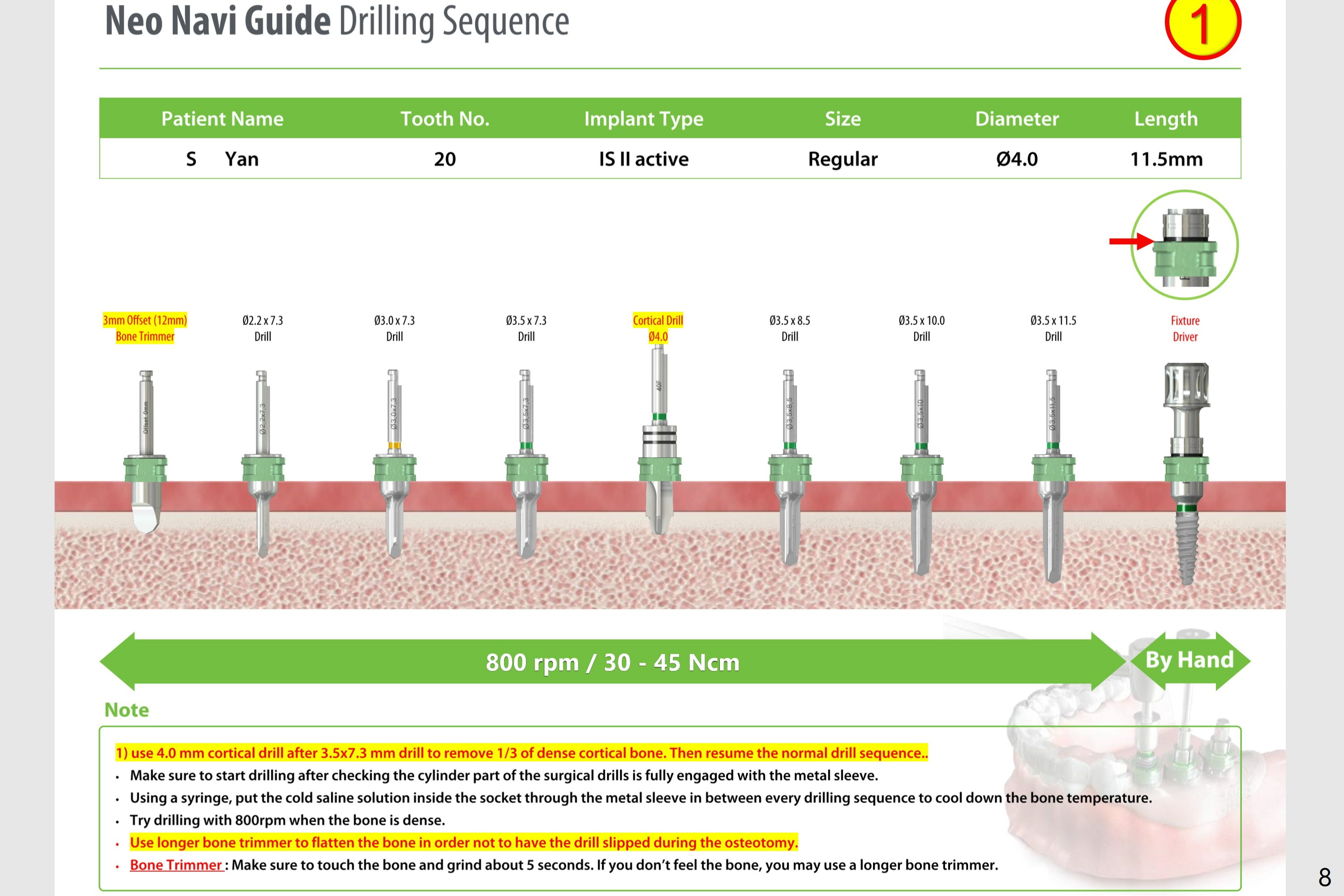

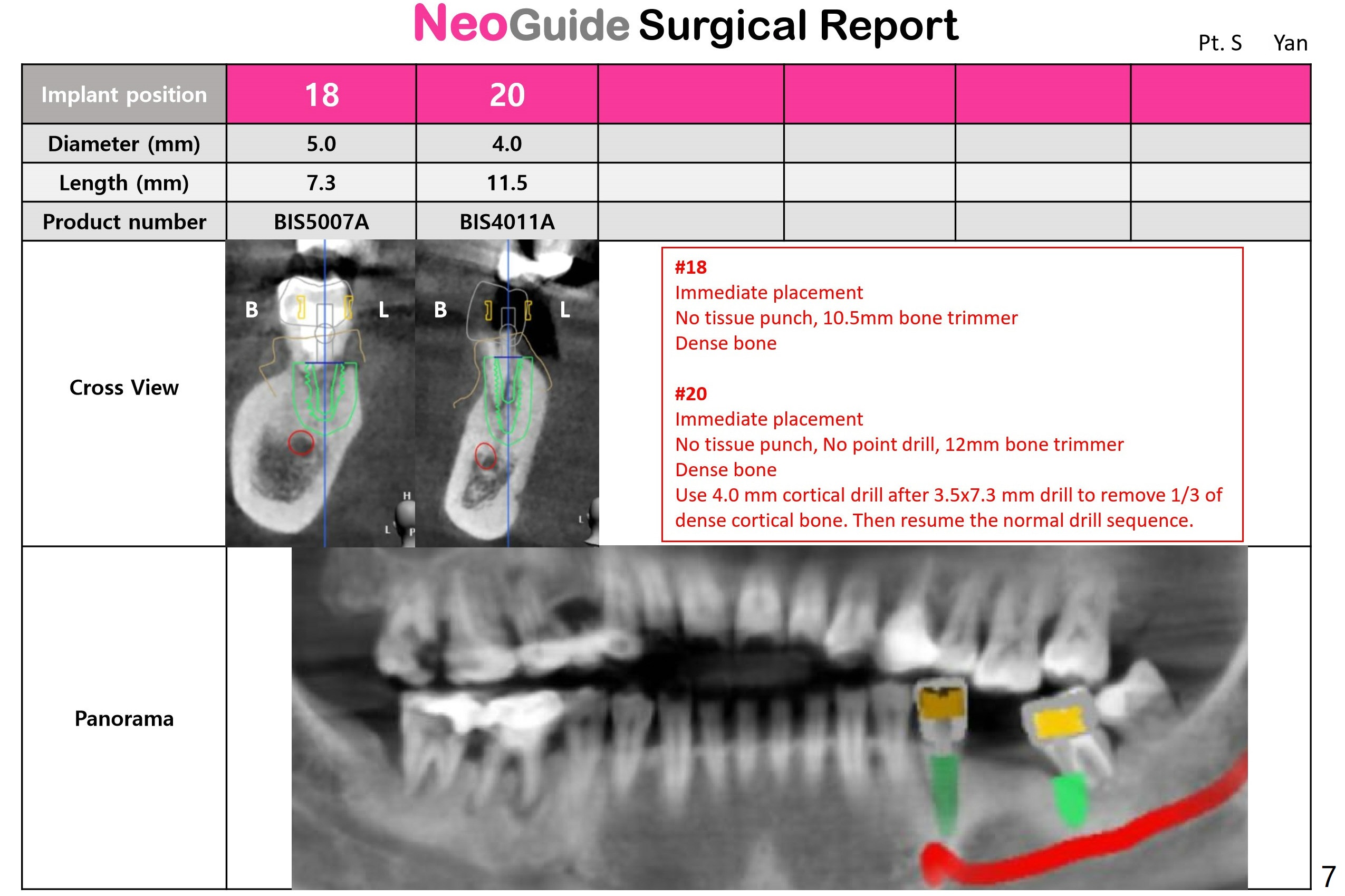

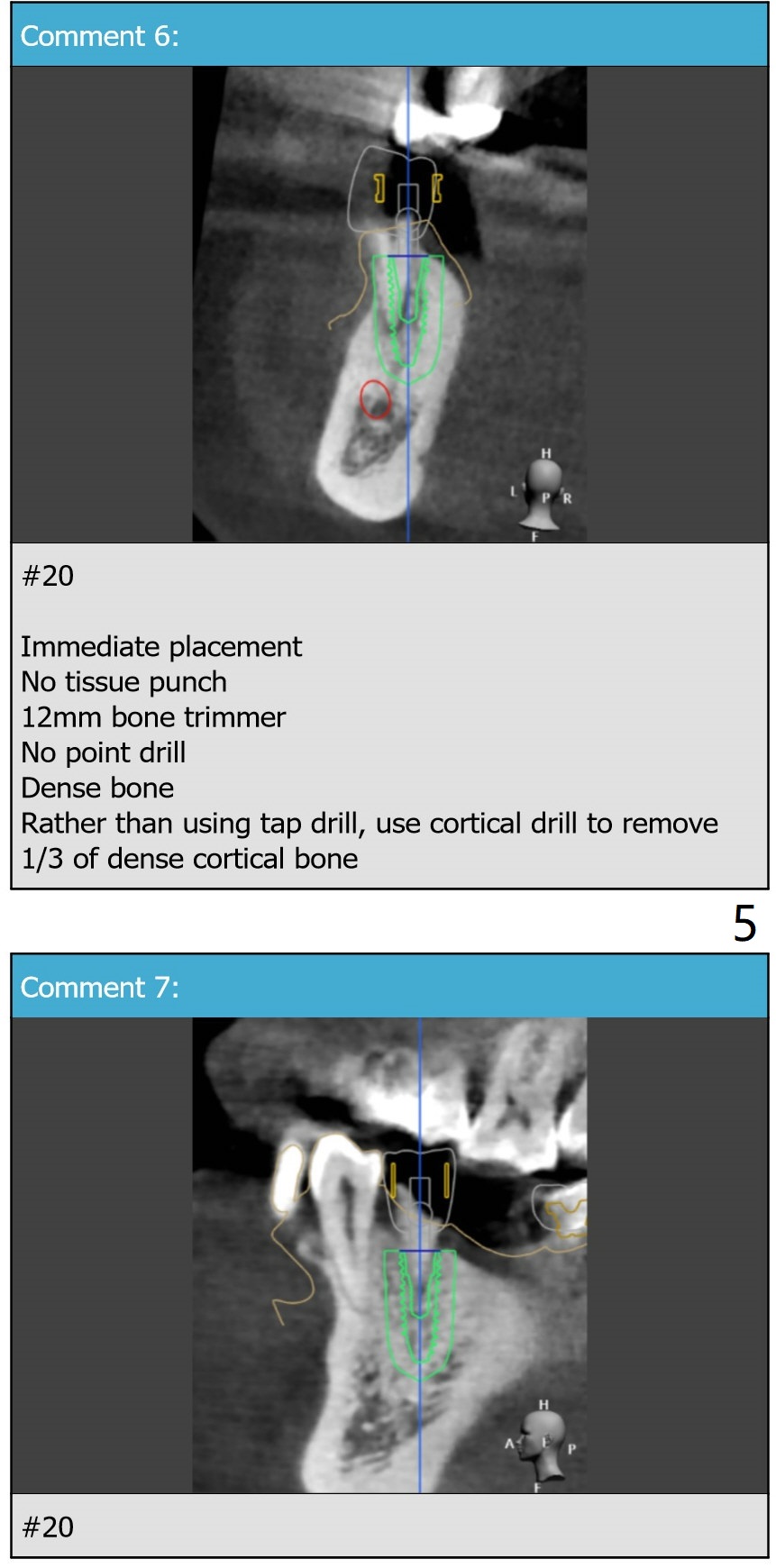

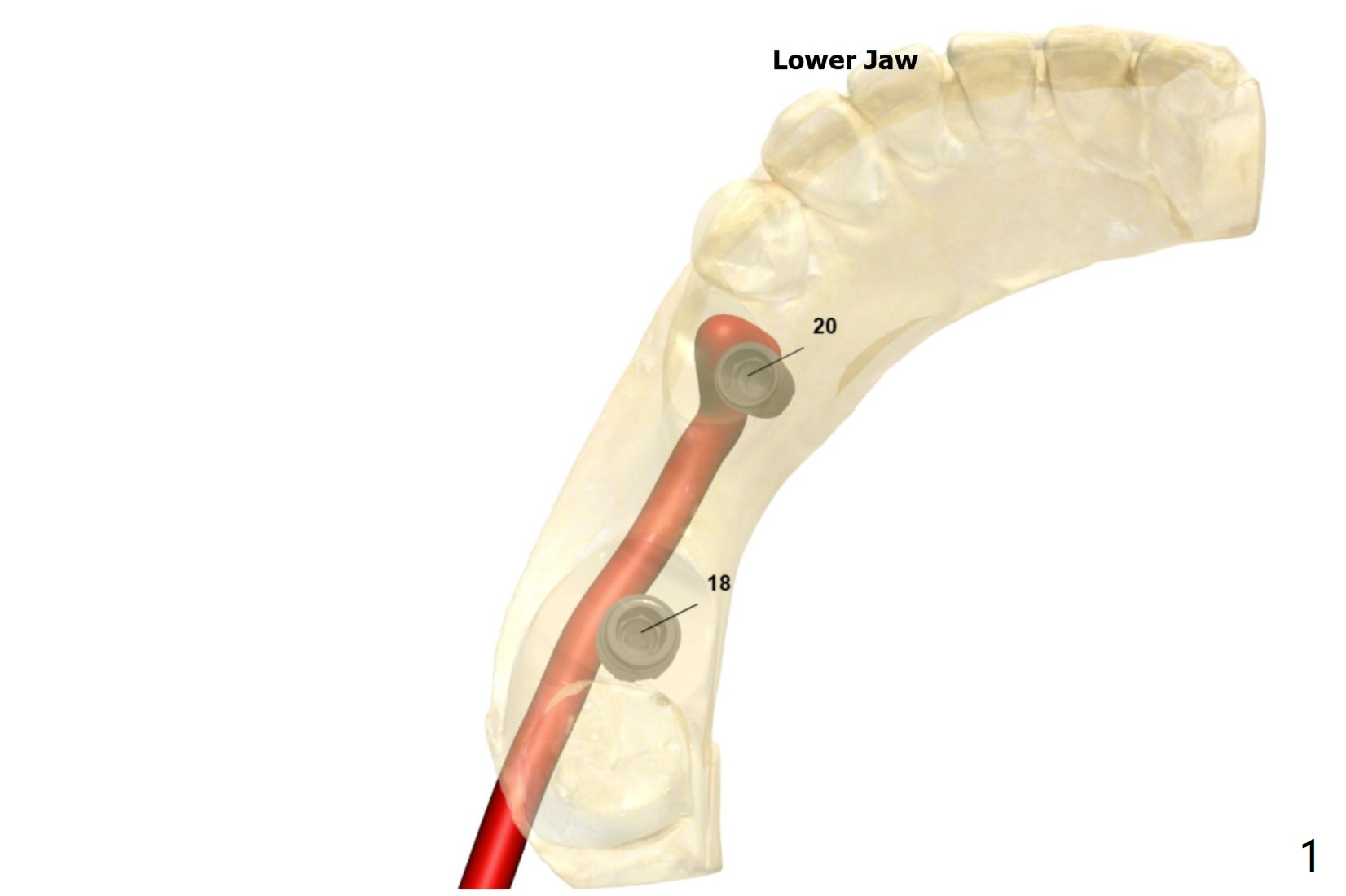

To avoid drill and implant deviation buccally due to the hard lingual plate at #20, use 4.0 mm cortical drill after 3.5x7.3 mm drill. Then resume the normal drill sequence. After implant placement, make sure that they are placed deep enough clinically and radiologically. FC
Return to
Lower
Molar Premolar
Immediate Implant,
No Deviation
Shield
Case not Using Special Drill Sequence
Xin Wei, DDS, PhD, MS 1st edition
12/11/2019, last revision
12/23/2019
