Tatum Implant for Reduced Abutment Screw Loosening

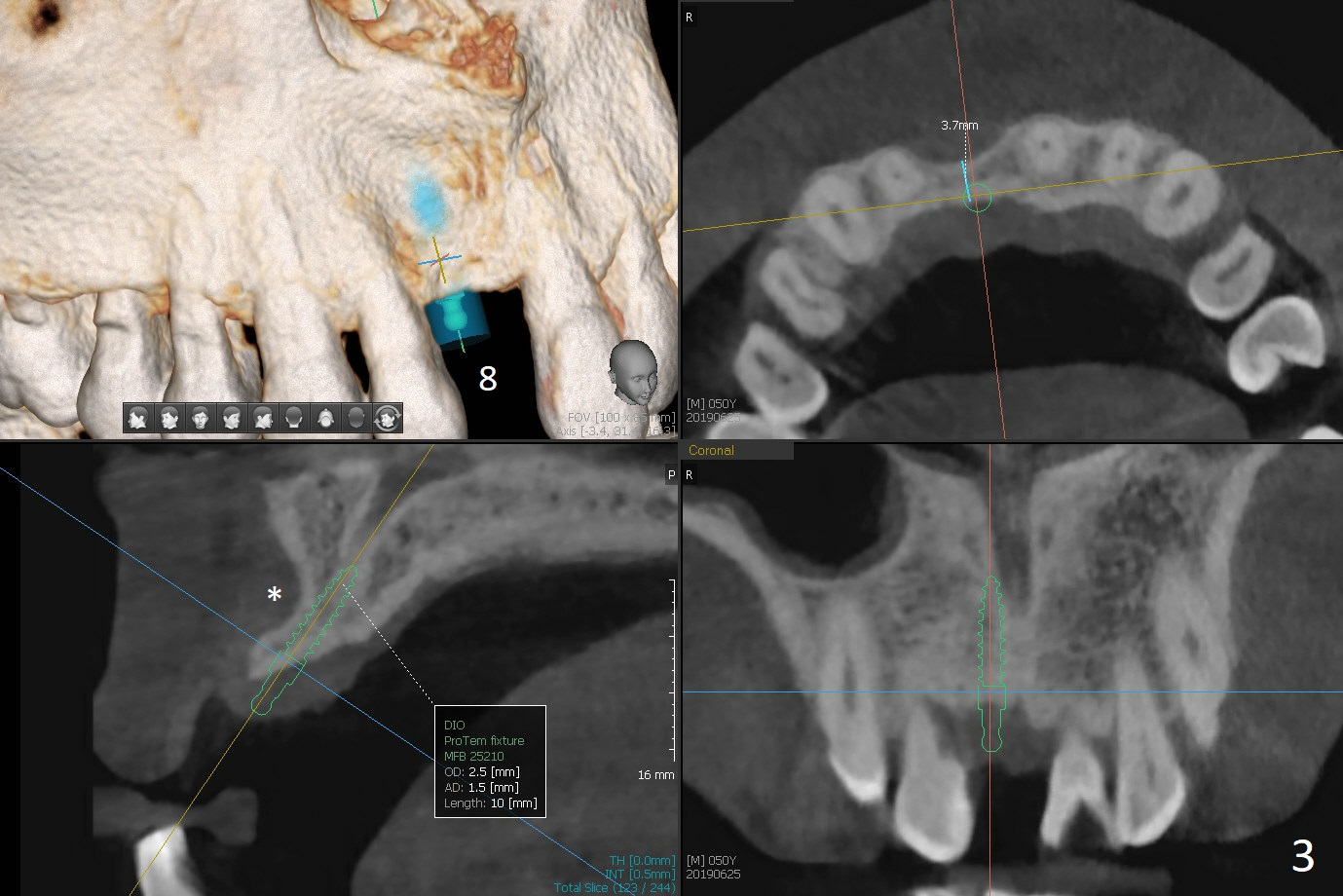

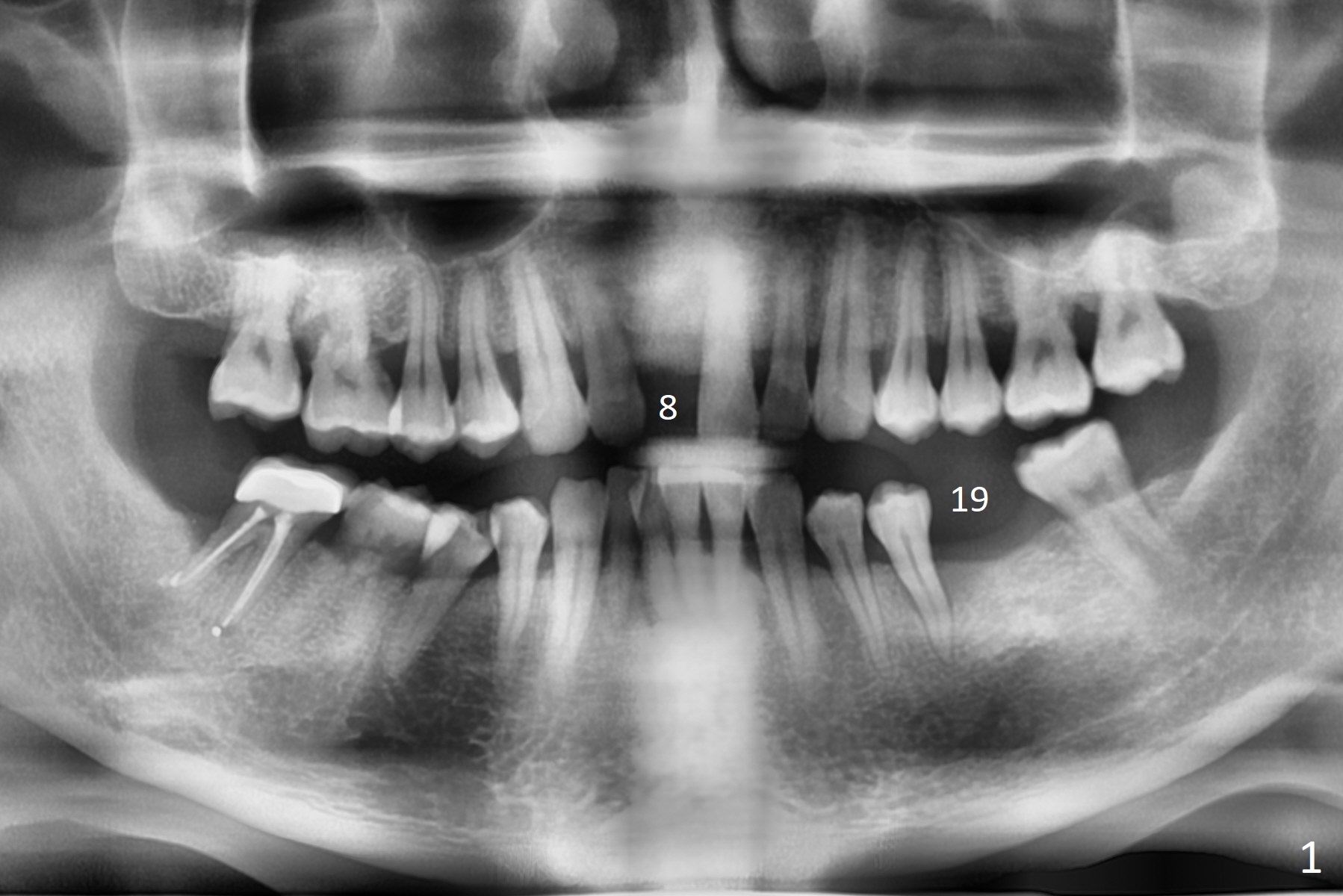

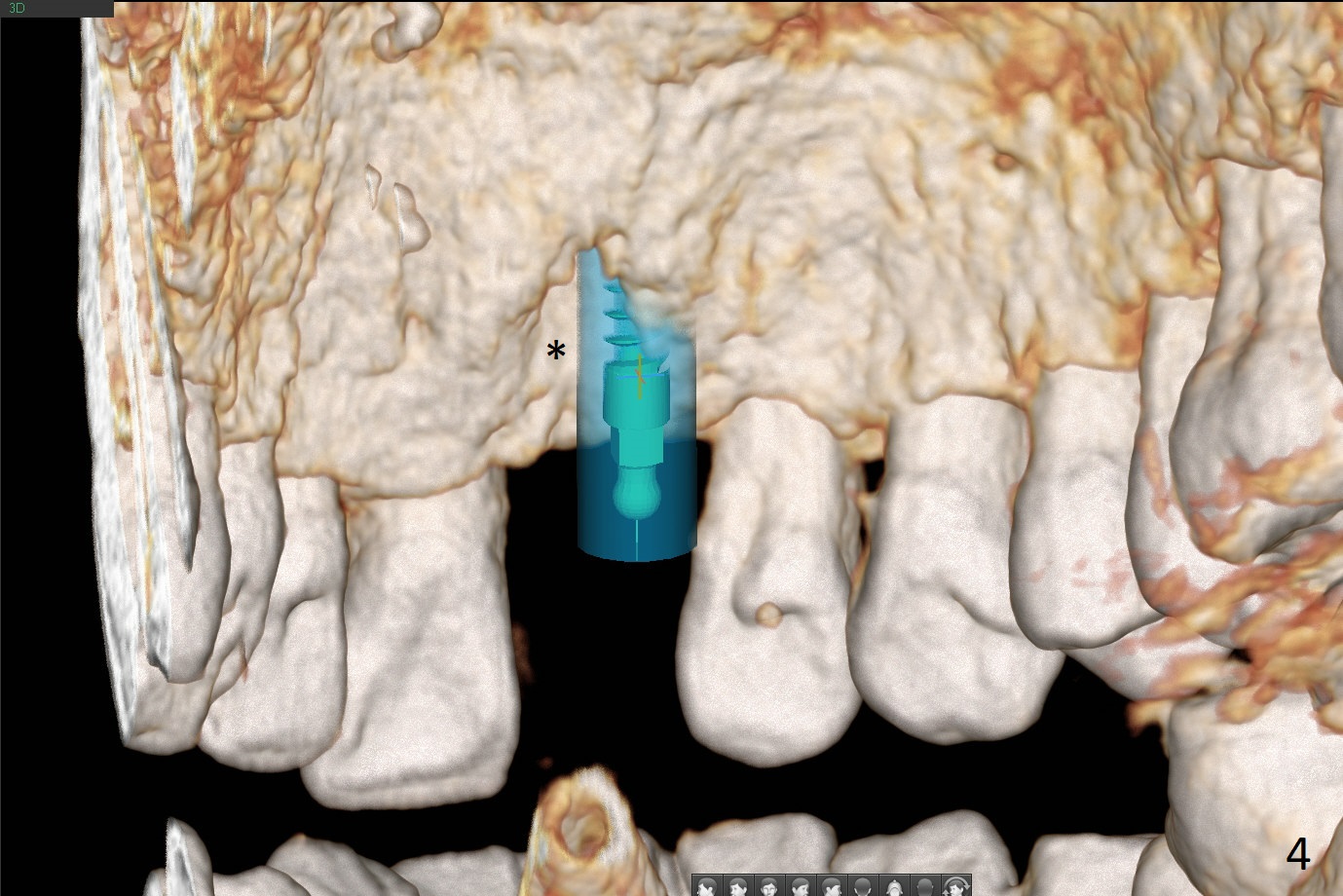

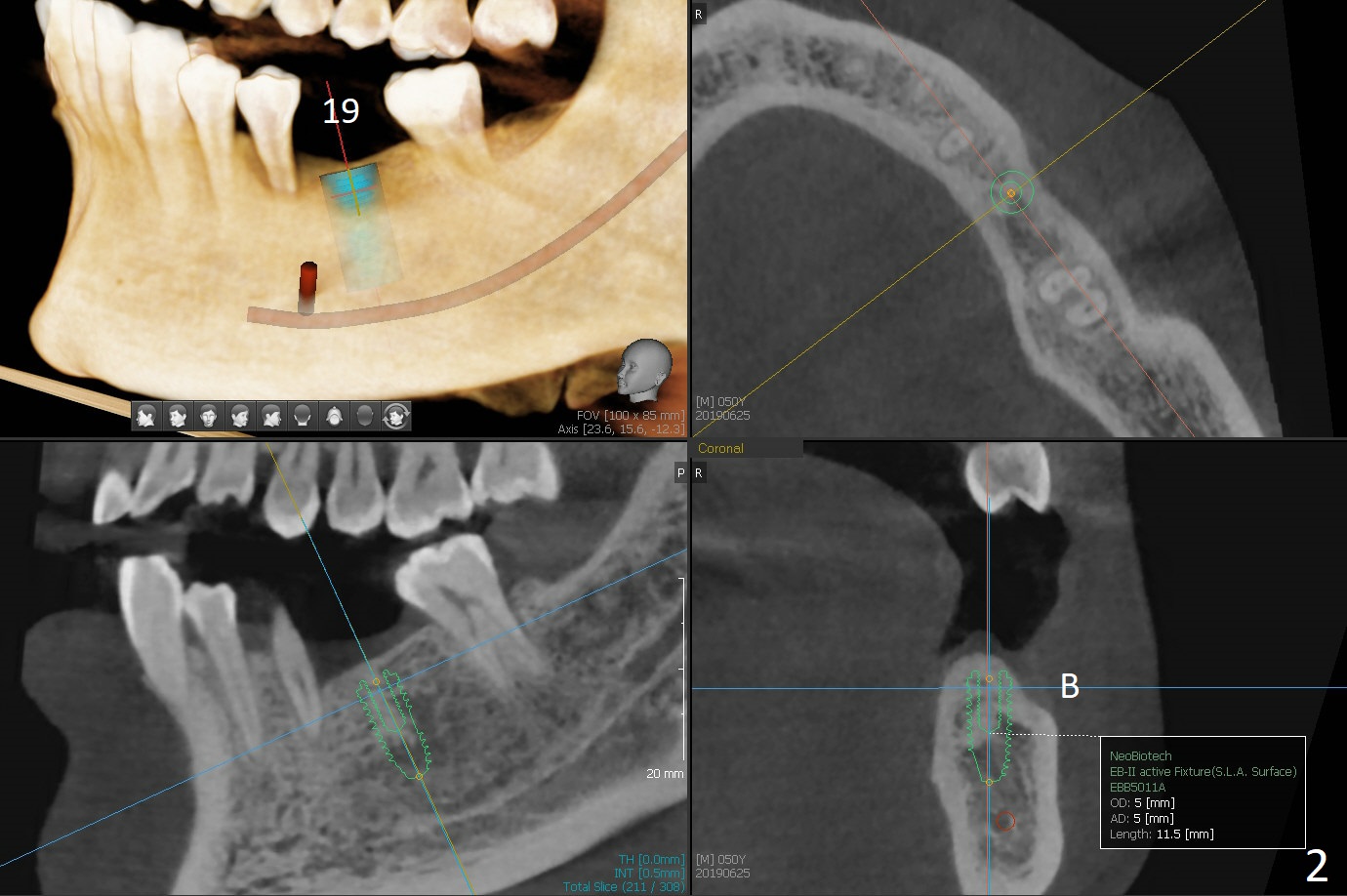

A 50-year-old man loves chewing bone and crab leg.  The tooth #19 was extracted due to fracture 1.5 years ago (Fig.1).  To reduce abutment screw loosening, IS guide will be used to create osteotomy, while a Tatum implant will be place initially with the guide (Fig.2).  There appears no screw loosening associated with Tatum implants.  The ridge at #8 is atrophic; a 2.5x10 mm Mini-implant will be placed palatal (Fig.3).  The mesiopalatal defect (Fig.4 (lingual view) *) will be bone grafted after implant placement.  Incision will be made after the 1st drill for access.  The guide will be made with gingival clearance.  A piece of 6-month membrane will be cut with a hole buccally to cover the bone graft and slide through the implant.

Return to Lower Molar Immediate Implant, Trajectory II
Xin Wei, DDS, PhD, MS 1st edition 06/25/2019, last revision 08/08/2019
