2 mm Bone

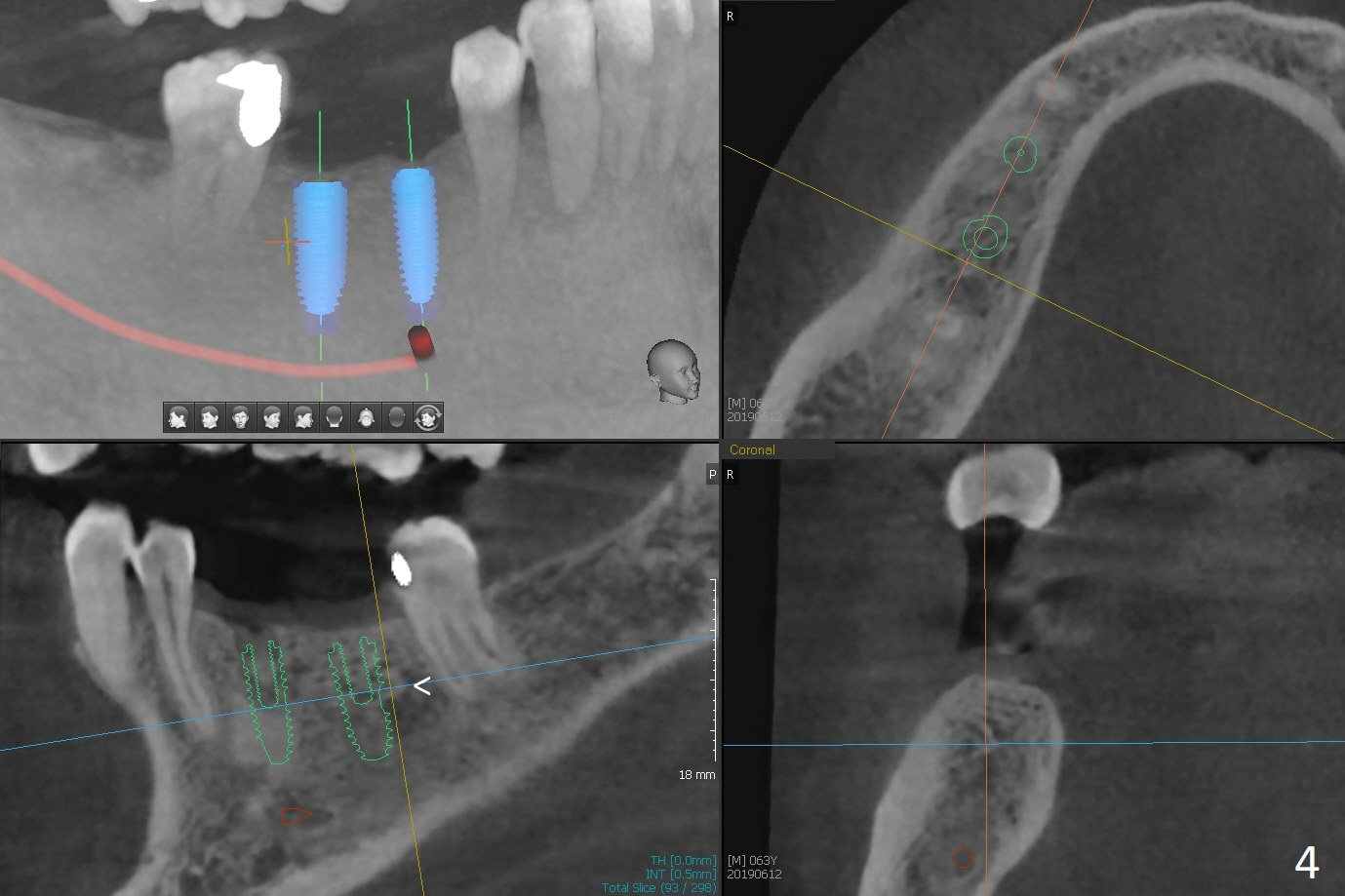

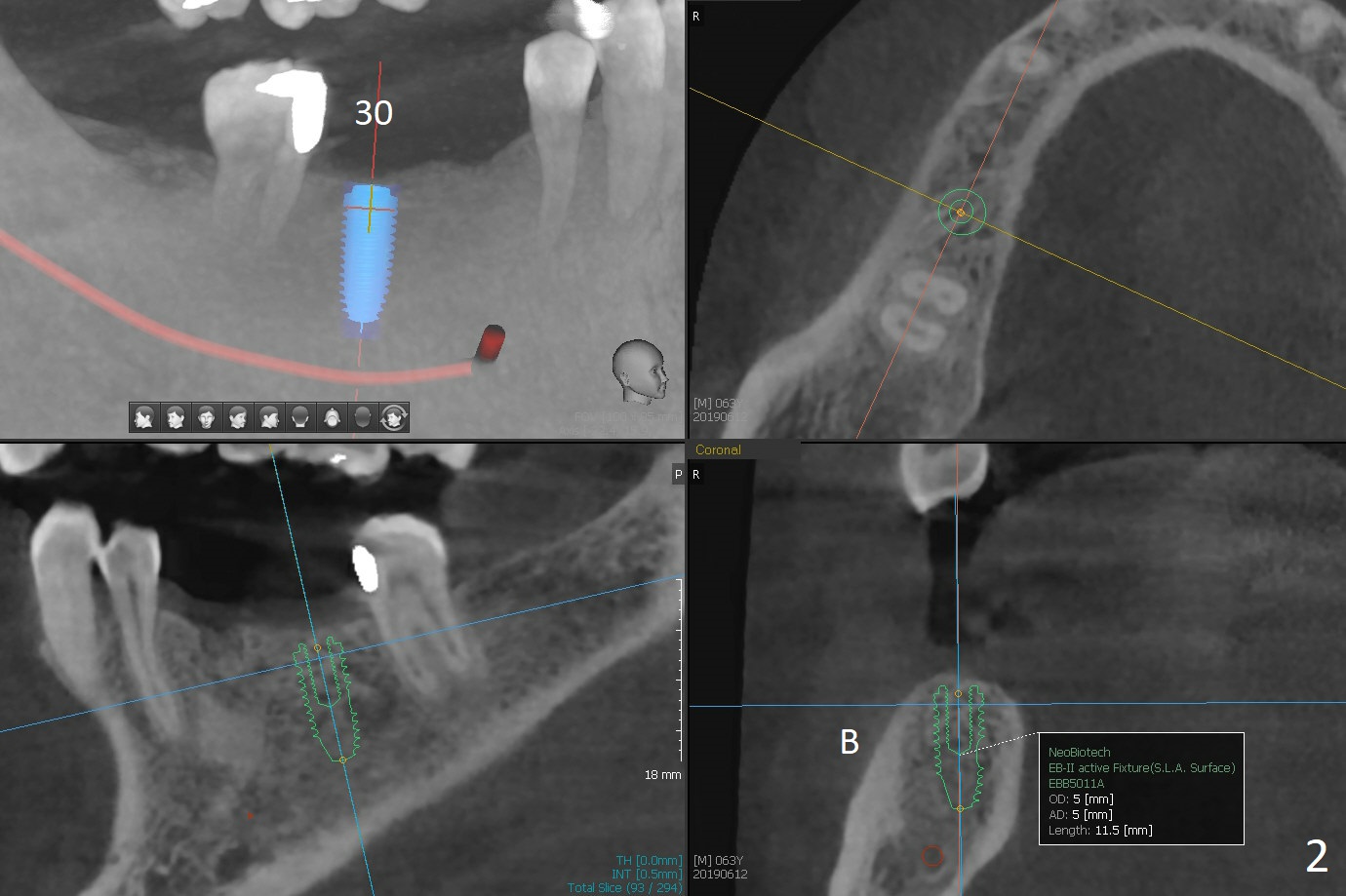

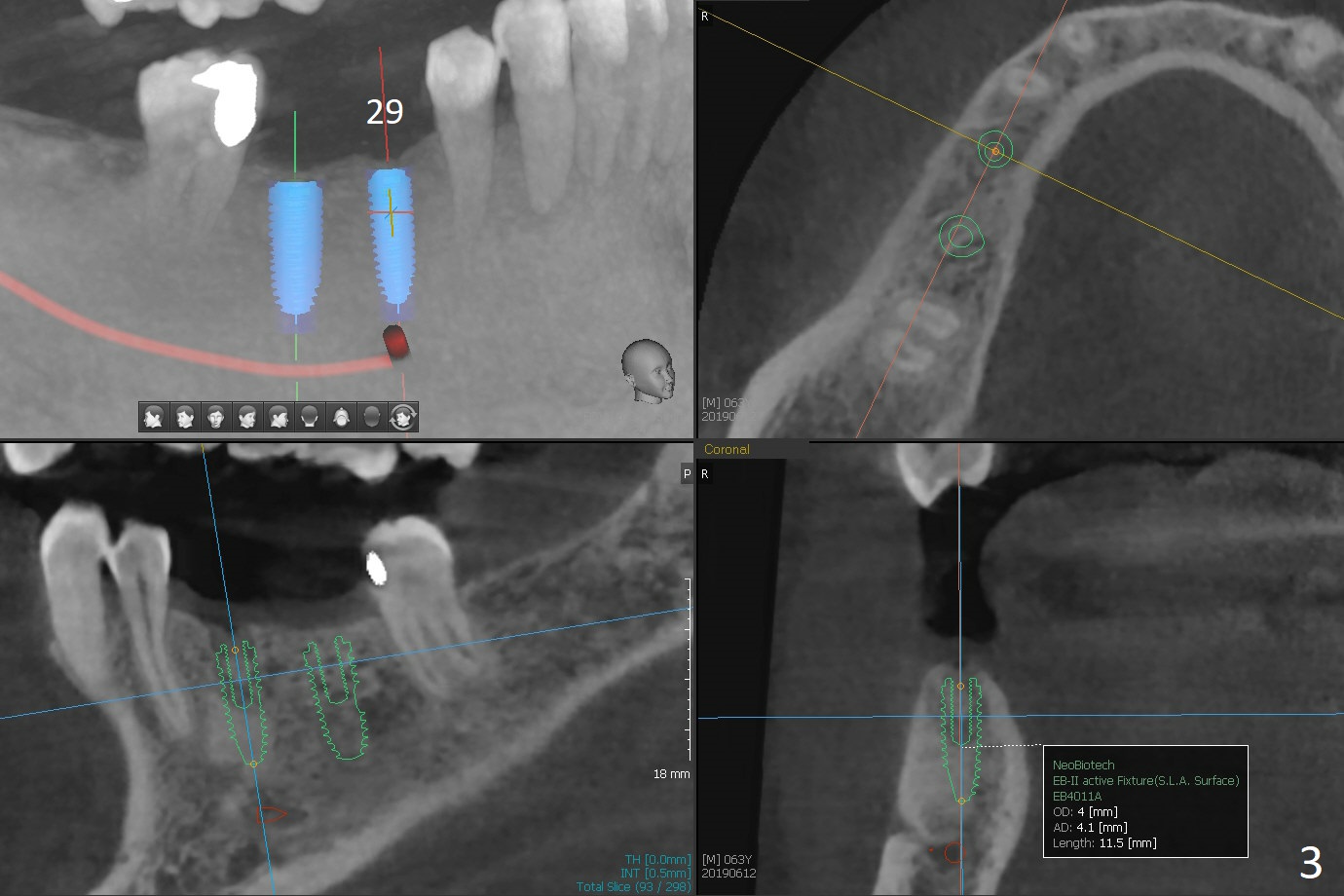

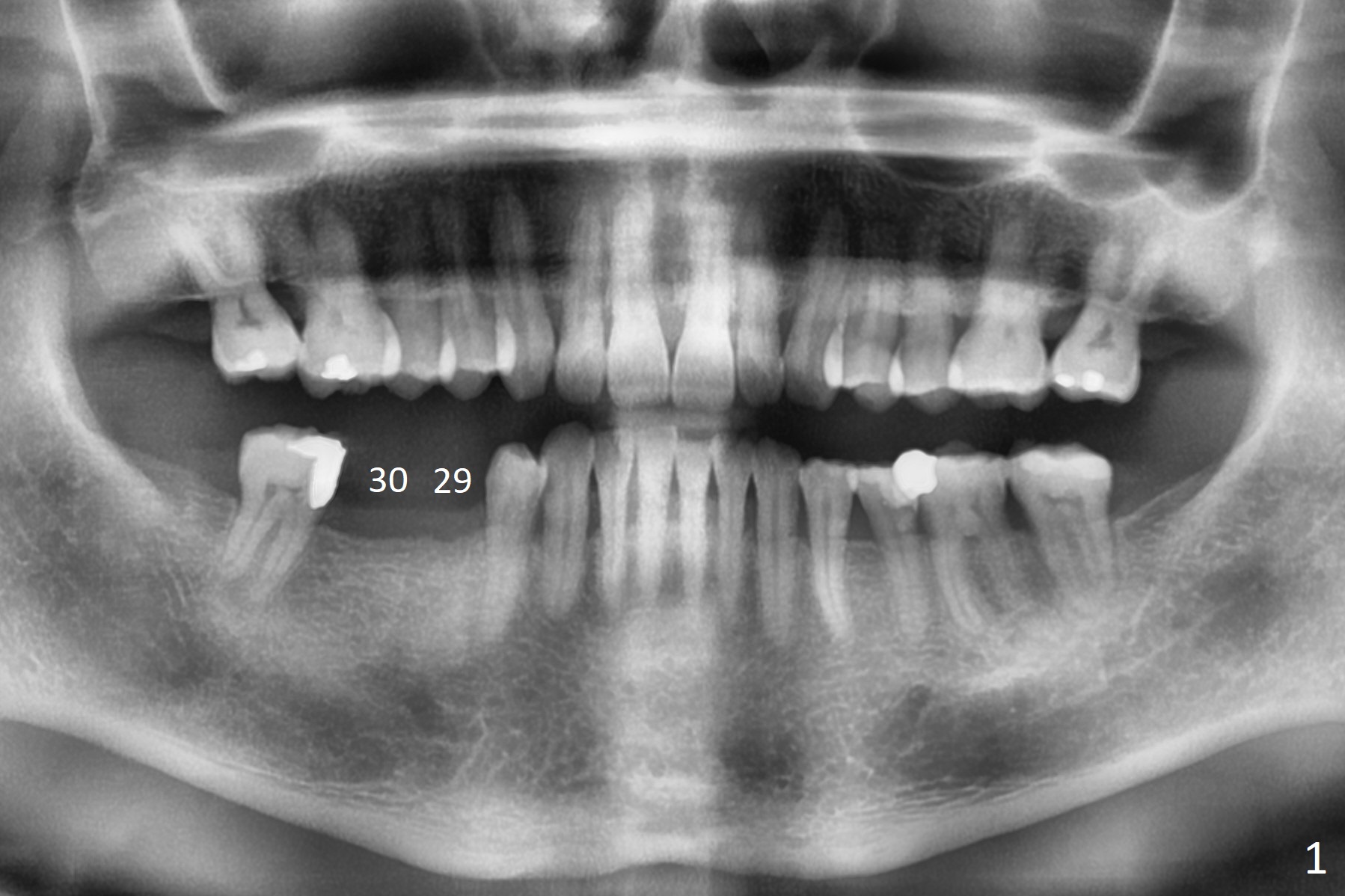

A 63-year-old man requests implants to replace a flipper at #29 and 30 (Fig.1).  If torque is >25 Ncm for each implant (Fig.2,3 (2 mm bone buccolingually)), abutments will be placed immediately (using planning kit) for splinted provisional.  Take photos for the flipper for a good bye party.  Composite will be placed at #31 for MO leakage.  Remove a small piece of residual root distal to #30 implant with curettage after osteotomy (Fig.4 <).

Return to Lower Molar Premolar Immediate Implant, Trajectory
Xin Wei, DDS, PhD, MS 1st edition 06/12/2019, last revision 07/04/2019
