Exostosis

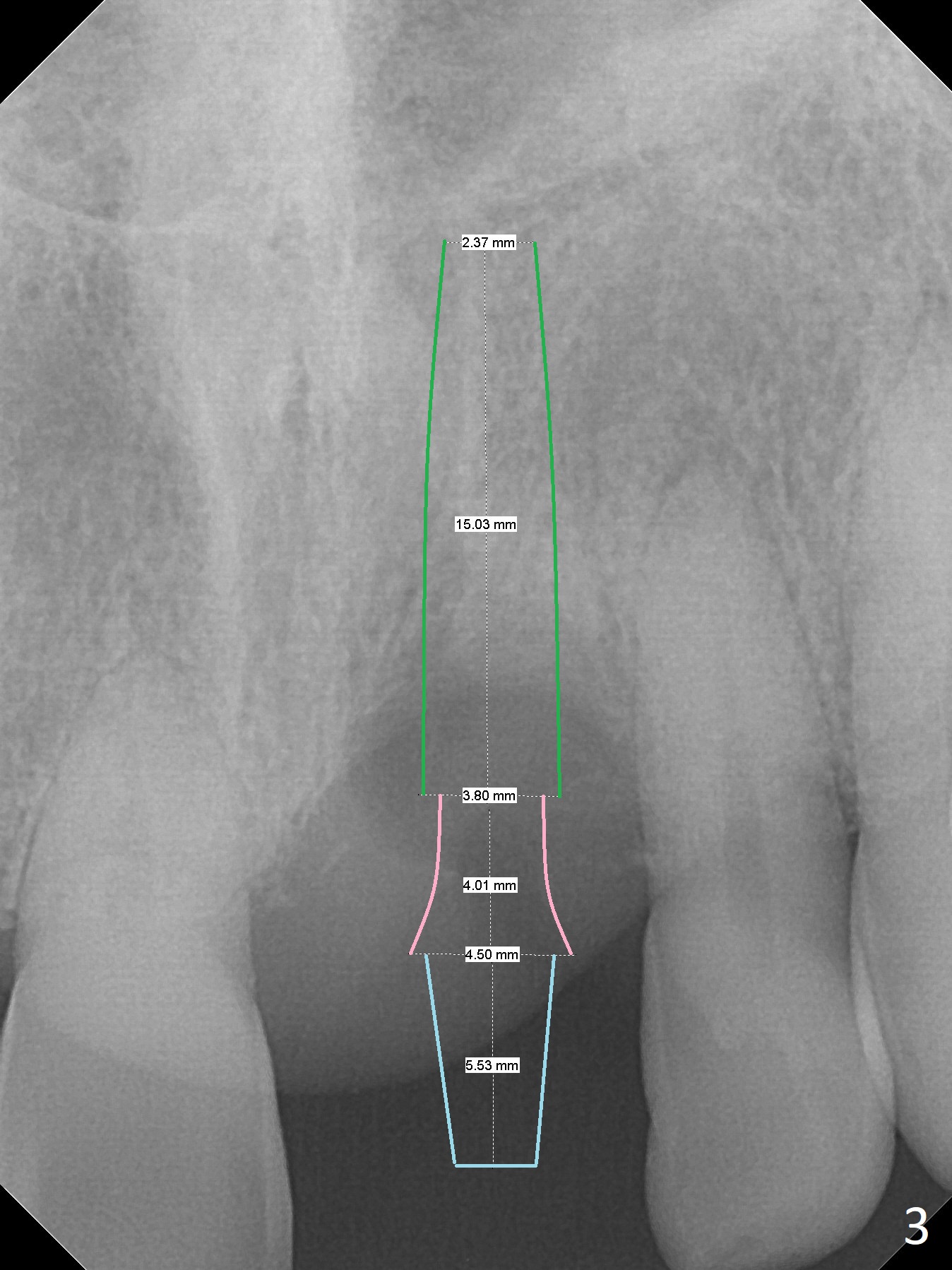

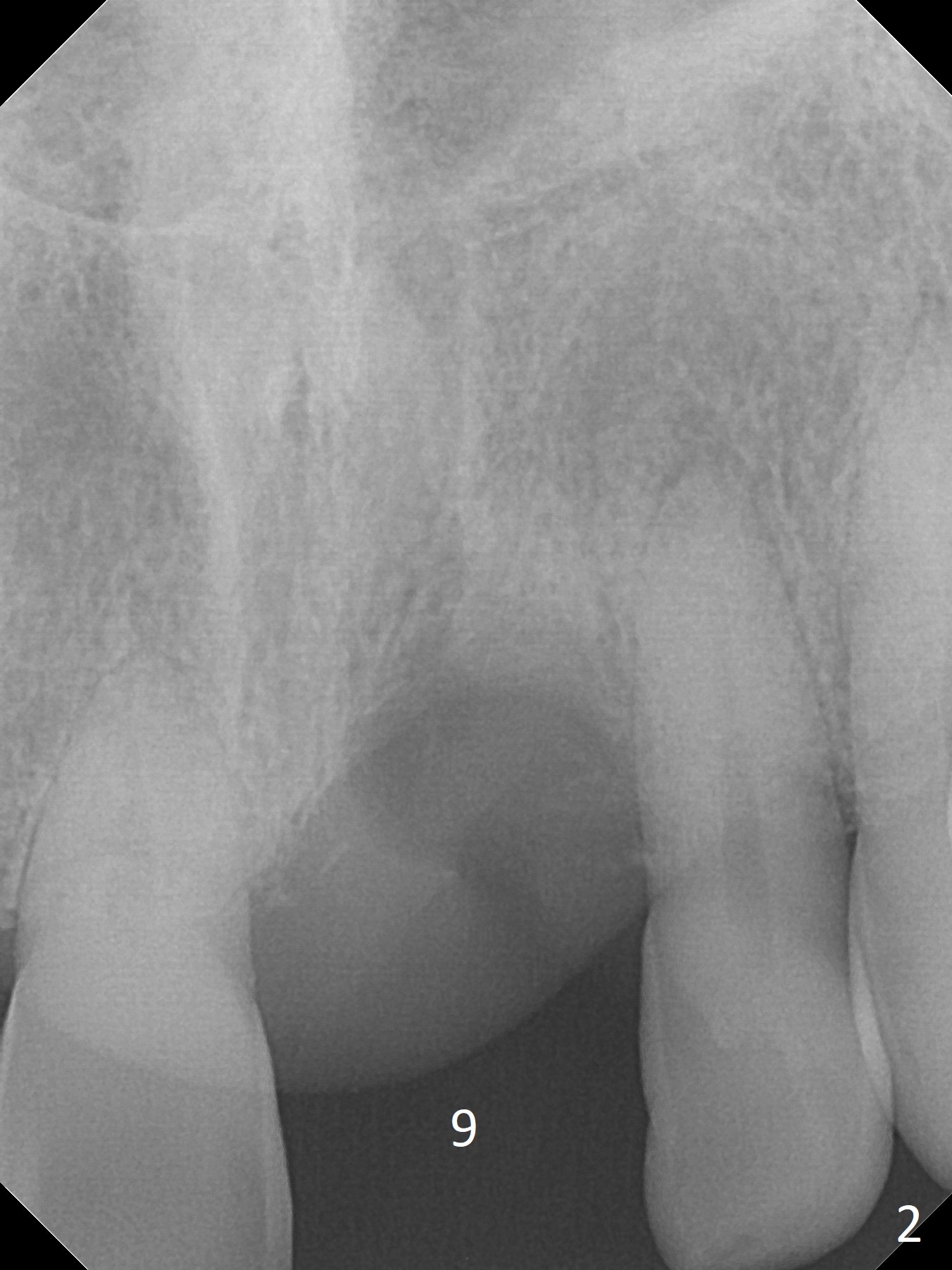

A 57-year-old man has lost the tooth #9 for 1-2 weeks (Fig.1,2).  Although the buccal gingiva is recessive (cosmetically compromised), the middle and apical one thirds of the buccal plate appear to be minimally atrophic because of exostosis (Fig.1 *).  An implant will be placed as palatal as possible (Fig.3).  Use bone gauge to measure bone width.  If the alveolus is atrophic, either use 3.5x13 mm implant or 1-piece (DIO or Tatum if there is a angulation problem).  Prepare Planning Kit if IS implant is used.  Adjust the opposing implant FPD, if needed.

Return to Upper Incisor Immediate Implant, Armaments

Xin Wei, DDS, PhD, MS 1st edition 11/20/2017, last revision 08/13/2018
