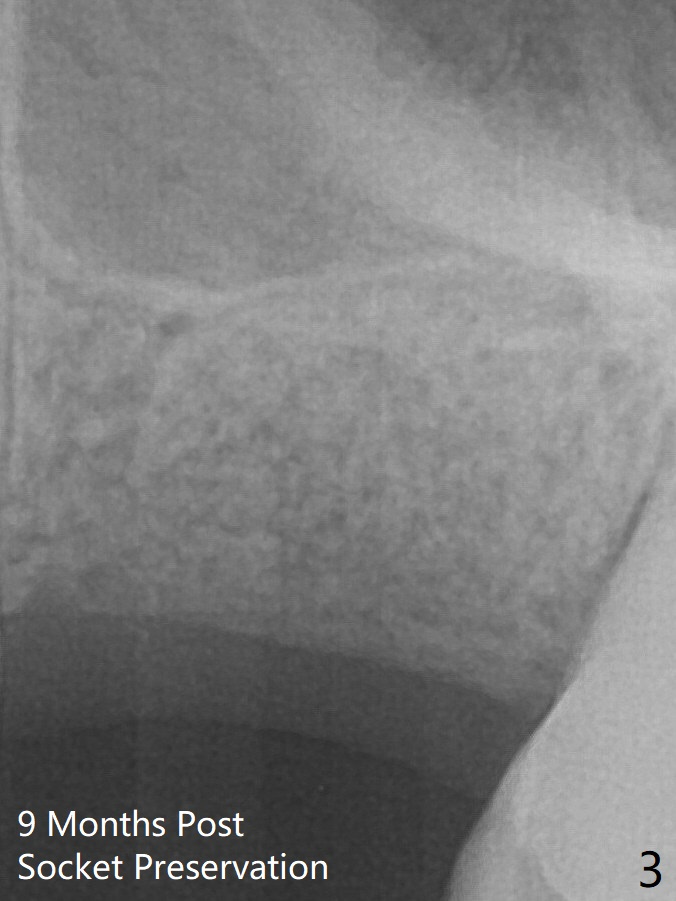

The patient returns 9 months post extraction/socket preservation (Fig.3).  The ridge is wide at #14 11 months post socket preservation.  Access and bone expansion (BEB) starts with Magic Split, followed by Magic Expanders 3.0, 3.8 and 4.3 mm from 8 to 9 mm for sinus lift.  No bone is removed for osteotomy.  Instead bone condensation occurs.  After placement of a 4.5x11 mm dummy FC implant (Fig.1 with sinus lift), a 5x9 mm Magicore is placed with >55 Ncm with cuff margin at the gingival margin (Fig.2); a 5.5x3 mm solid abutment tries in.  There is no occlusal clearance; trimming of the solid abutment will be needed.

From Magic Split to Magicore Socket Preservation Xin Wei, DDS, PhD, MS 1st edition 04/12/2018, last revision 09/22/2018
