Sinus Lift with Bone Expanders

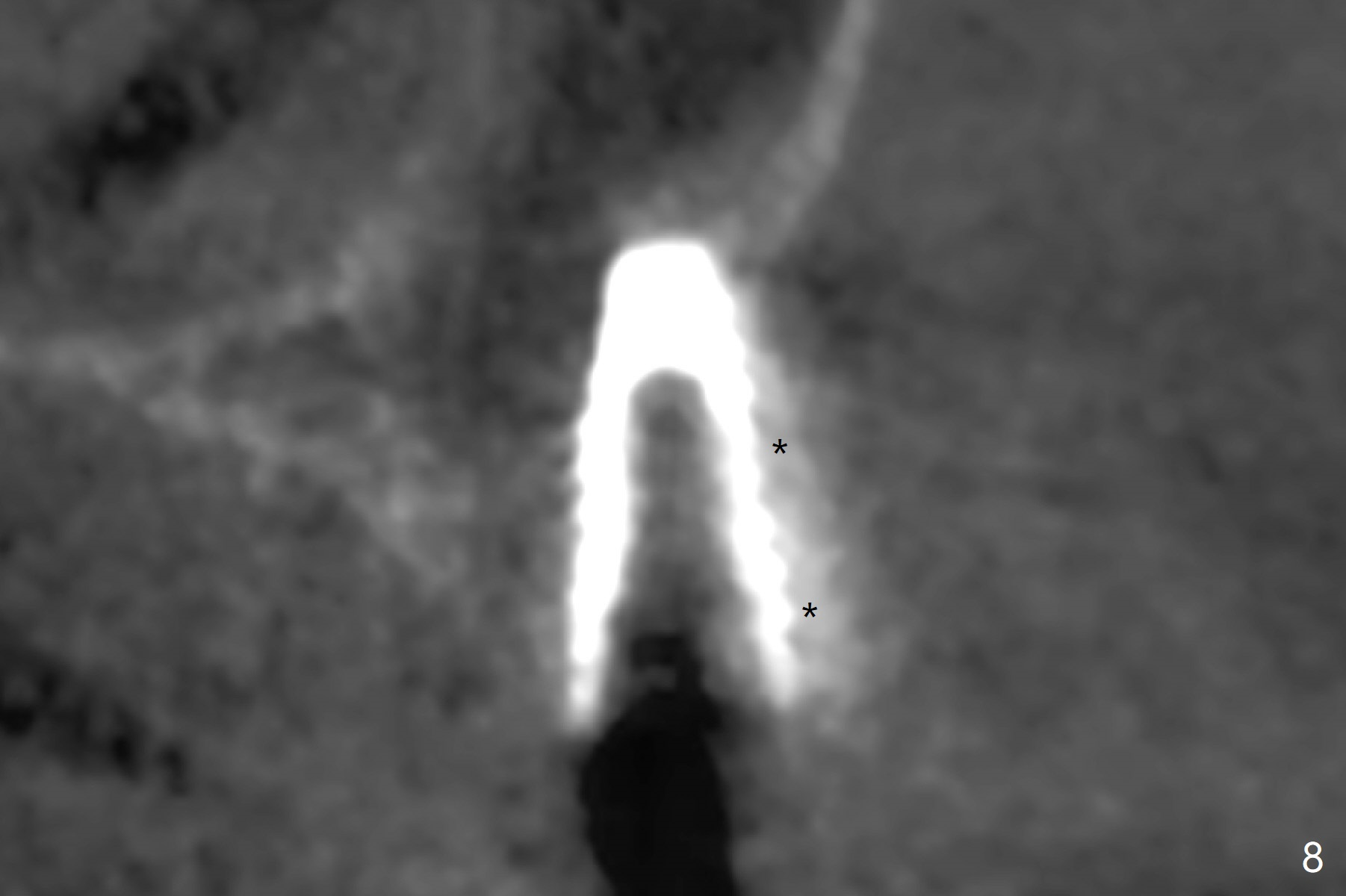

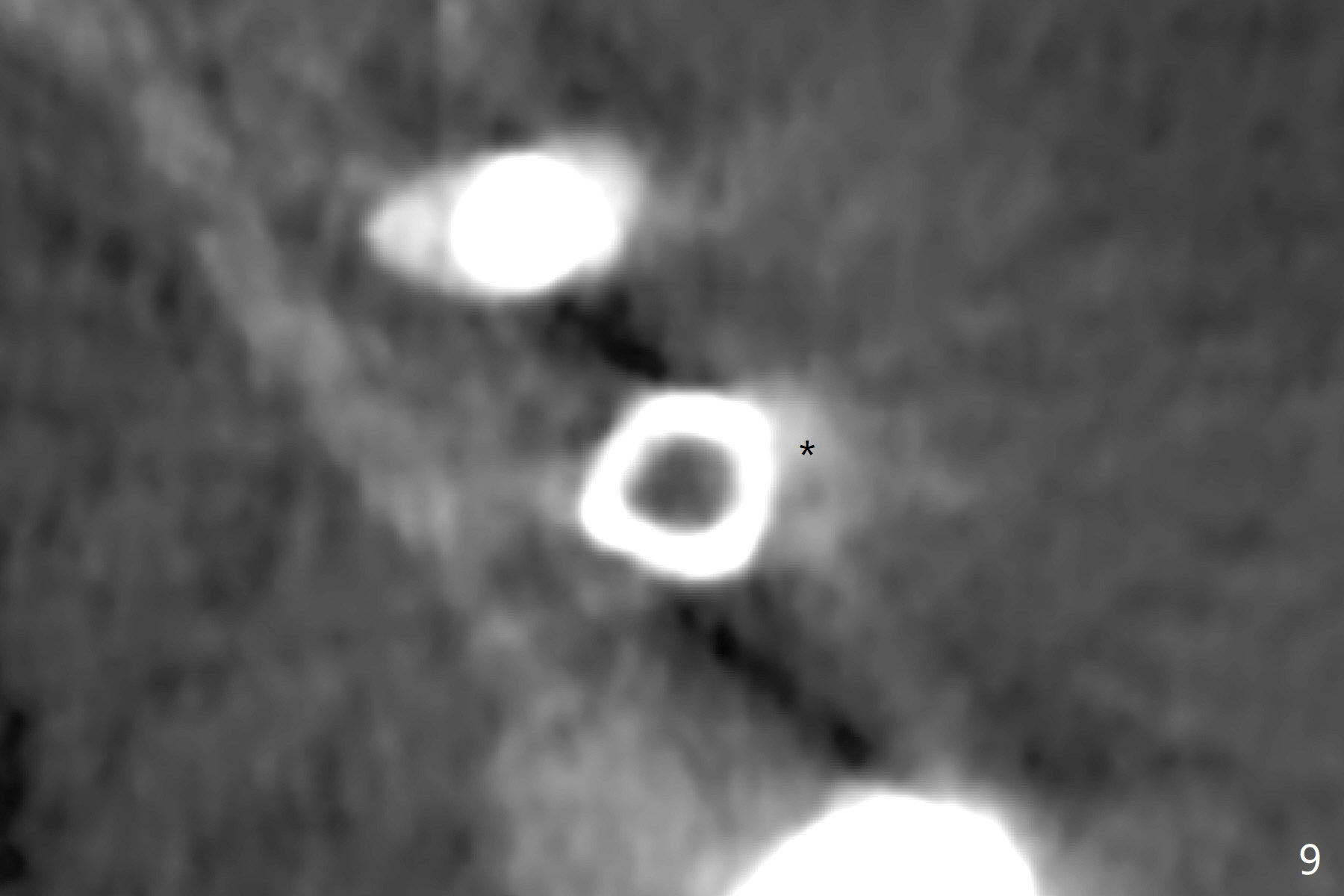

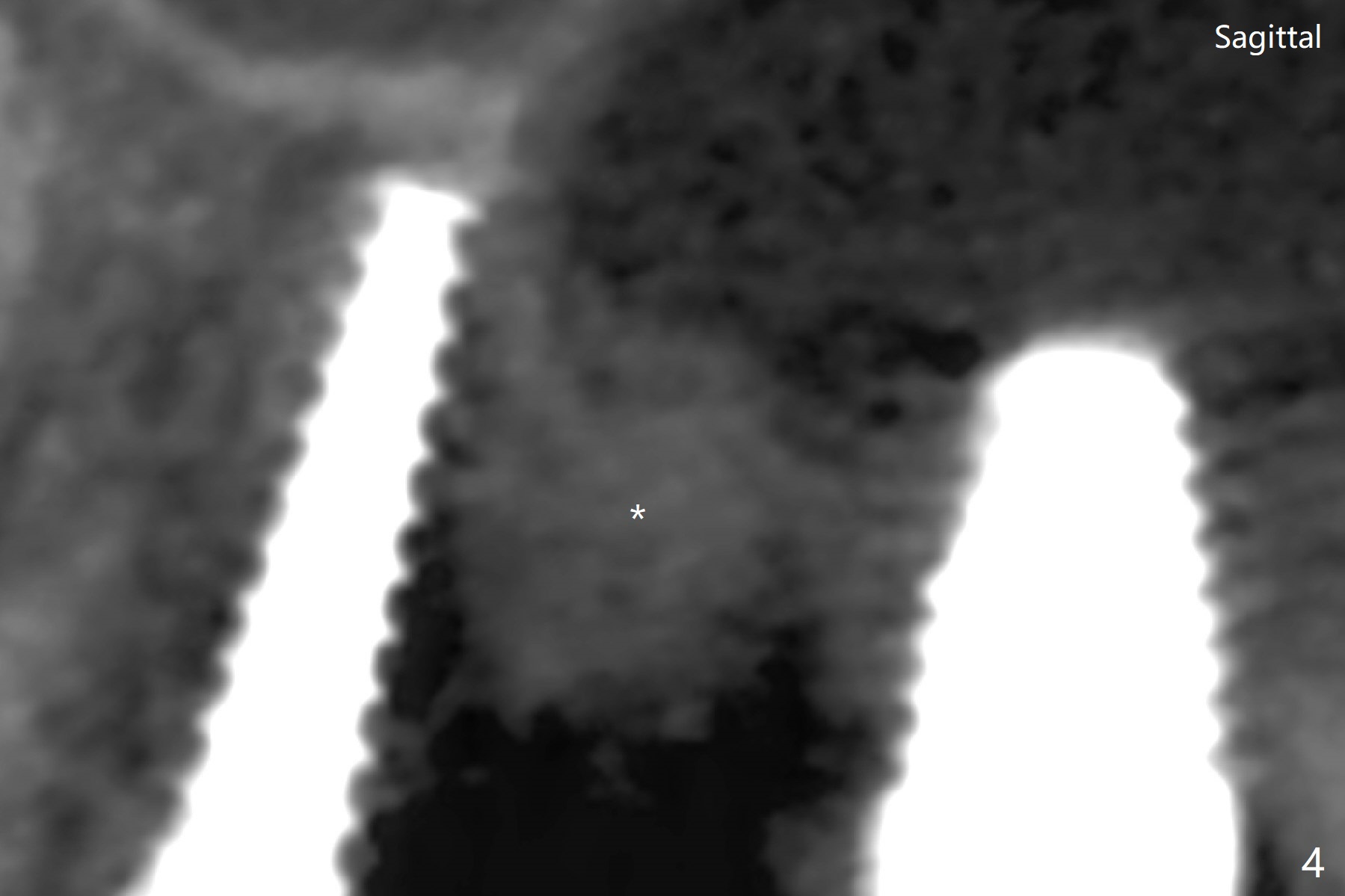

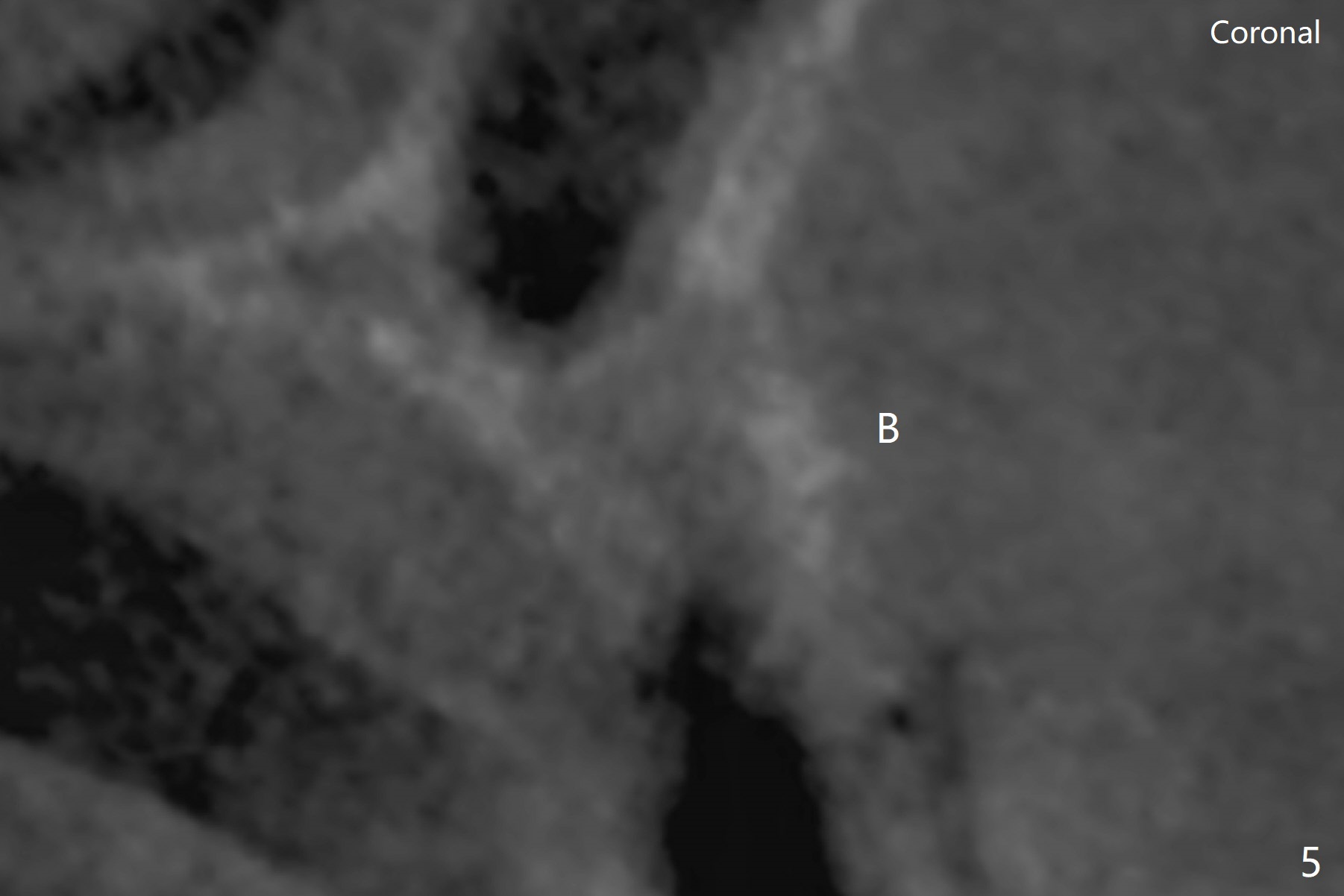

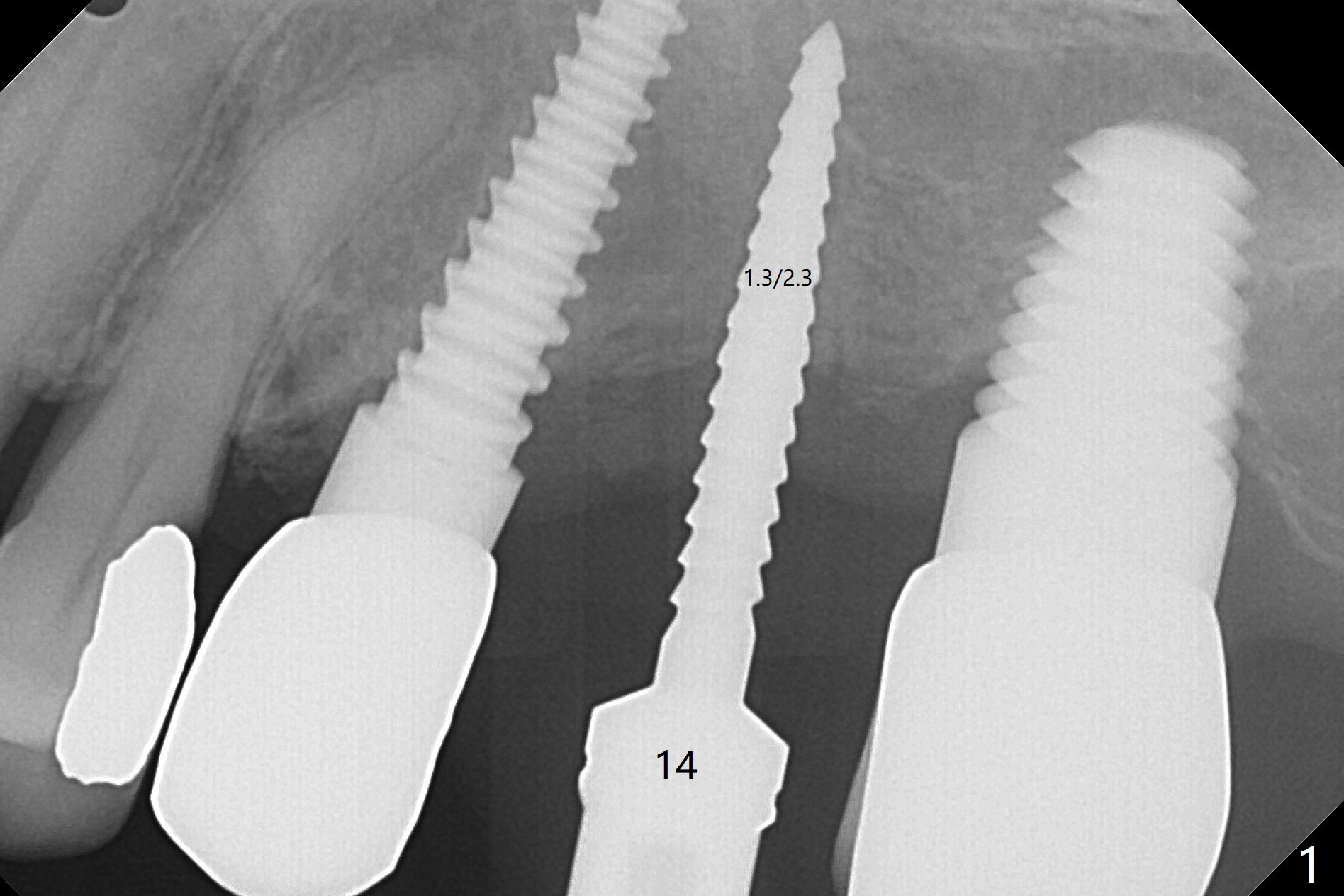

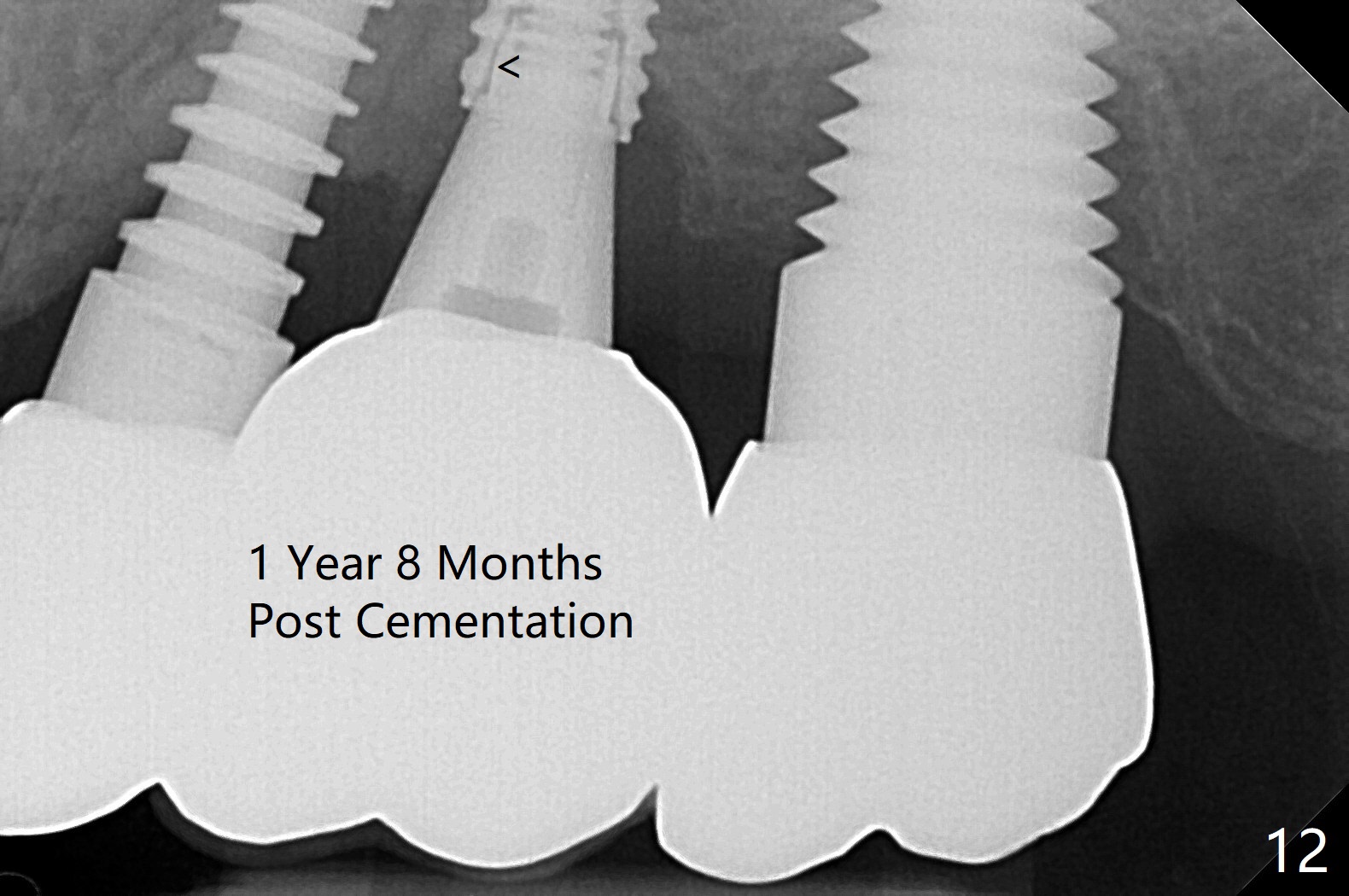

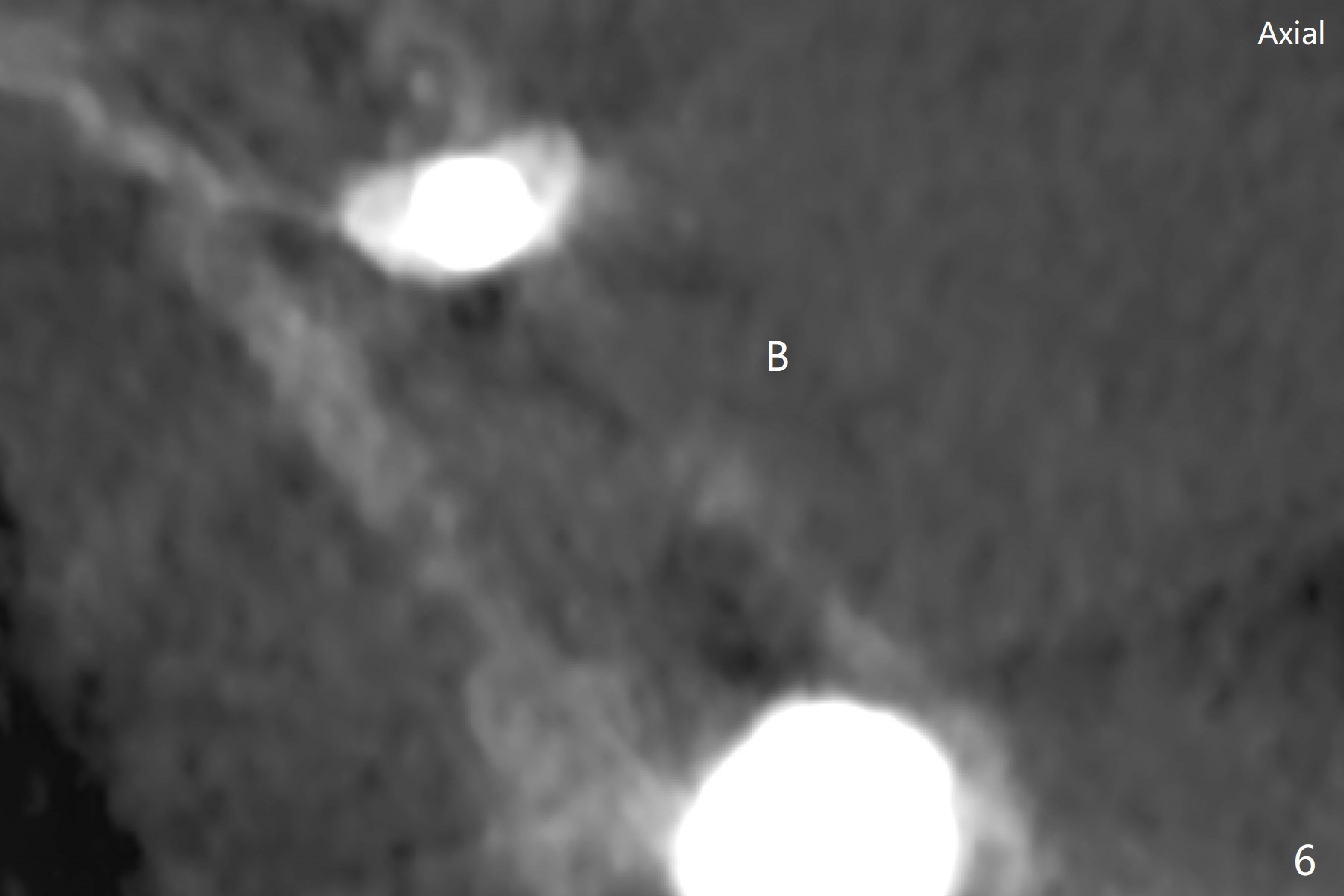

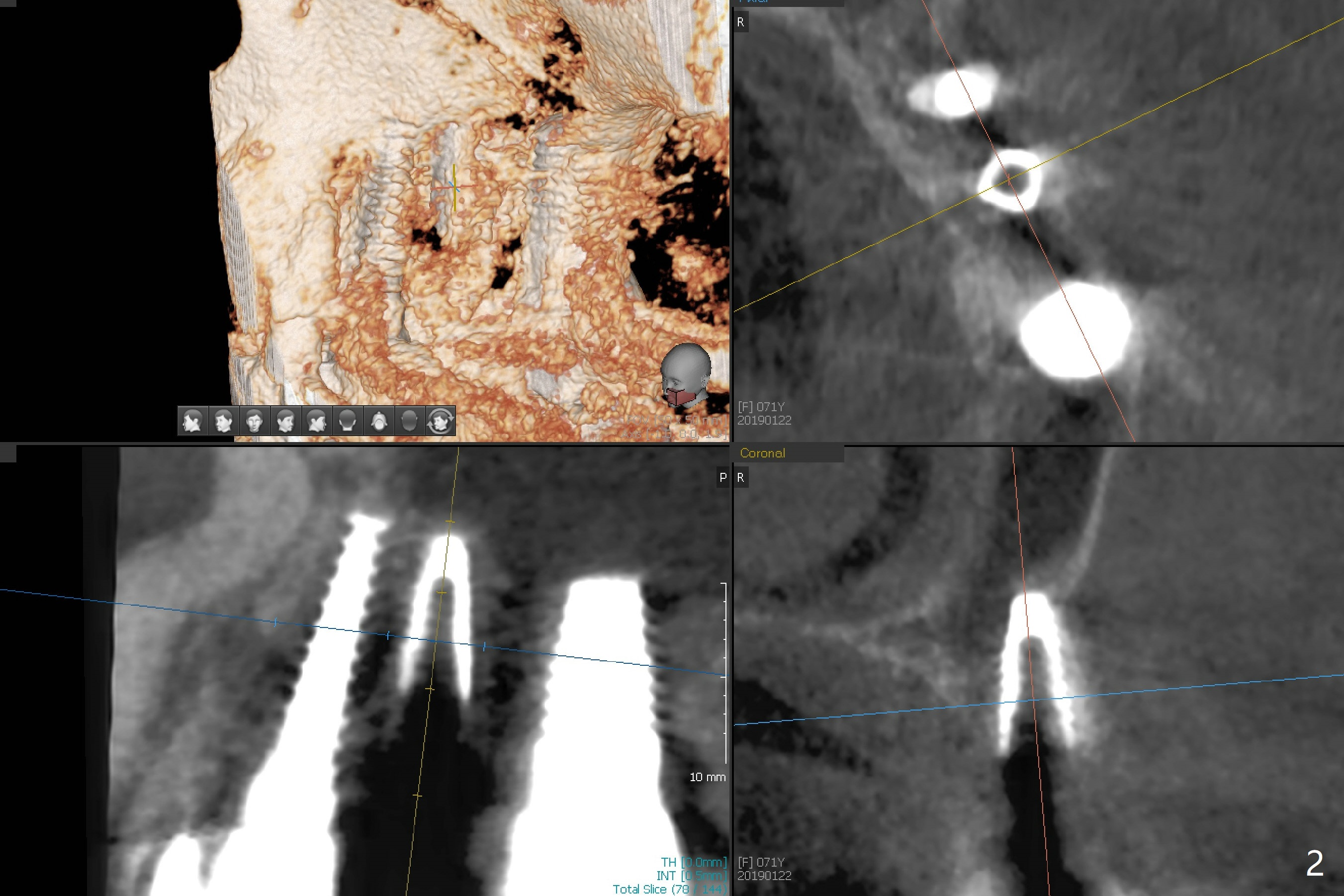

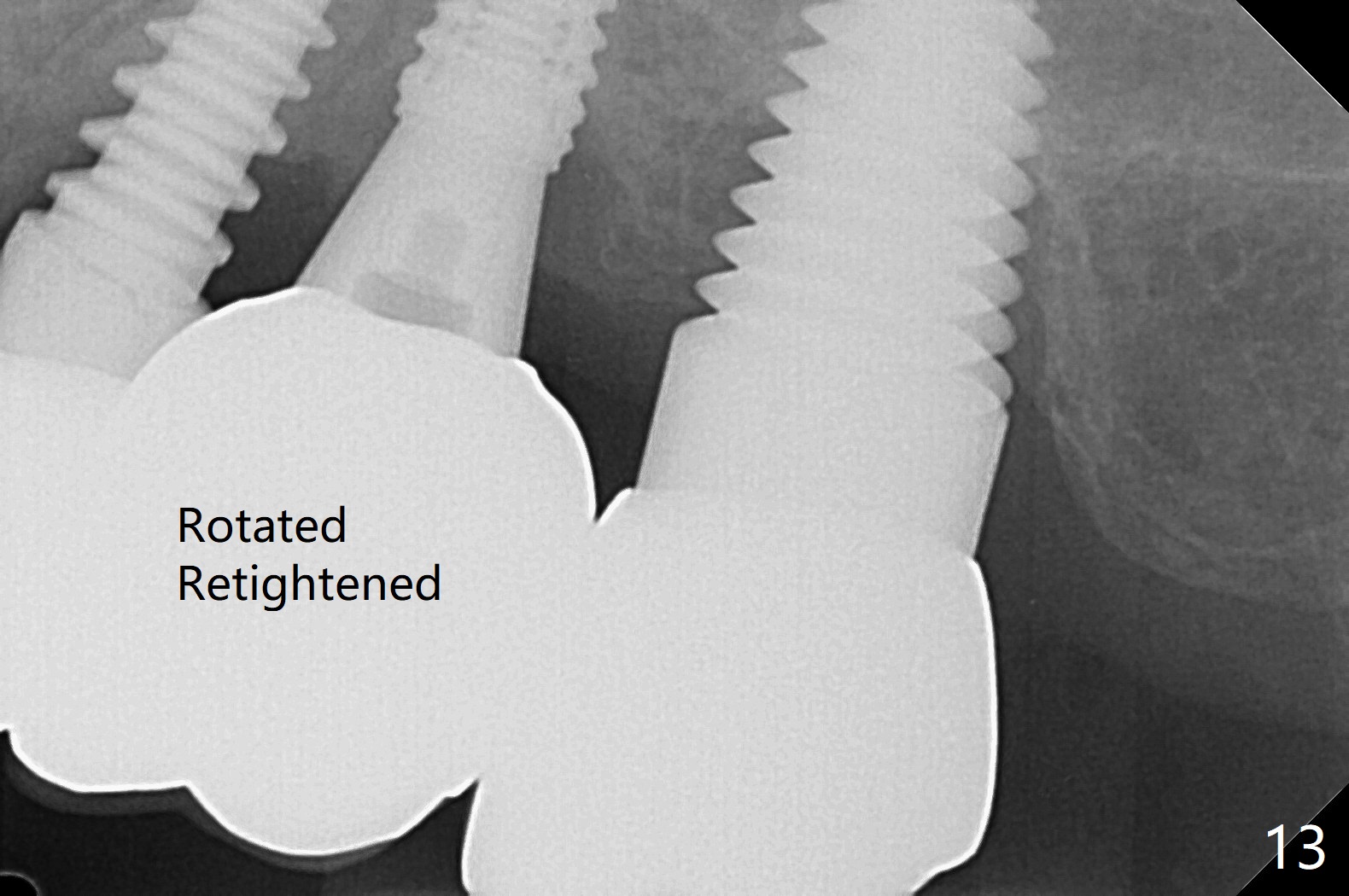

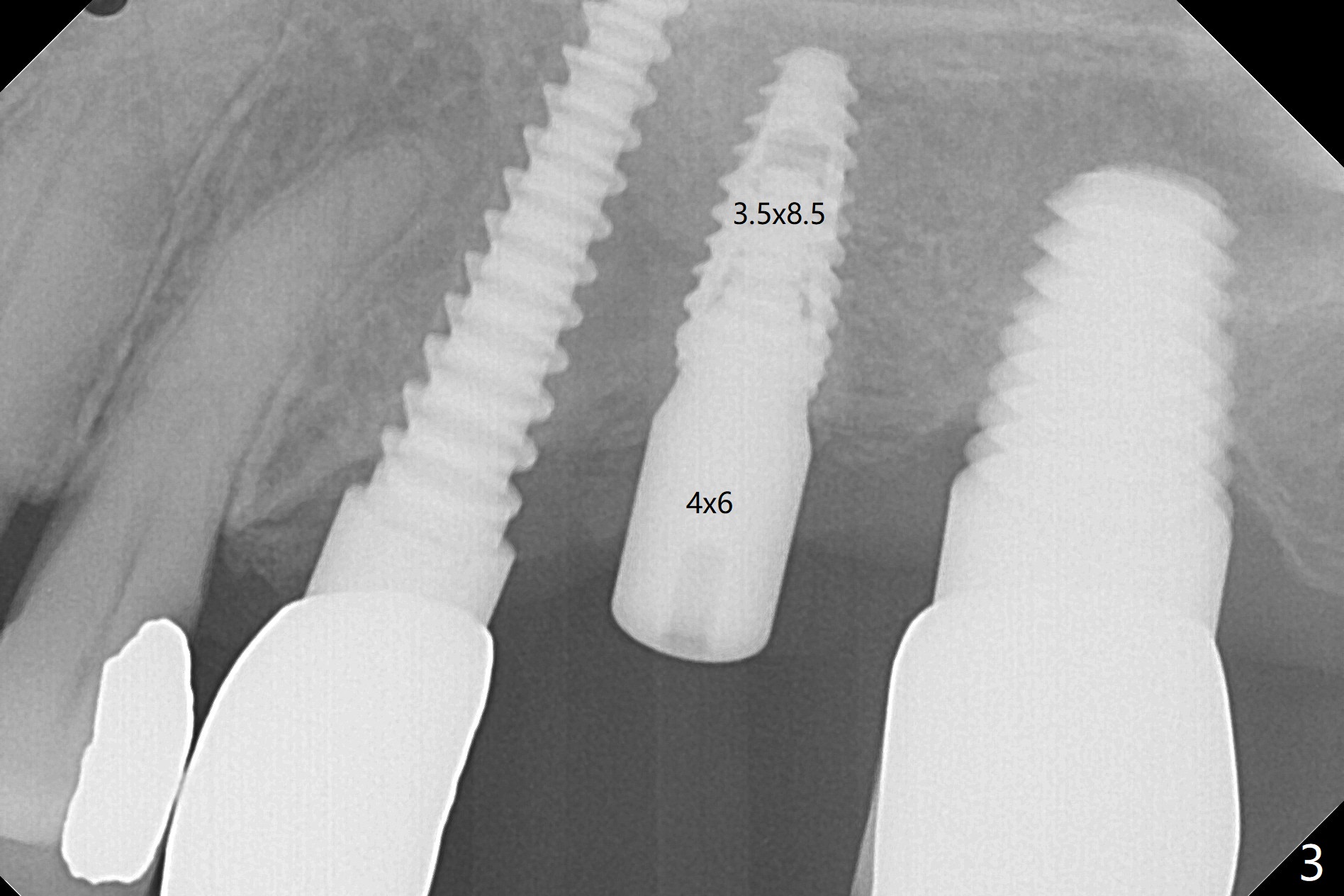

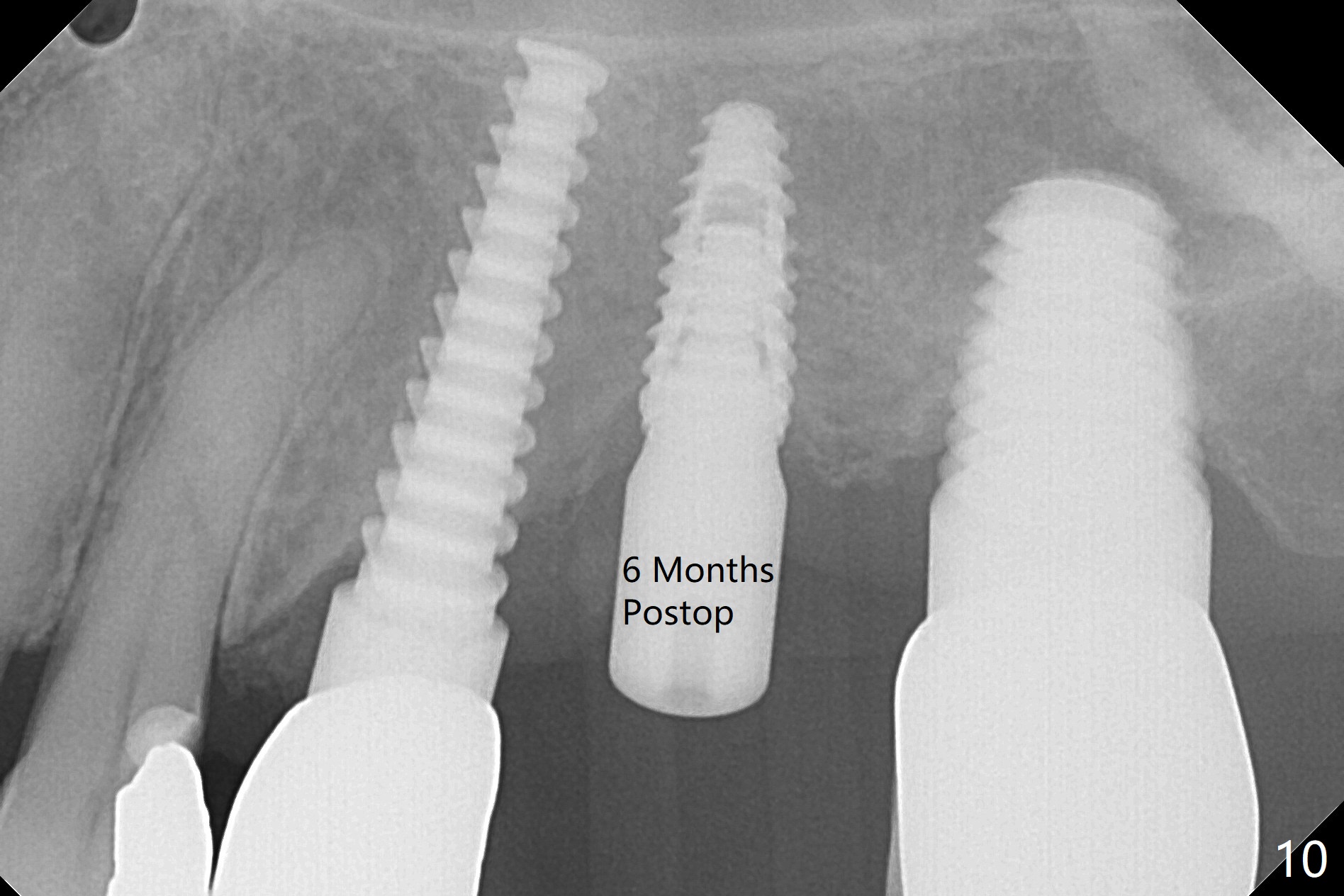

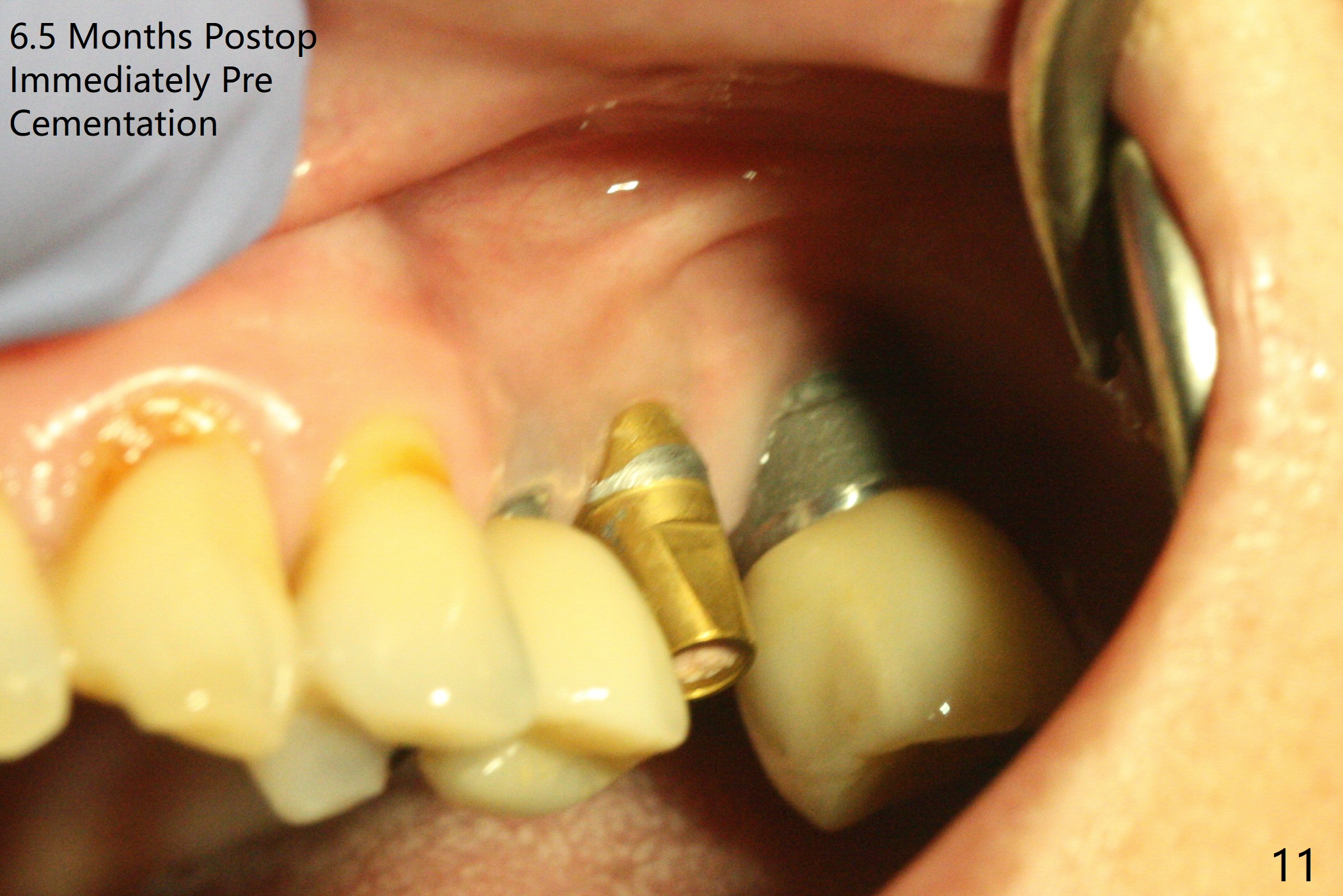

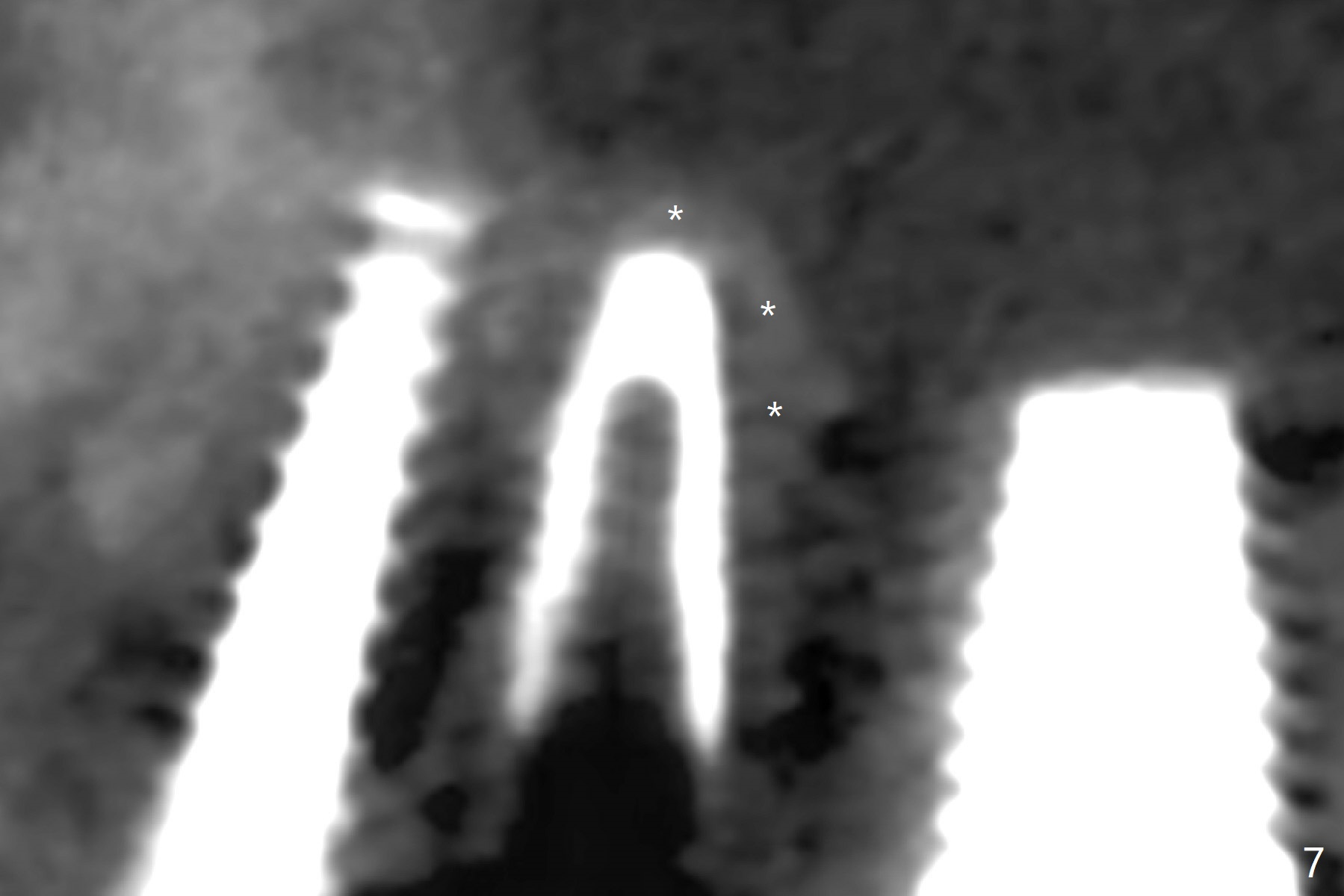

After osteotomy with guide and 2.2 mm drill for ~ 4 mm at #14, a bone expander (1.3/2.3 mm) is used free hand for sinus lift for 12 mm (from the gingival margin, Fig.1; a 10 mm long implant is planned).  Following the next expander (1.7/3.1 mm) for the same depth with binding, the sinus membrane is suspected to have perforated.  A piece of Osteogen Plug is inserted into the osteotomy as deep as possible with the purpose to repair the sinus membrane (no bone graft being used), followed by placing a 3.5x8.5 (instead of 10) mm implant with insertion torque ~ 25 Ncm (Fig.2,7-9, CT).  As compared to preop CT (Fig.4-6),  the previously grafted bone is lifted into the sinus by the bone expanders and the implant (Fig.7*).  At the same time, the grafted bone has been condensed and pushed buccally (B) (Fig.8,9 *).  A 4x6 mm healing abutment is inserted (Fig.3).  There is crestal bone loss 6 months postop (Fig.10).  Buccal plate atrophy involves the 3 implants in a row (Fig.11).  The crown is loose 1 year 8 m post cementation (Fig.12).  After proximal reduction, the crown/abutment rotates and sits down substantially (Fig.13).  Since the crown is extremely long, it cannot be seated together with the abutment.  The latter is seated with X-ray confirmation before proximal reduction of the crown (Fig.14).
