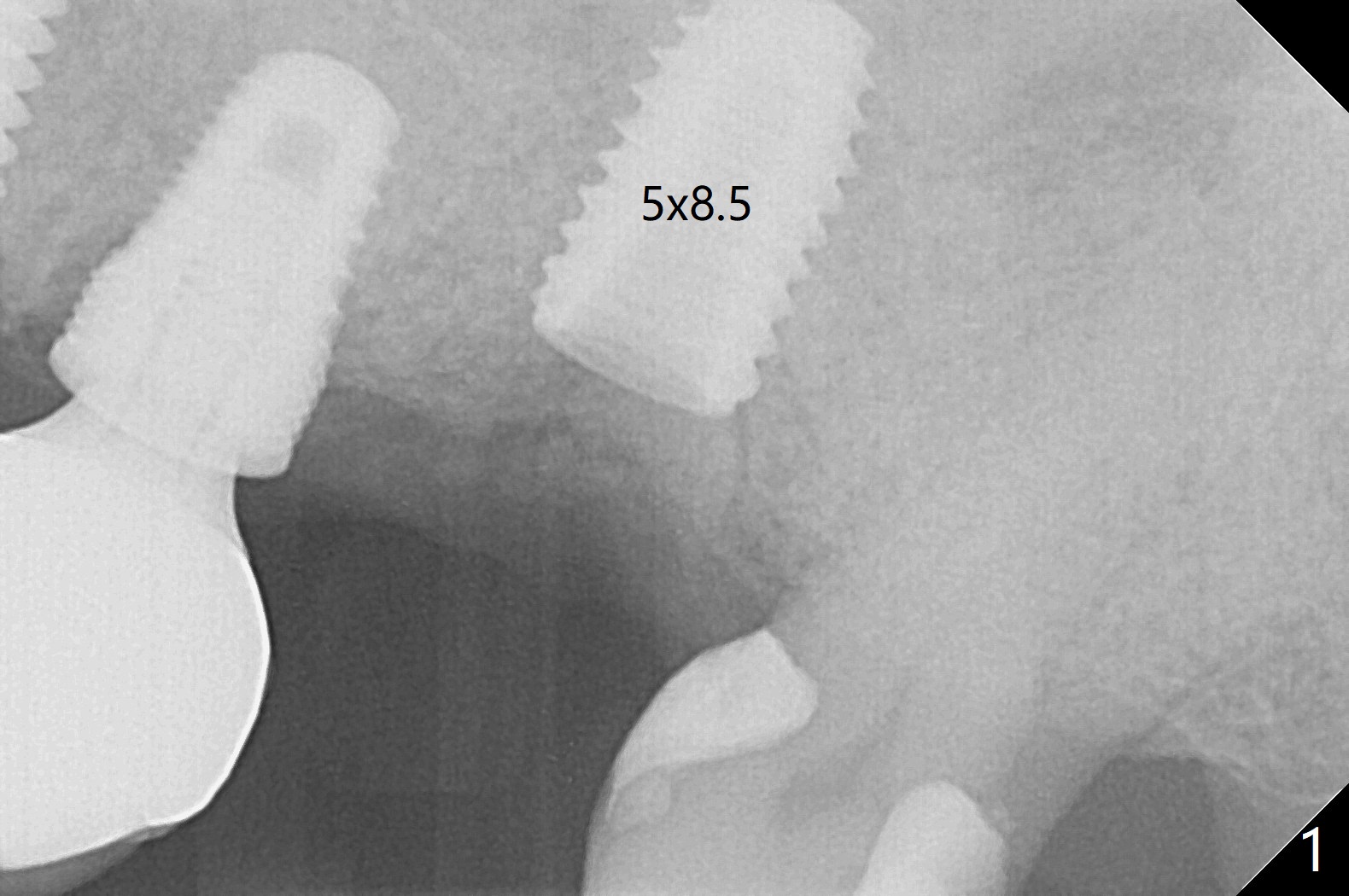

Due to low bone density post large implant (7 mm in diameter) removal with bone graft at #15, osteotomy with guide is underprep (last drill: 3.5x10 vs. 4.5x10 mm (design)). When a 4.5x10 mm dummy implant is placed at the beginning of the 1st line (10.5 mm offset), the torque is ~ 15 Ncm. As a 5x8.5 mm final implant is being placed, the torque increases to 30 Ncm (Fig.1,2) with apparently incidental sinus lift (Fig.3 arrows).
Xin Wei, DDS, PhD, MS 1st edition 10/15/2019, last revision 10/15/2019
