Where to Graft for Loss of Labial Plate?

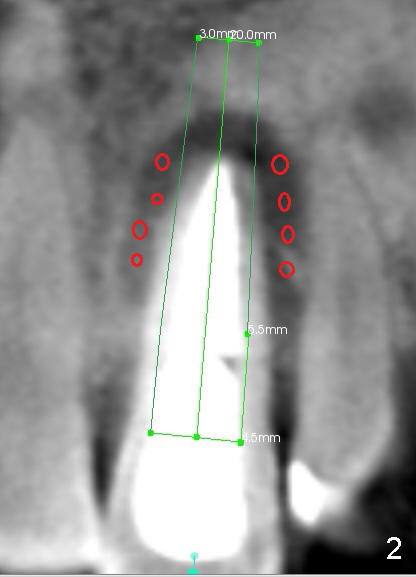

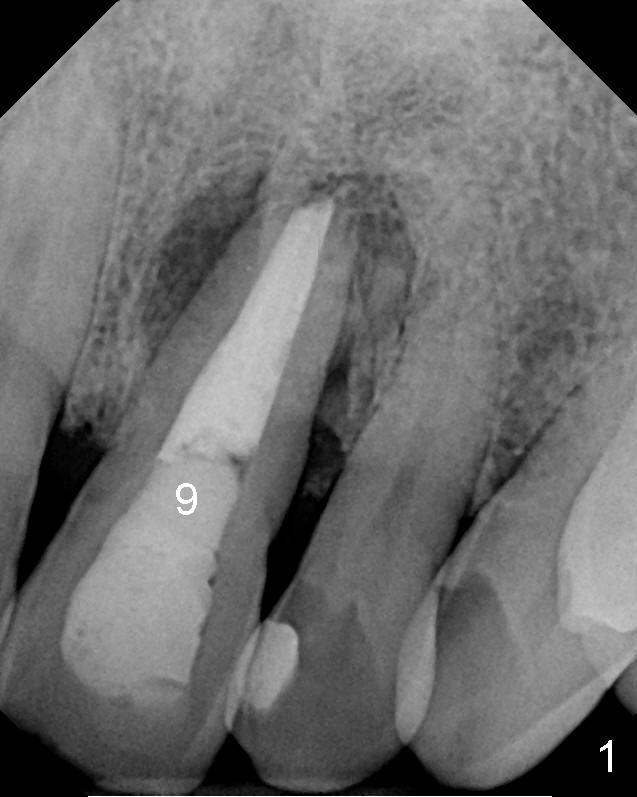

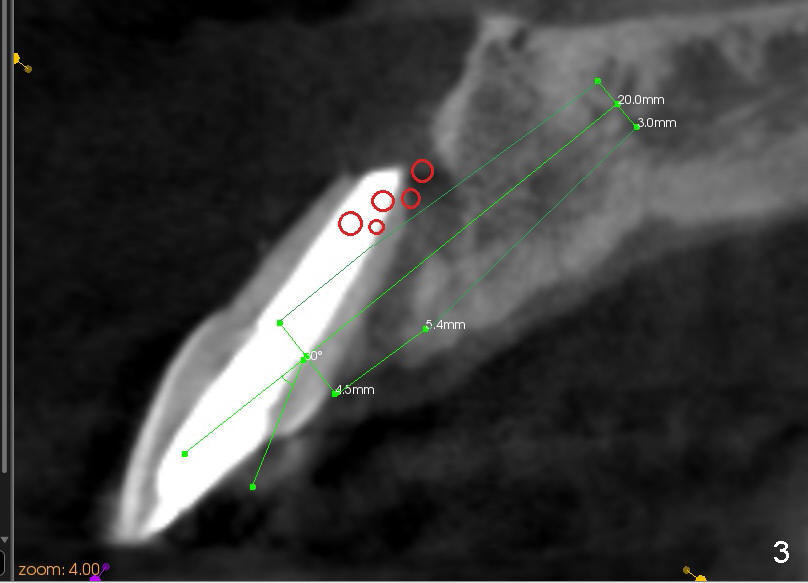

The 46-year-old patient is pleased with previous implant placement.  Preop PA shows severe periapical radiolucency of the tooth #9 (Fig.1).  CBCT confirms the lesion extent (Fig.2,3).  It appears that the labial plate is completely lost (Fig.3).  A long implant is indicated.  Due to insertion into the palatal bone, an angled abutment is anticipated (20 or 30°).  Prior to implant placement, bone graft is placed to the apical half of the socket (mesial and distal (Fig.2) and labial (Fig.3 red circles).  How does it get done?
