Lengthwise, a longer osteotomy is needed (Fig.4): 20 mm at the gingival level, 17 mm at the bone level. Distal to the 5 mm tap (T) is a gap (*). After a 5x20 mm implant (Fig.5 I) is placed, the distal gap is filled with bone graft (*).

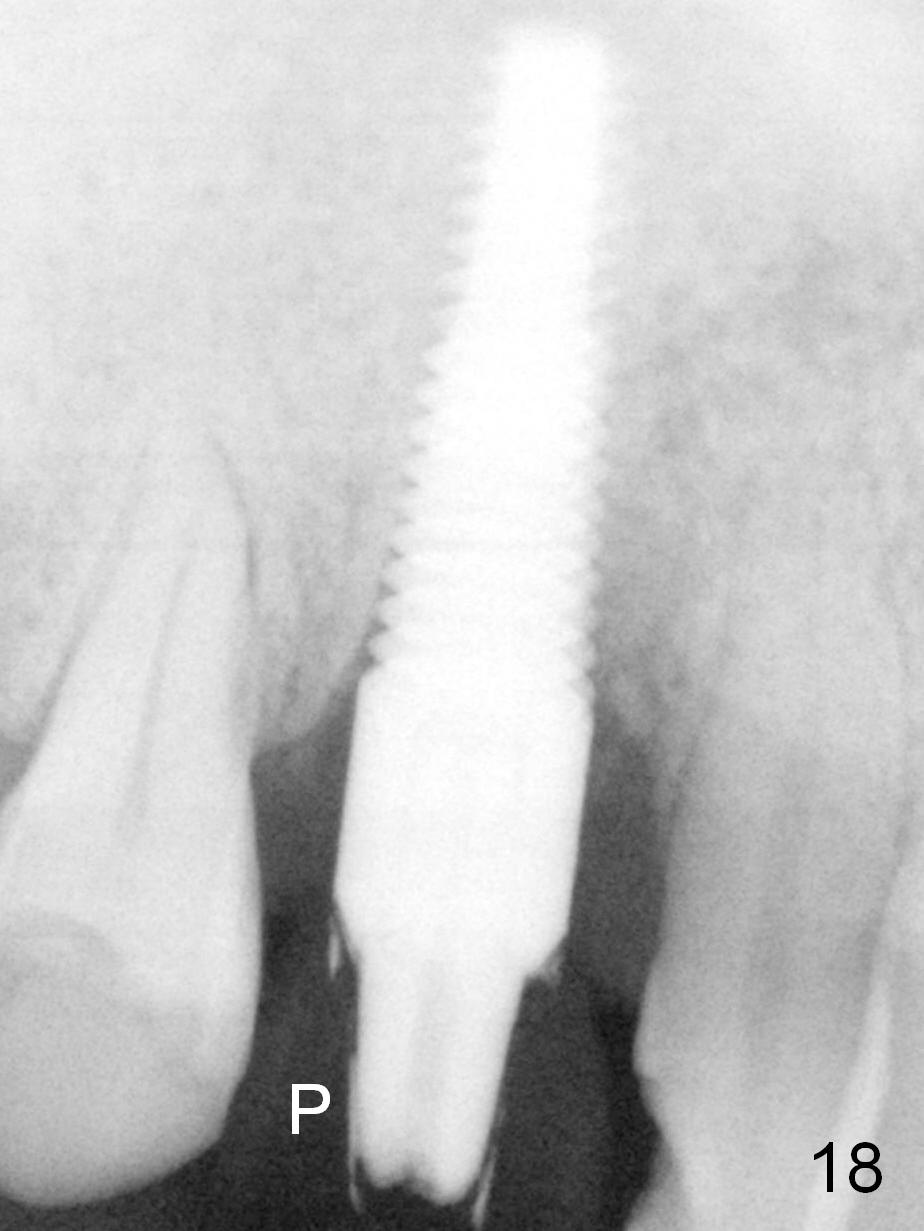

Three months postop, the implant appears to have osteointegrated with disappearance of the distal gap (Fig.18). P: provisional. The crestal bone is stable 3 Years 7 Months Post Cementation (Fig.21).
