Abutment with 6 mm Cuff

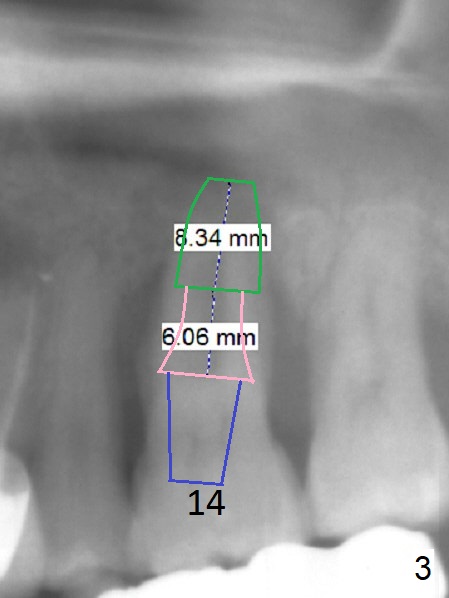

A 48-year-old man has mobile, symptomatic upper left 1st molar with severe gingival recession (Fig.1,2, particularly palatal).  There appears no sinus floor.  The thick gingiva (6 mm (Fig.3 pink)) will dictate a particular implant system.  The long clinical crown suggests a long abutment (blue, 7 mm).  After extraction and Clindamycin, use the smallest tap drill to initiate osteotomy until stability and sinus lift are achieved.  PRF plug (1) and membrane (3) are to be prepared.

Return to Upper Molar Immediate Implant, Prevent Molar Periimplantitis (Protocols, Table), IBS, #25, Course 1 2

Xin Wei, DDS, PhD, MS 1st edition 06/16/2017, last revision 04/08/2018
