Implant in Limited Height

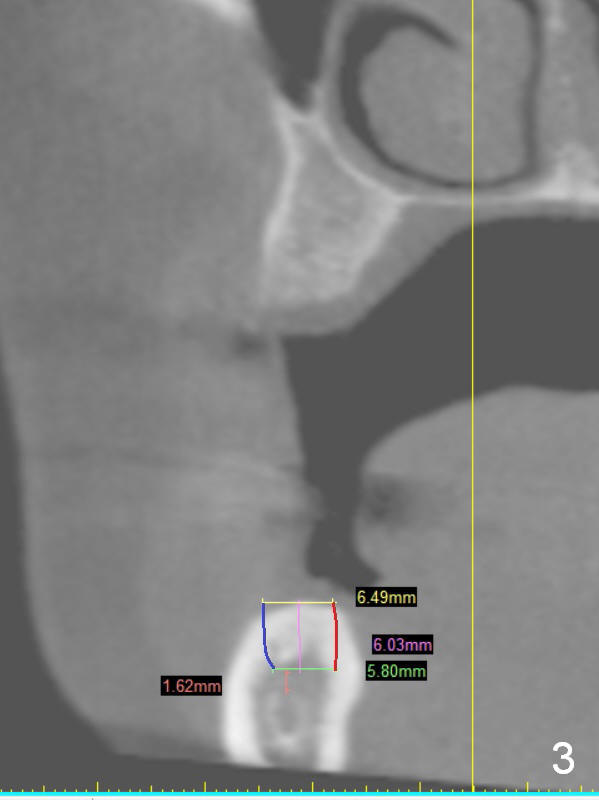

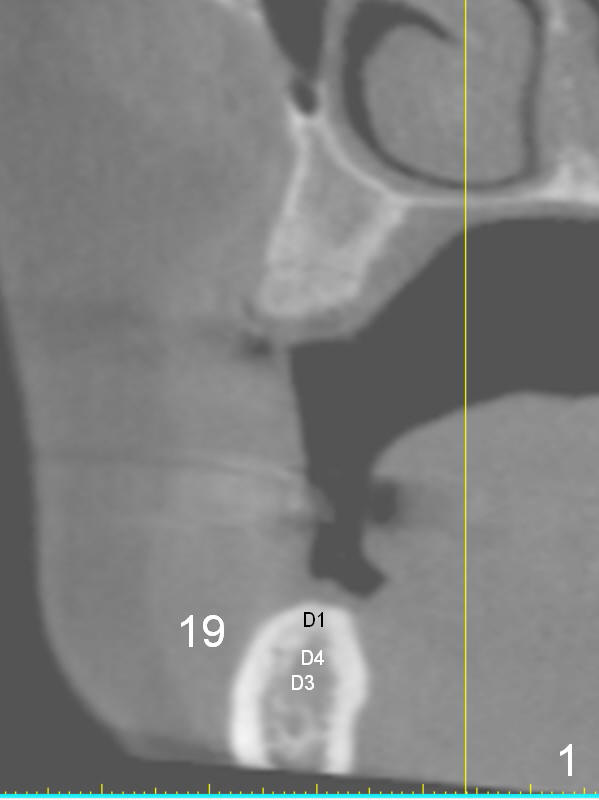

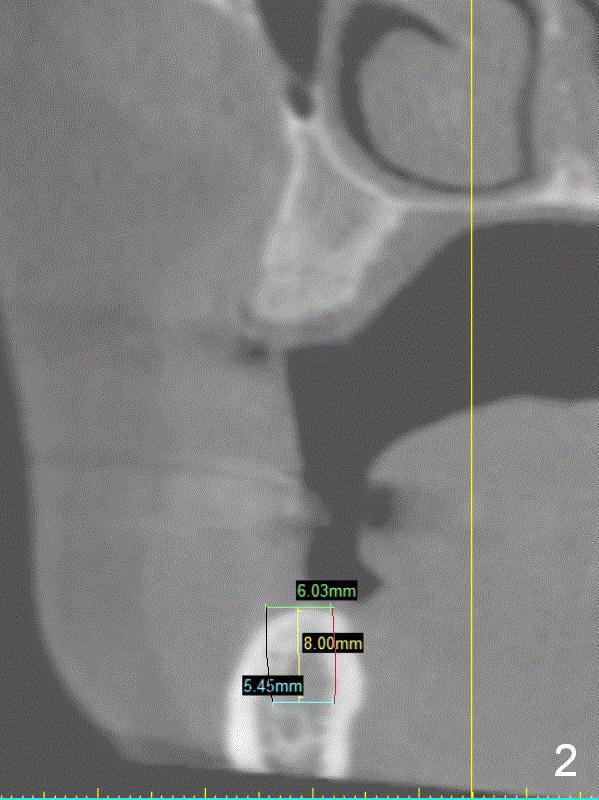

A 49-year-old lady is petit.  The crest at #30 is narrow.  A small implant is placed.  To increase its longevity, the patient should have left 1st molar occlusion.   Bone density at #19 is D1 (the cortex), D4 (upper medulla) and D3 (lower medulla) (Fig.1).  Bone is wide enough to hold a 6 mm (in diameter) implant, but a 8 mm long implant appears to be too long (Fig.2).  Therefore, a 6 or 6.5x6 mm implant appears to be appropriate (Fig.3).  How about the bone at #14?

Return to Lower Molar Immediate Implant

Xin Wei, DDS, PhD, MS 1st edition 10/11/2015, last revision 10/11/2015
