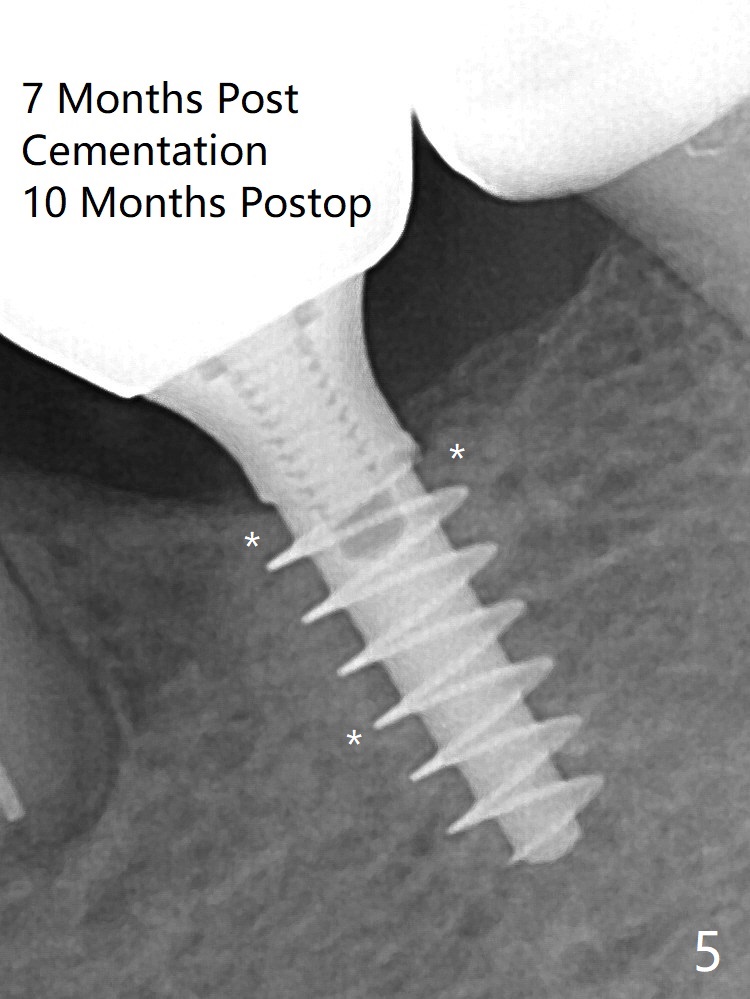

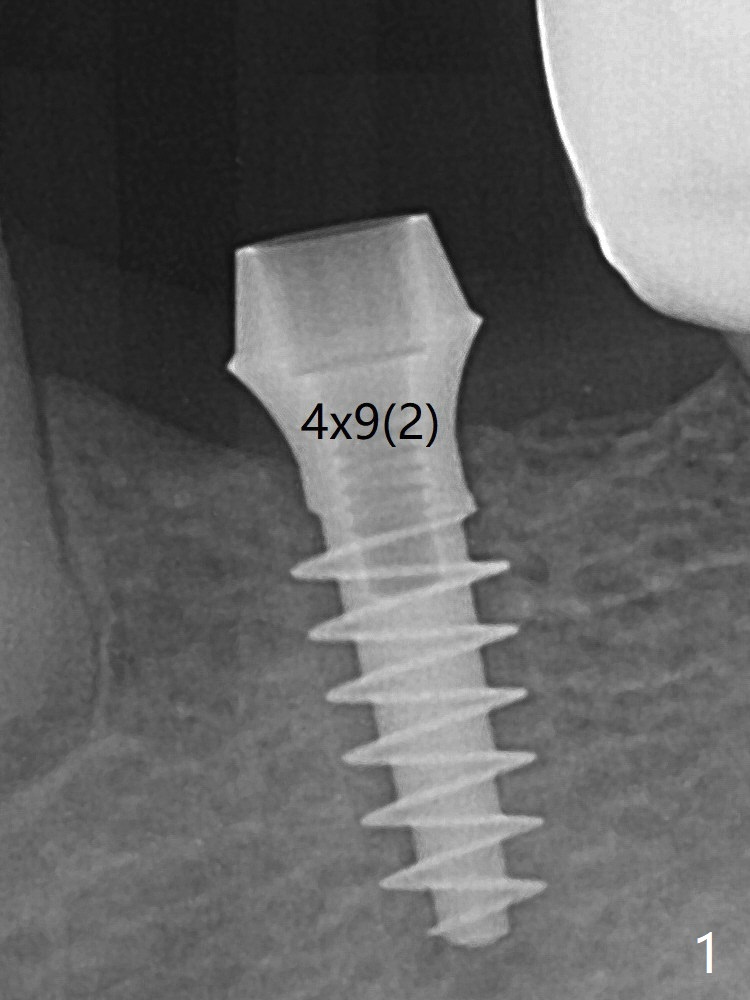

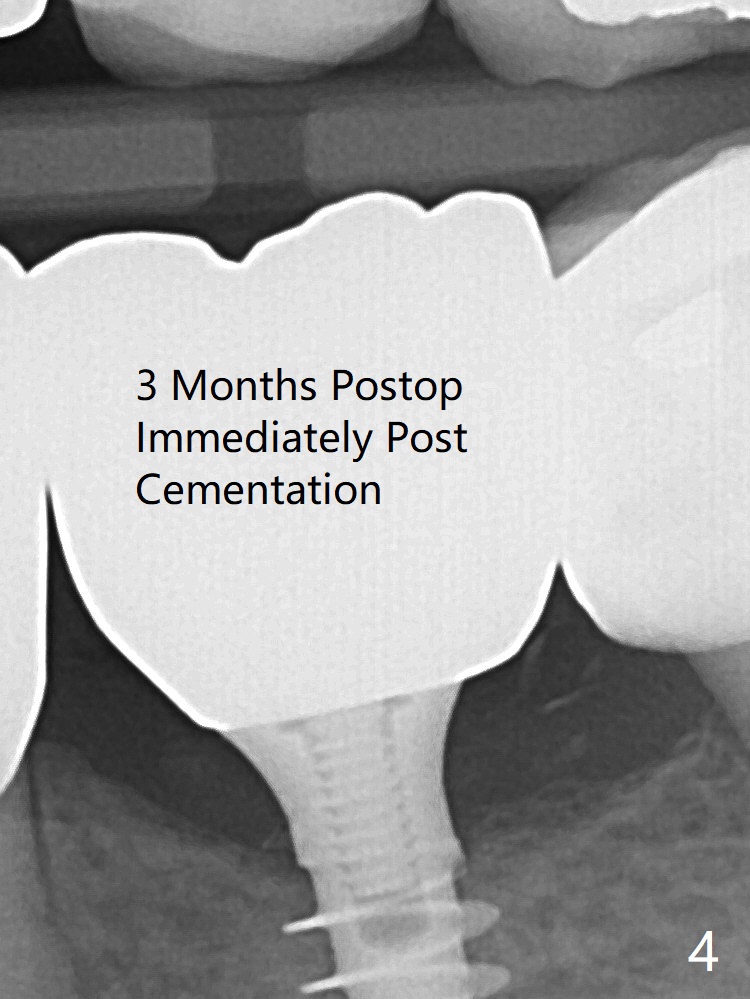

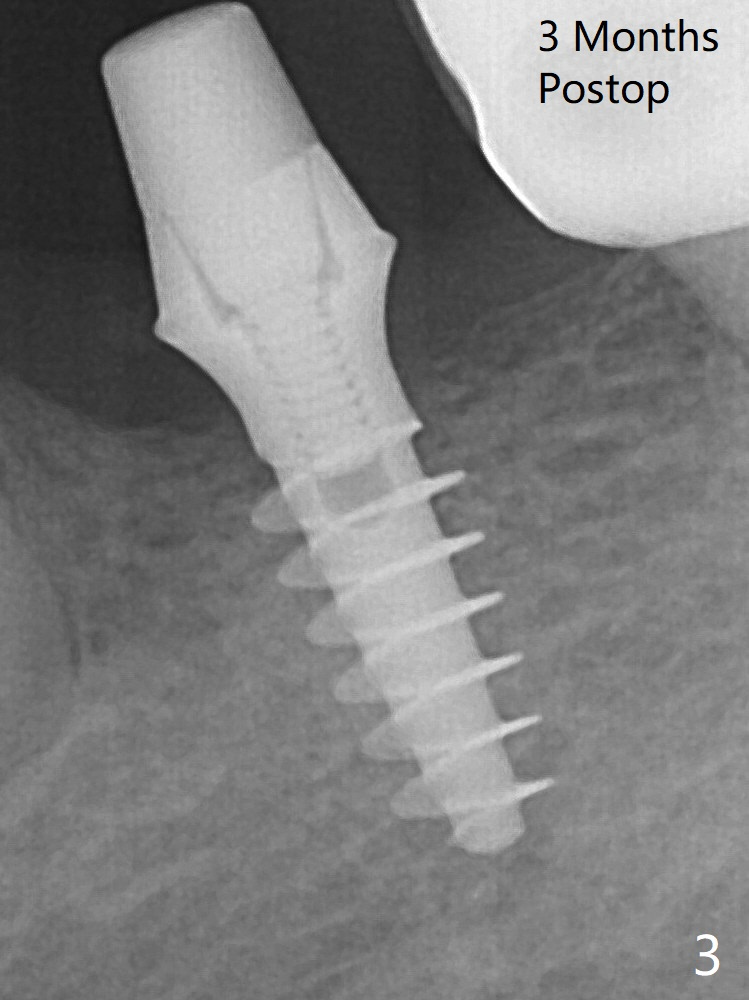

After finishing osteotomy at #19 according to IS drill sequence for 4x10 mm implant except cortical tap, a 4x9(2) mm Magicore is placed with ~ 50 Ncm (Fig.1).  Thin threads are less traumatic with less bone loss.  The implant with 4.5x3 mm solid abutment is stable for impression nearly 3 months postop (Fig.3).  Appreciate the distinct thread pattern of Magicore 3 months 1 week postop, immediately post cementation (Fig.4).  Bone density increases 7 months post cementation (Fig.5 *).

Guide for Magicore Last Next Xin Wei, DDS, PhD, MS 1st edition 10/14/2019, last revision 10/14/2019
