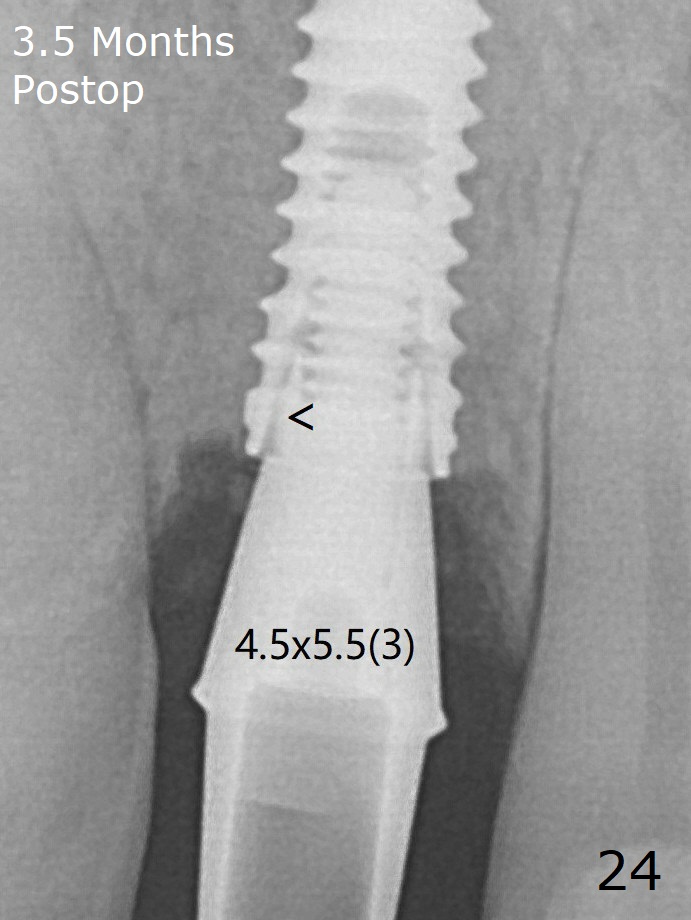

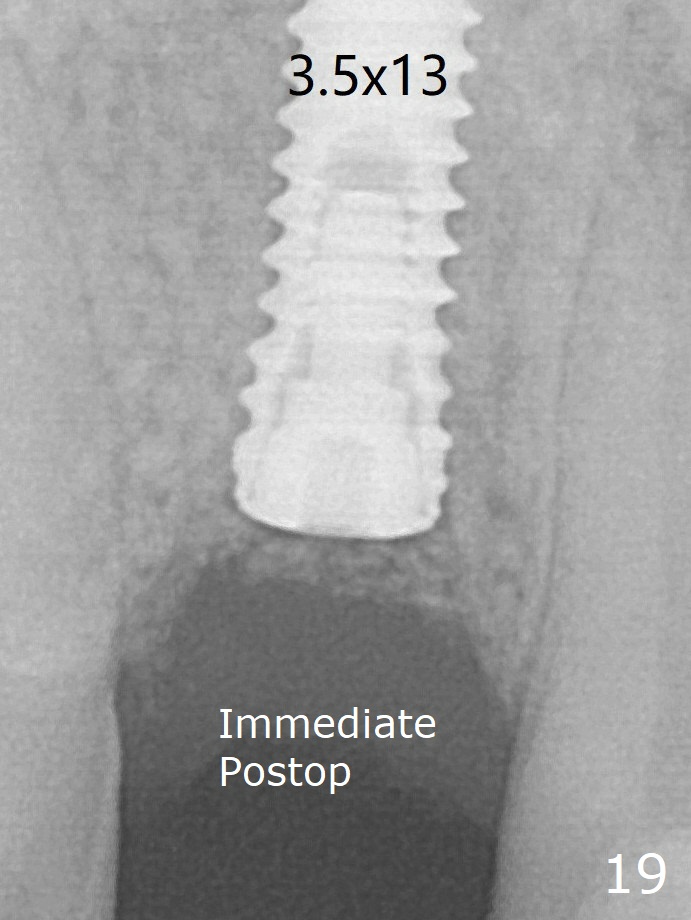

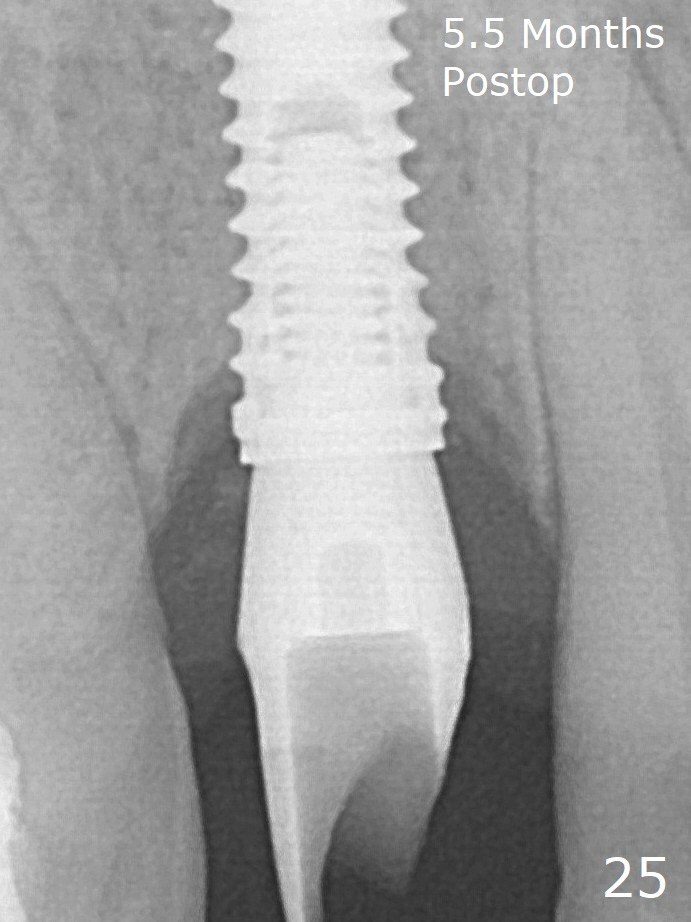

Finally using Lindamann bur, the osteotomy is changed so that a 3.5x13 mm 2-piece implant does not need an angled abutment to establish occlusion (Fig.19).  There is one palatal thread exposure.  Allograft is placed circumferentially, followed by Human Amnion-Chorion Allograft and Collagen Plug.  A 4.5x5.5(3) mm appears to be seated incompletely with a gap between the abutment and the implant (Fig.24 <, overtightened?).  A provisional is fabricated after heavy palatal reduction.  Two months later, the provisional fractures.  After repositioning the abutment with complete seating and torque (Fig.25), impression is taken.
