Fractured FPD

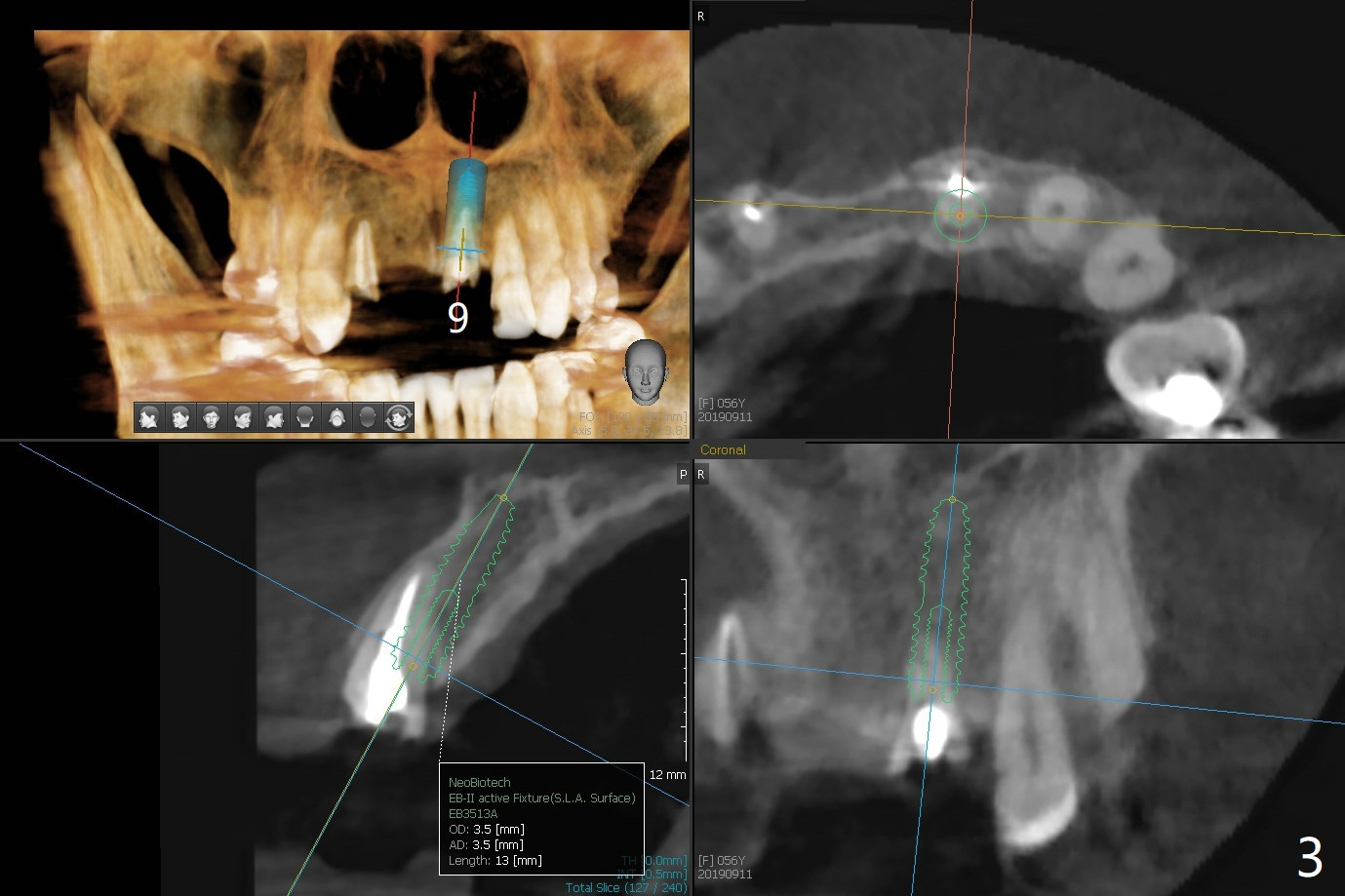

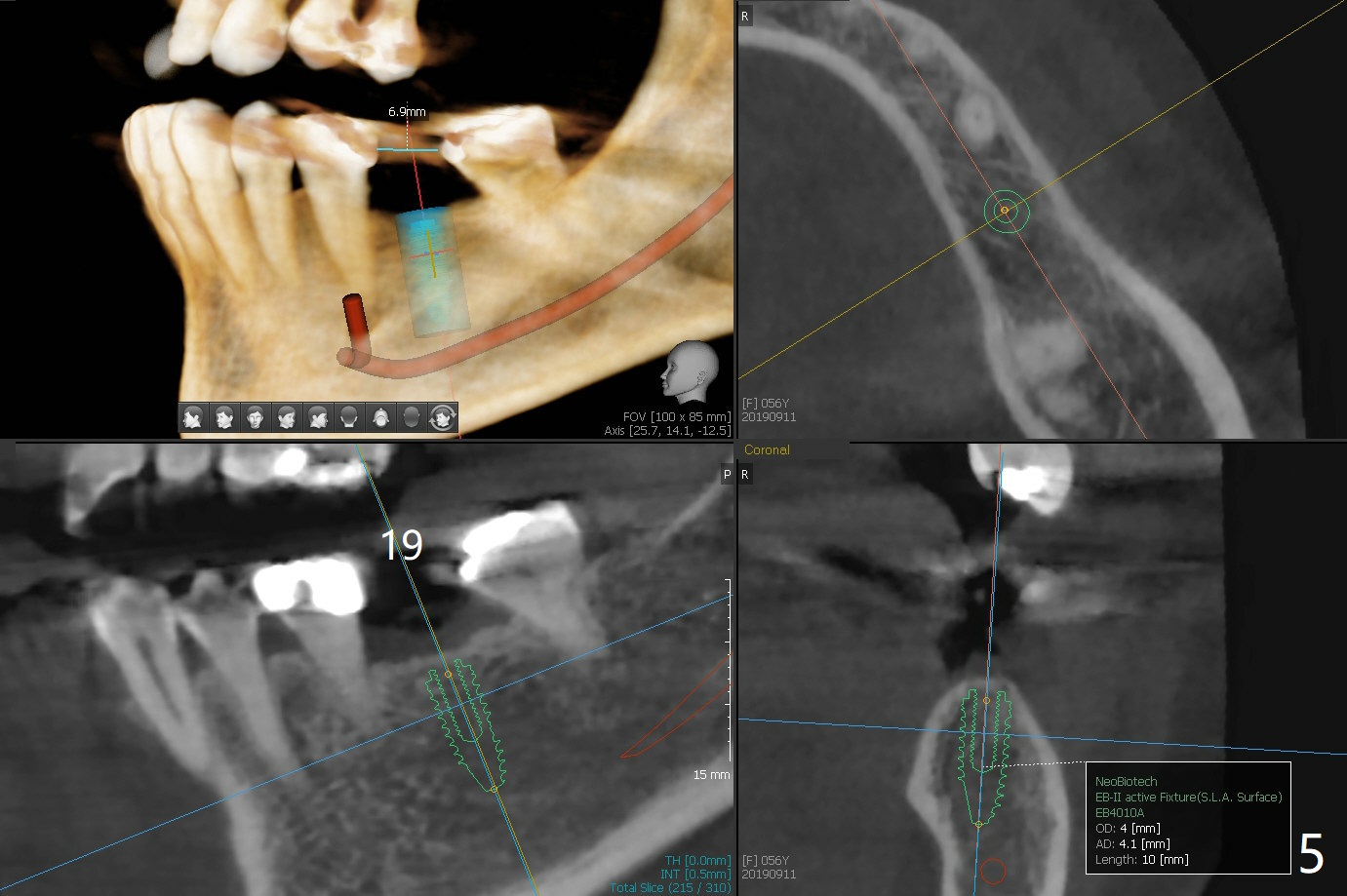

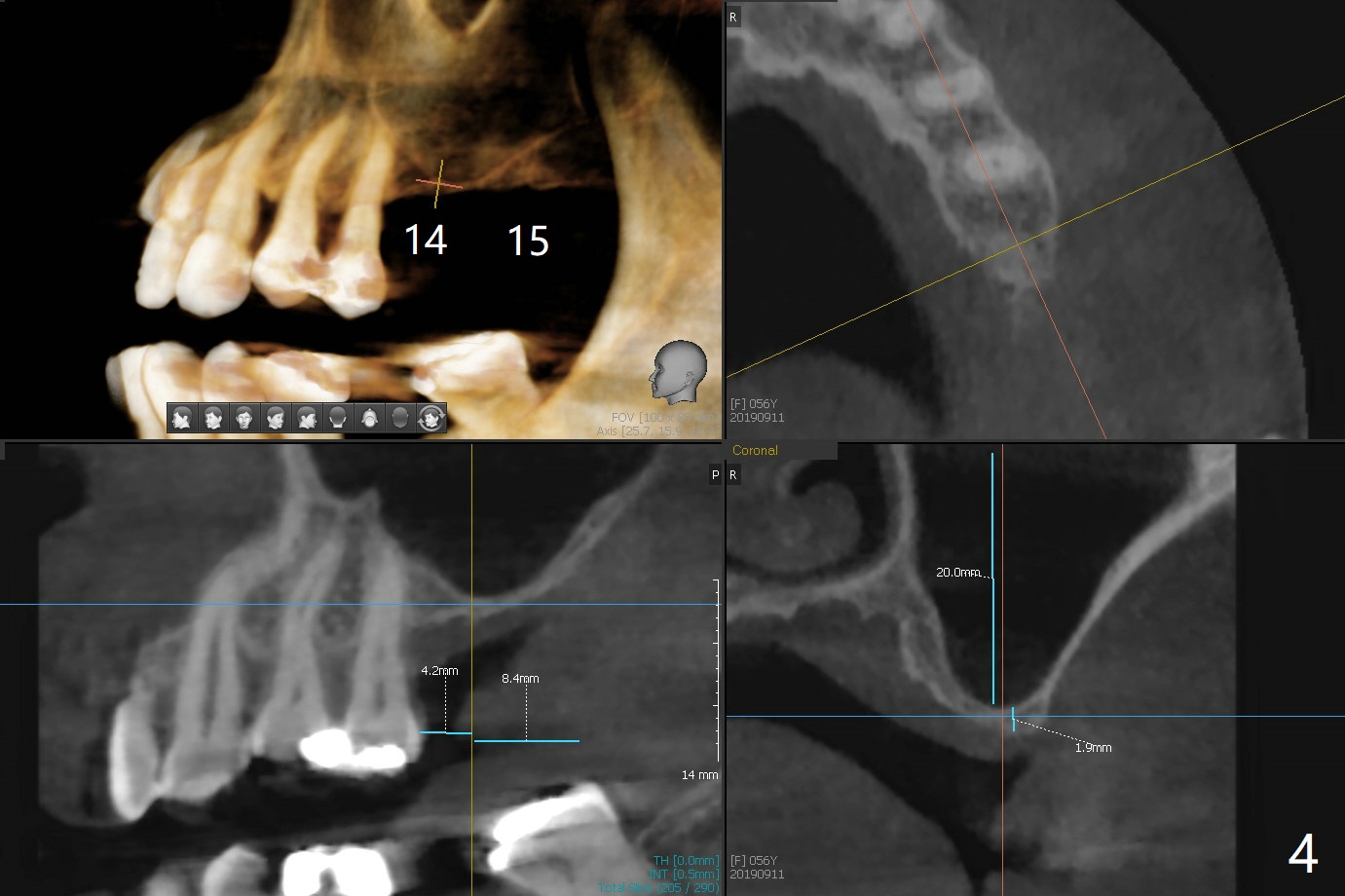

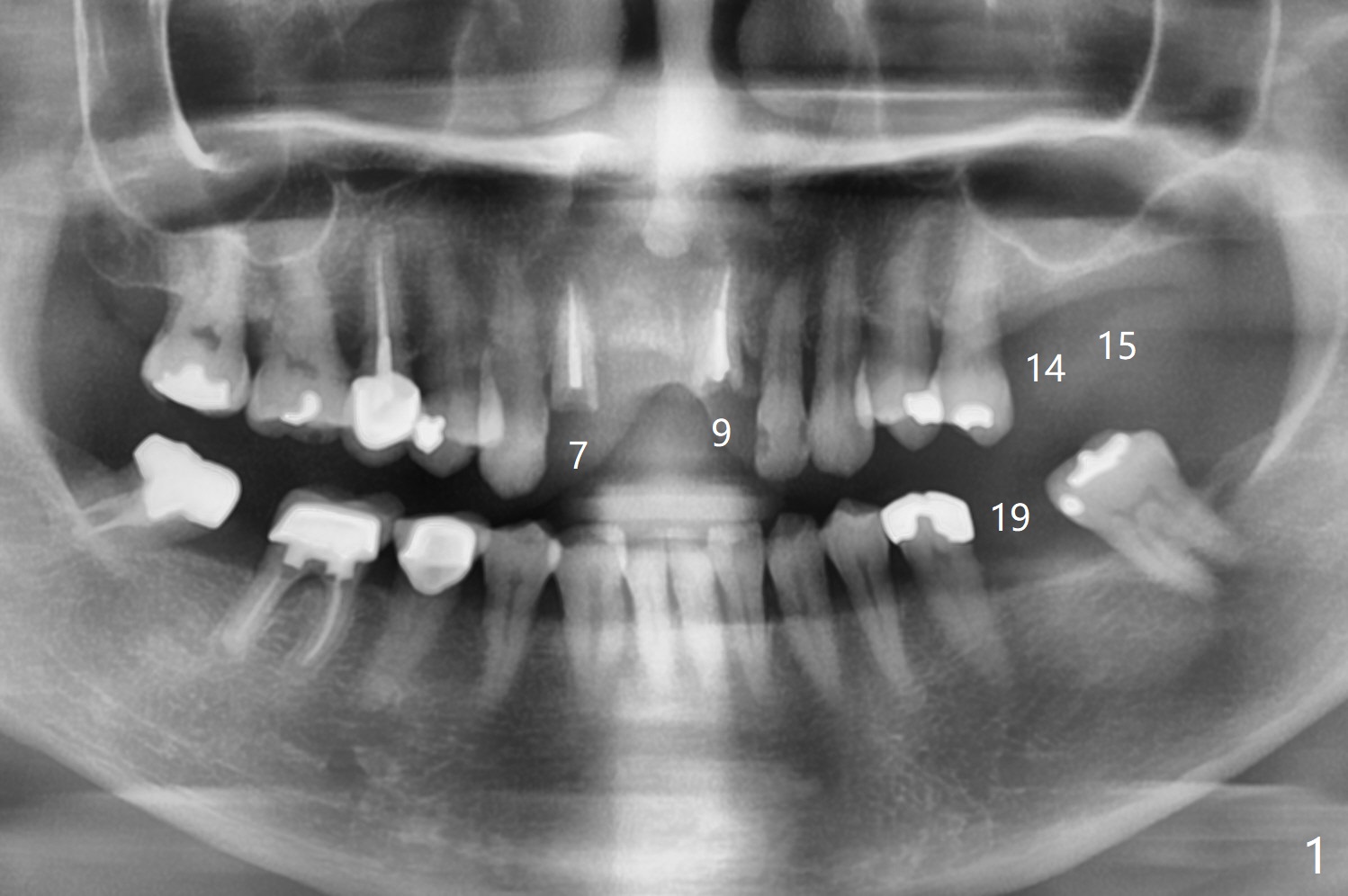

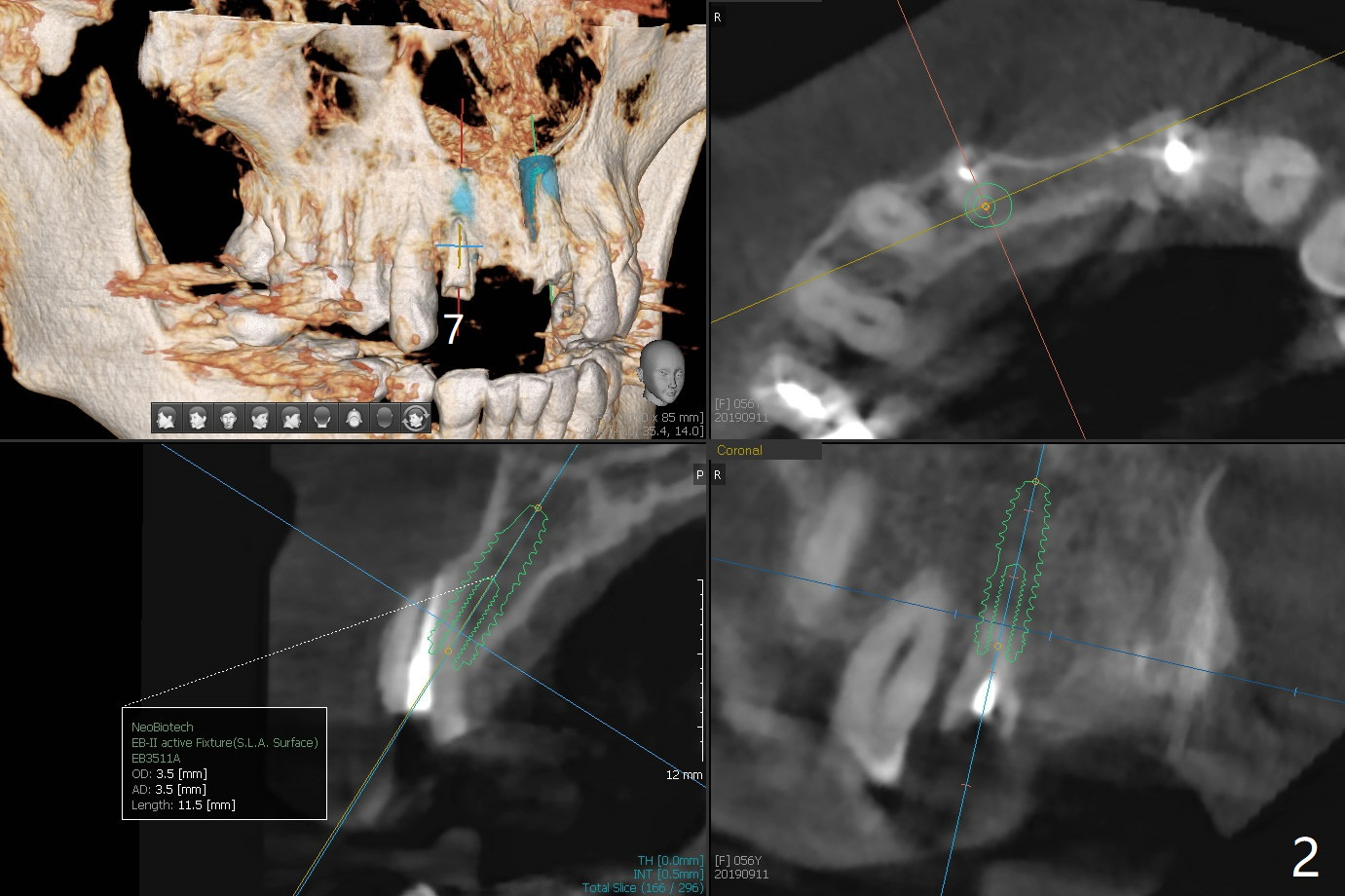

A 56-year-old woman without much posterior support has fractured #7-9 FPD (Fig.1).  Since the bone at #7 is thinner buccopalatal than that of #9 (compare Fig.2,3), a shorter implant will be placed at #7 with an angled abutment.  External sinus lift is required with PRFx2 before implantation at #14 and 15 (Fig.4).  For #19 with the narrow mesiodistal space, a narrow implant is indicated (Fig.5).
