Narrow Implant M

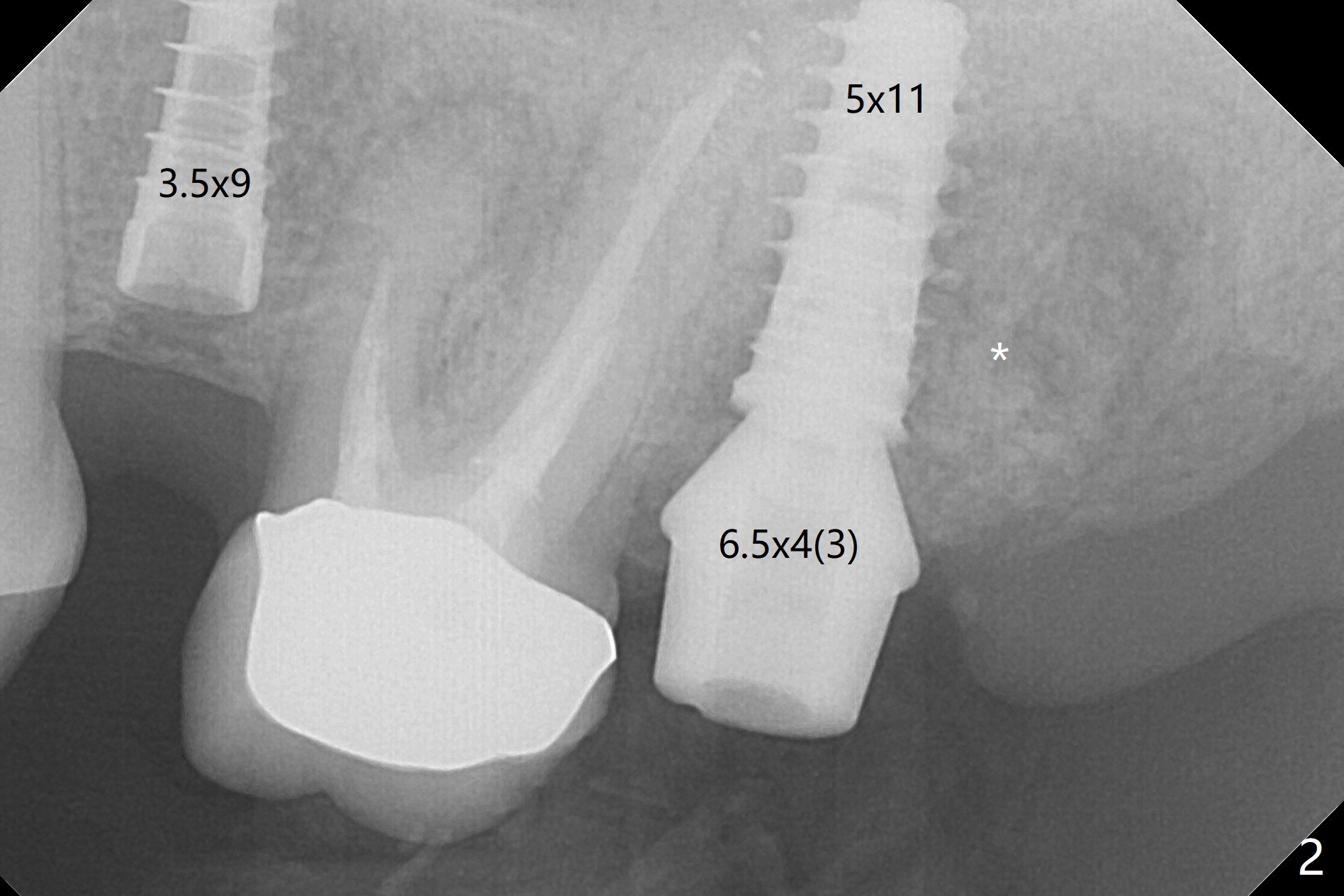

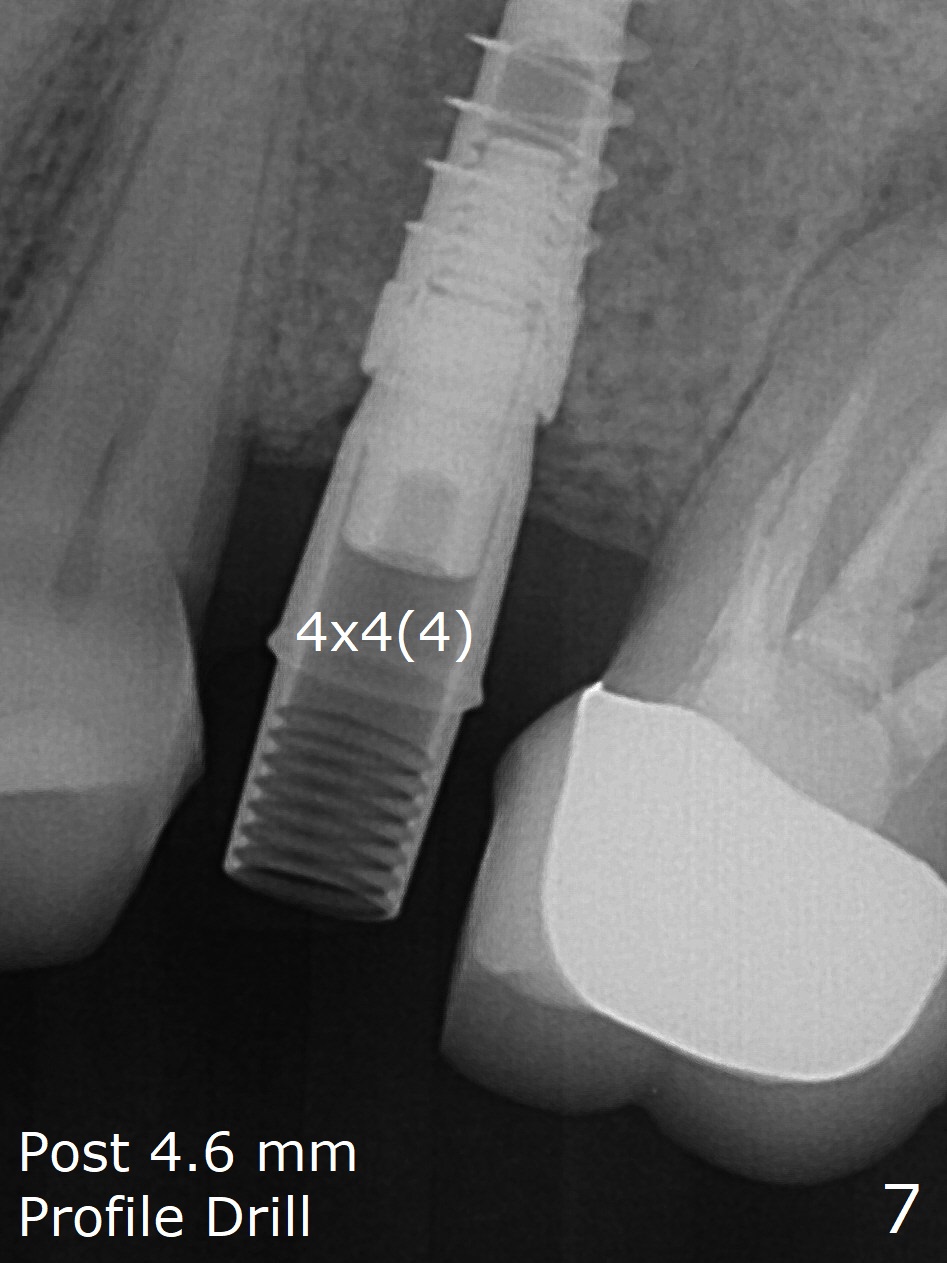

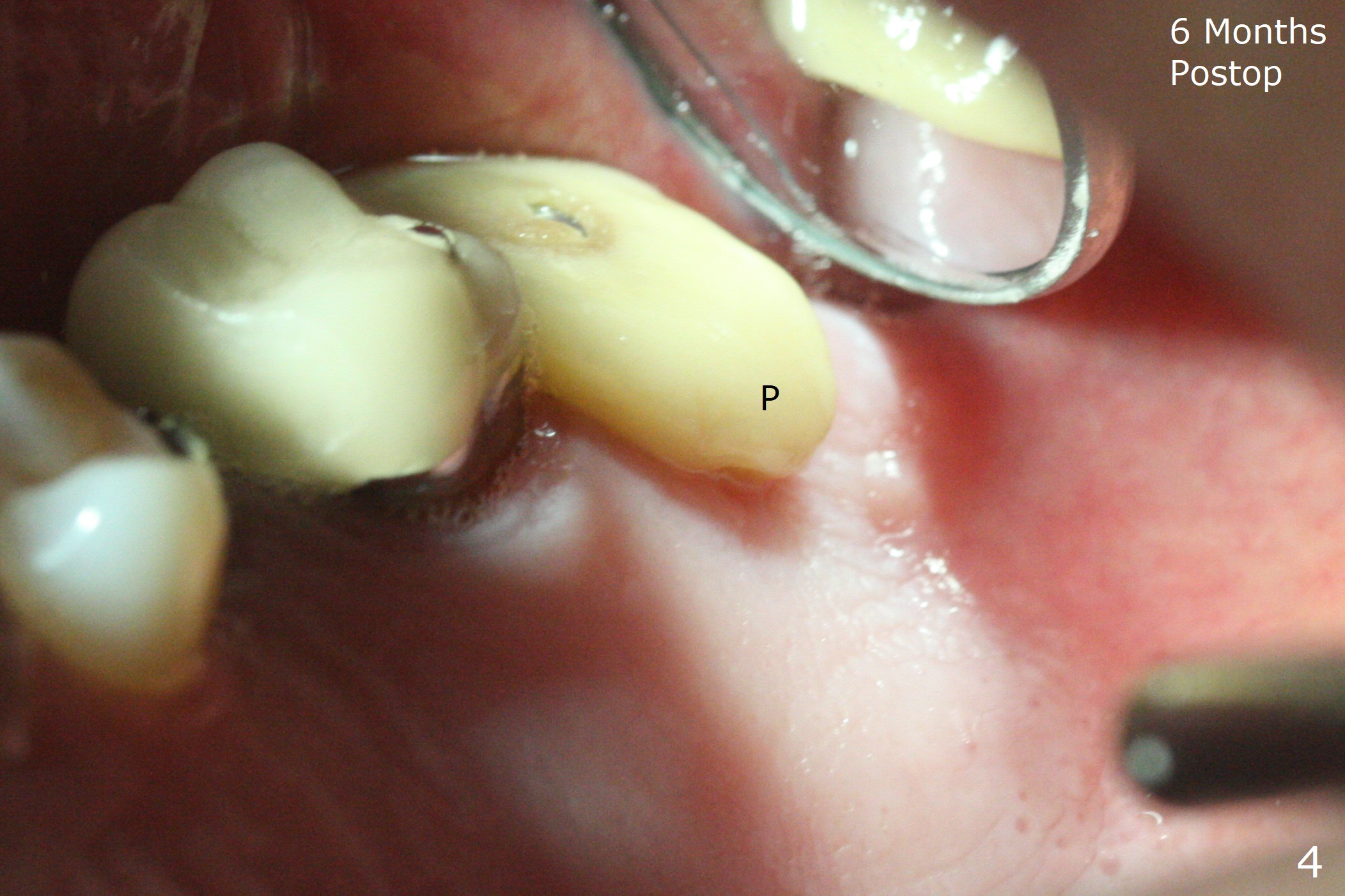

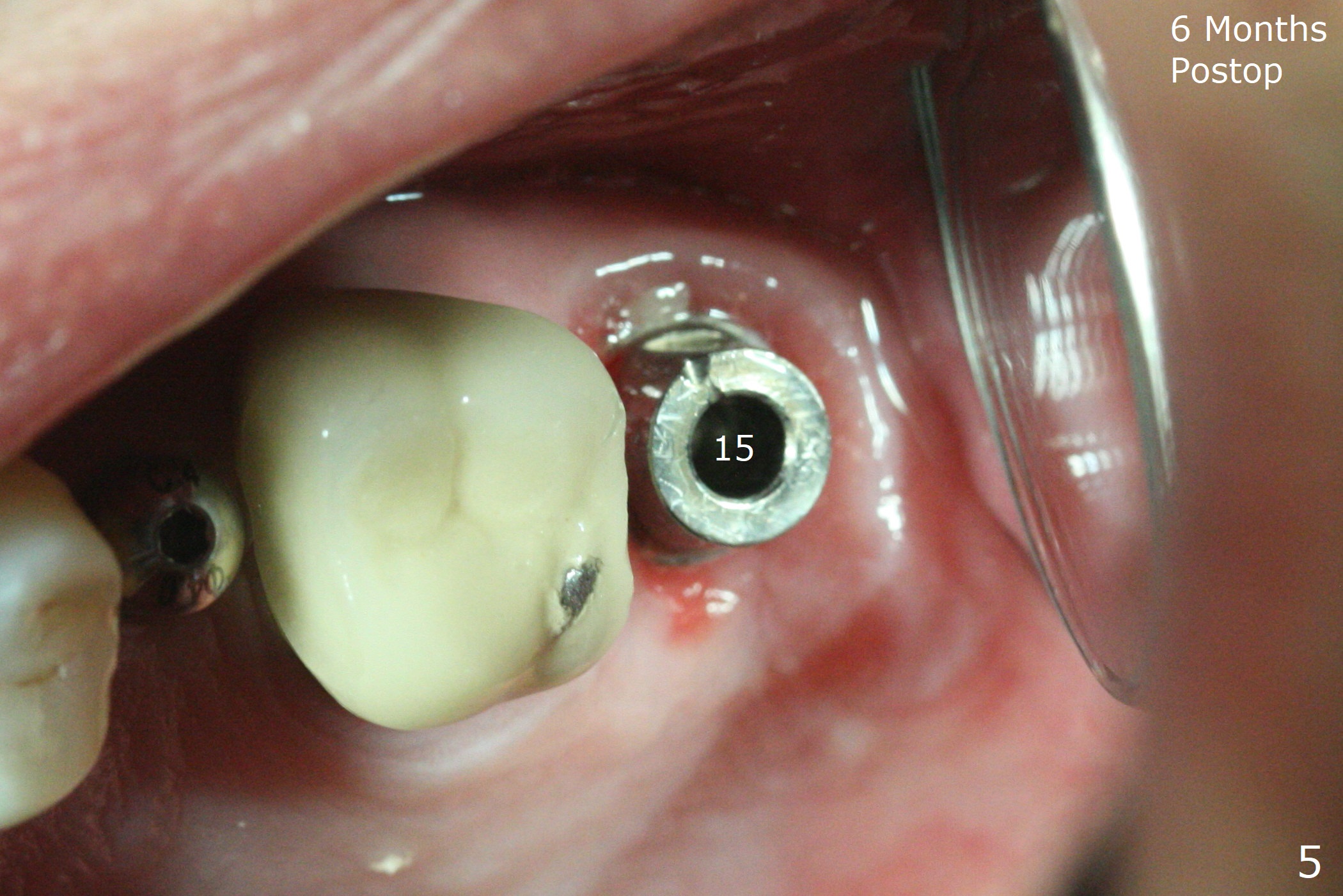

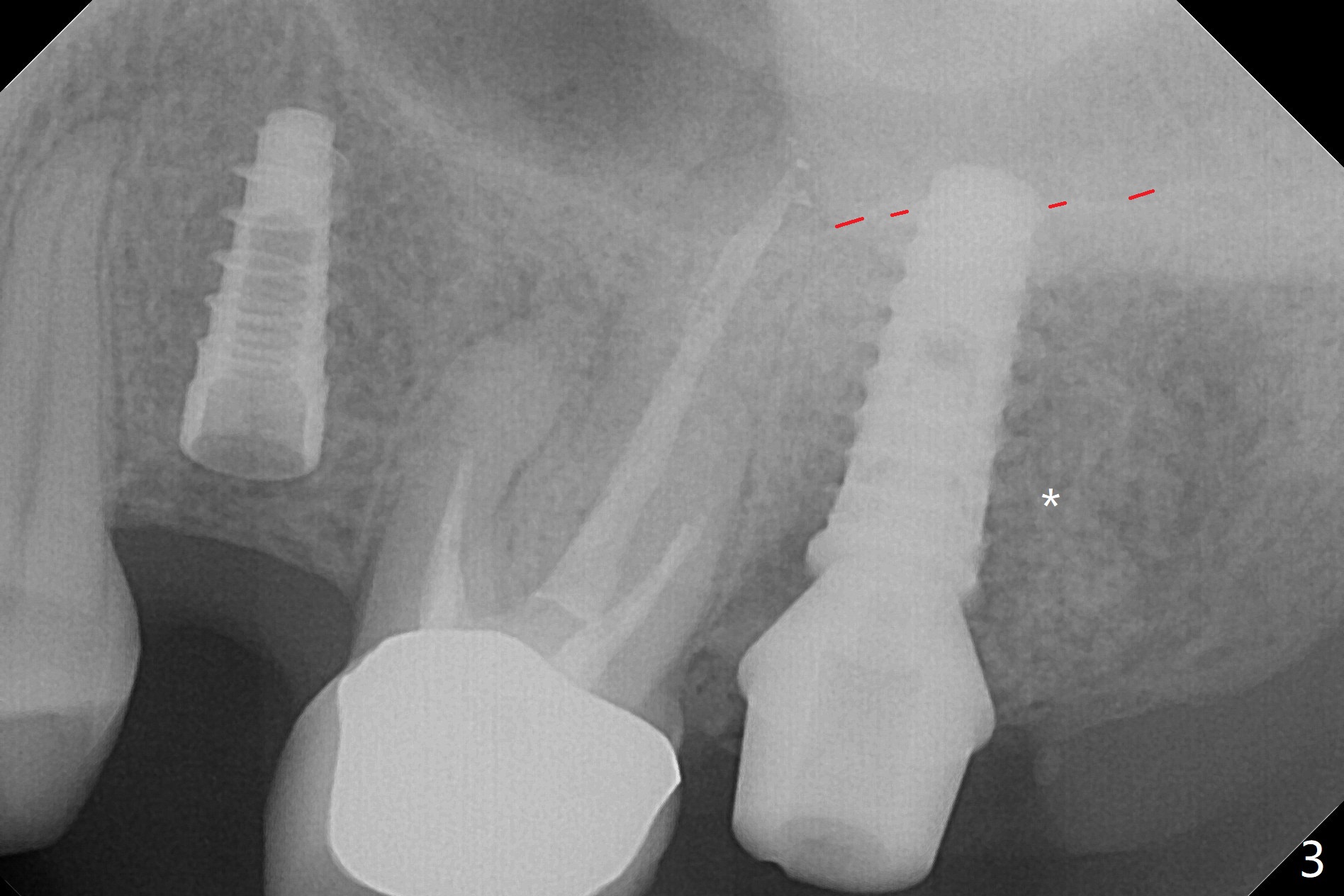

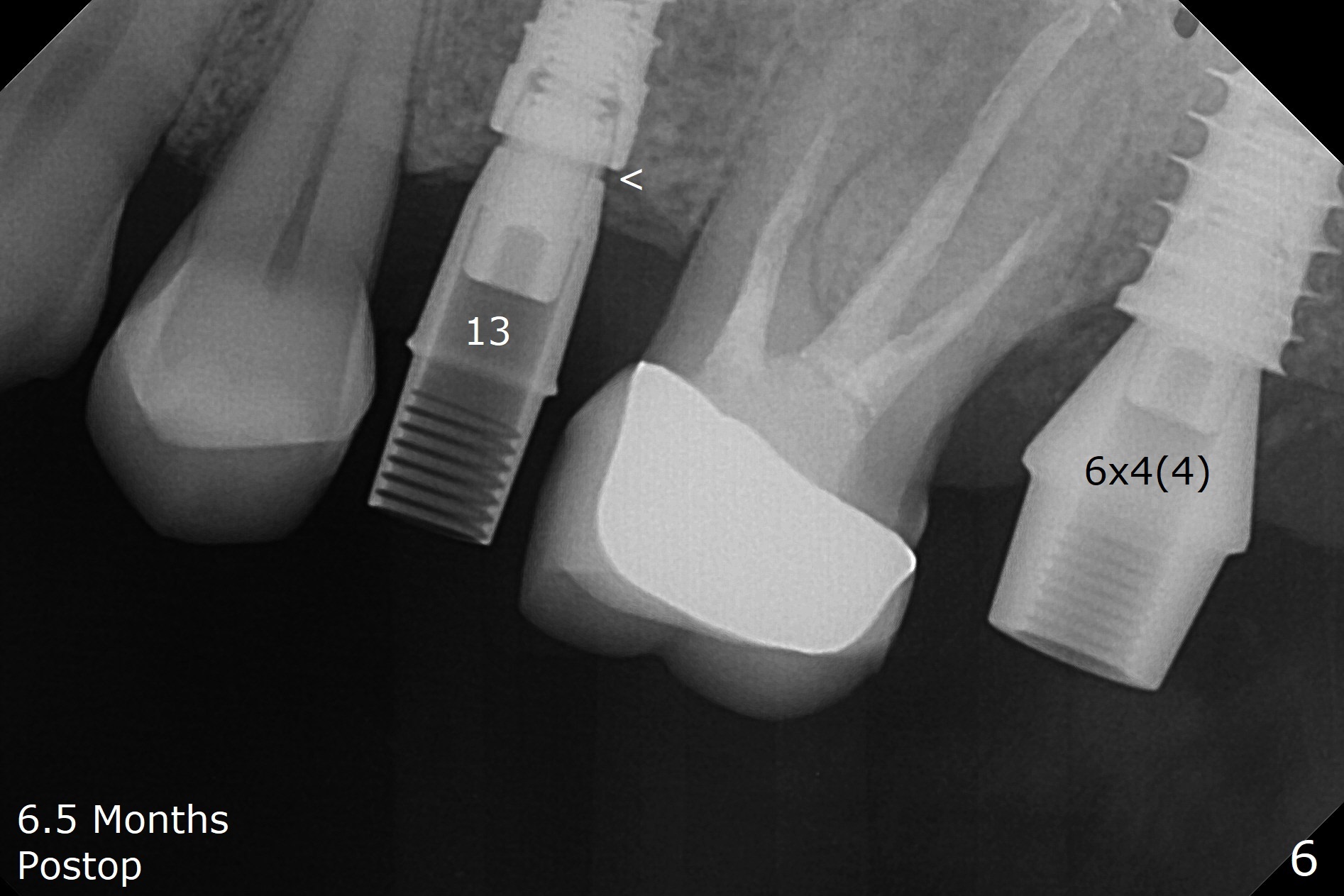

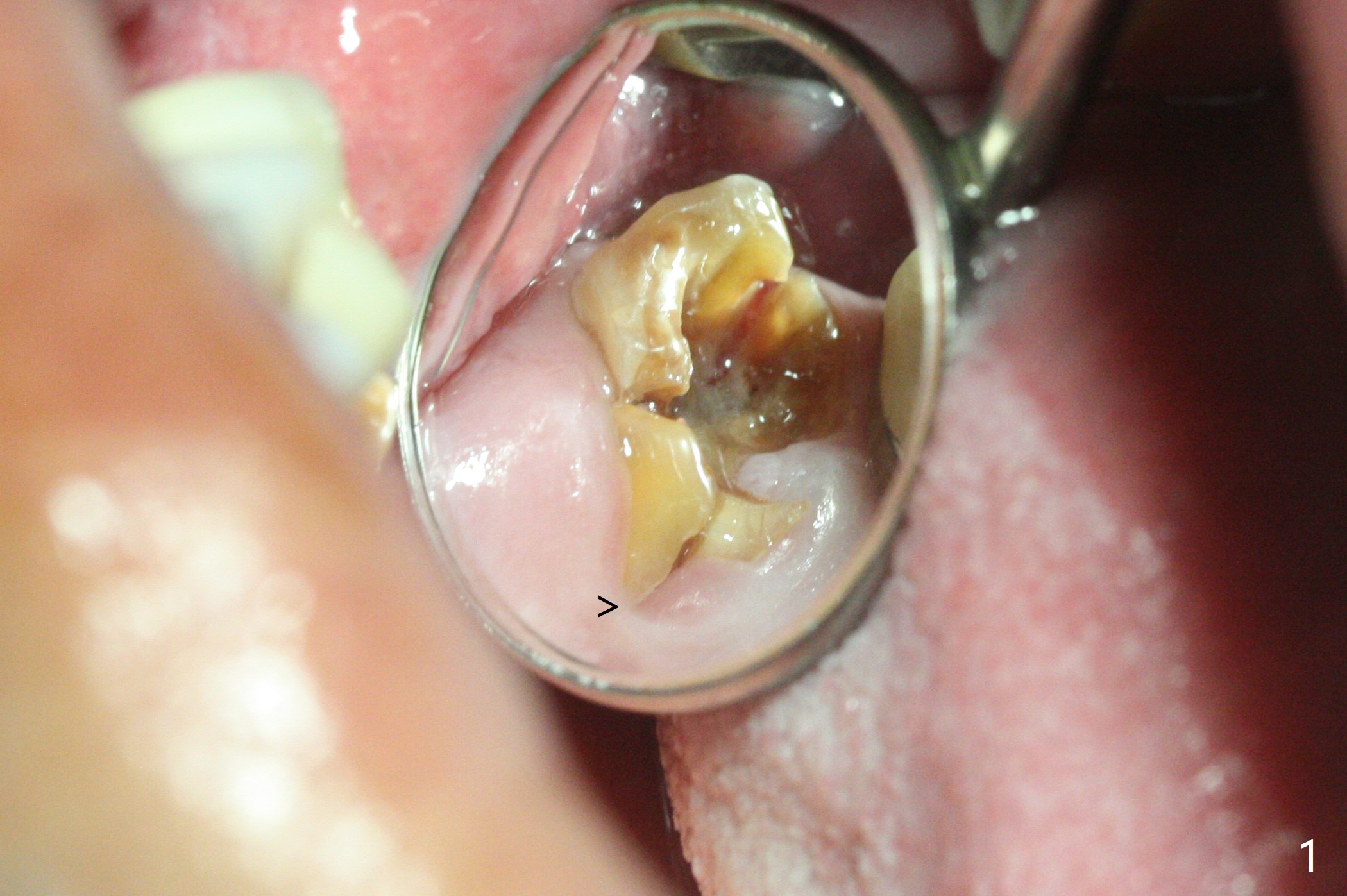

The palatal gingival margin of the tooth #15 with vertical root fracture is low, consistent with the low palatal plate after extraction (Fig.1 >).  With IS guide, a 5x11 mm IBS implant is placed in the septum with >5 mm the palatal gap.  After underprep in depth, a 3.5x9 mm achieves primary stability (Fig.2,3).  The palatal defect is repaired with allograft (*) and 2 pieces of PRF membrane.  The palatal soft tissue defect appears to have been repaired 6 months postop (Fig.4,5).  When a narrower abutment with longer cuff is placed at #15 (6x4(4) mm in Fig.6, as compared to 6.5x4(3) mm one in Fig.2), there is no gap between the implant and abutment.  In contrast there is one at #13 (Fig.6 <) when a 4x4(4) mm abutment is seated following removal of a 4x4 mm healing abutment.  After use of a 4.6 mm profile drill, the gap disappears (Fig.7).  Impression is taken.
