Precision Placement

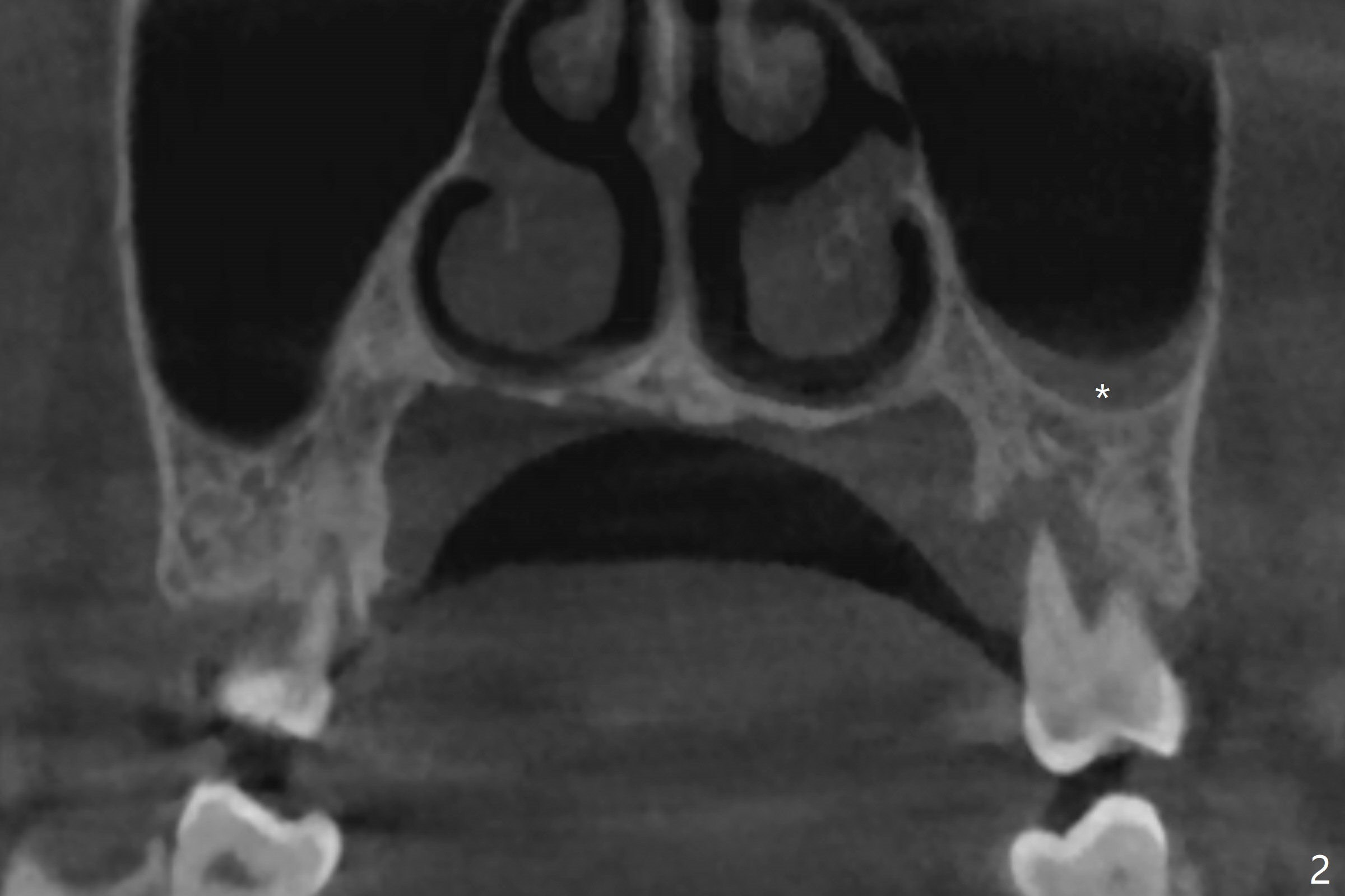

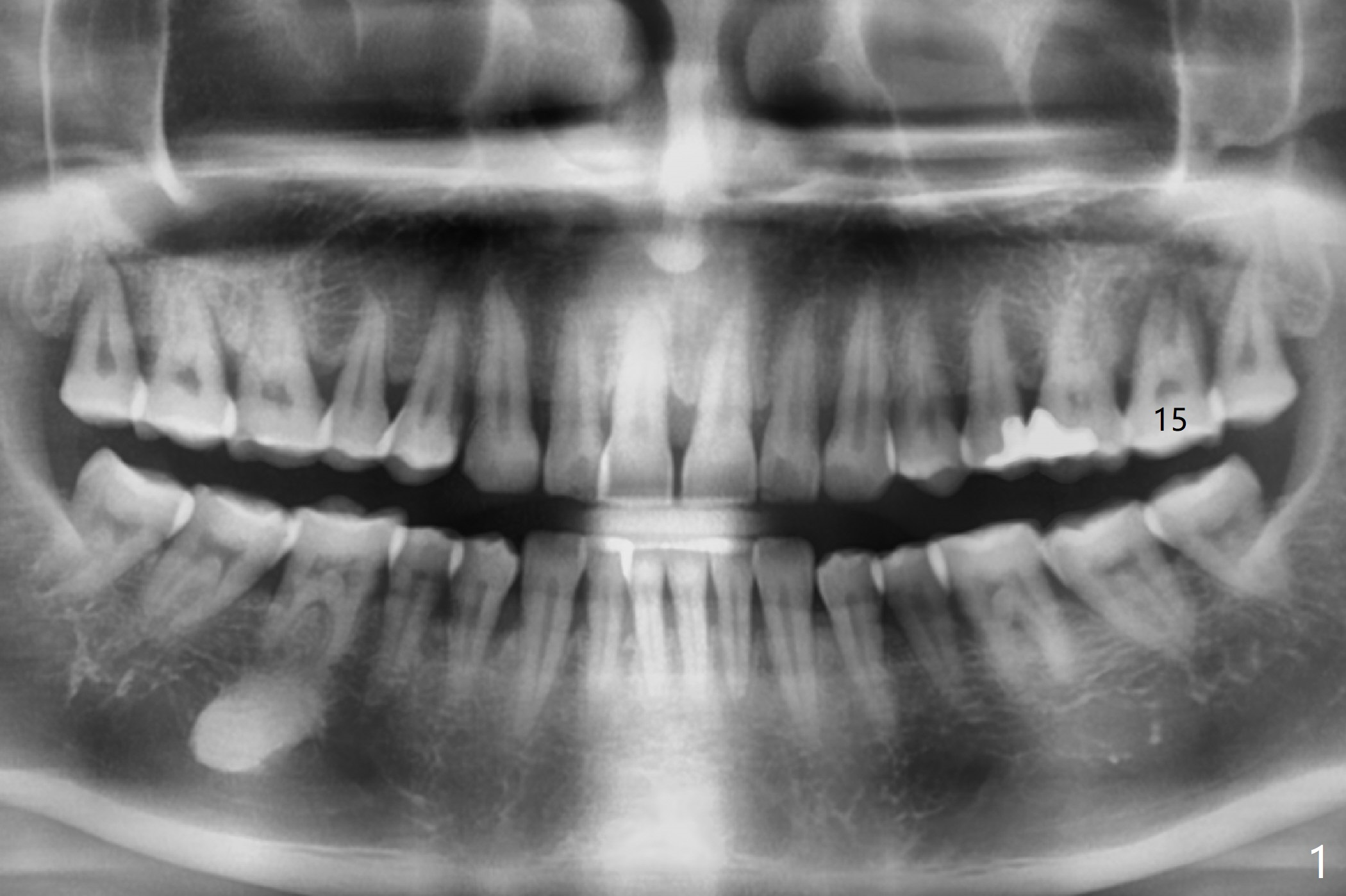

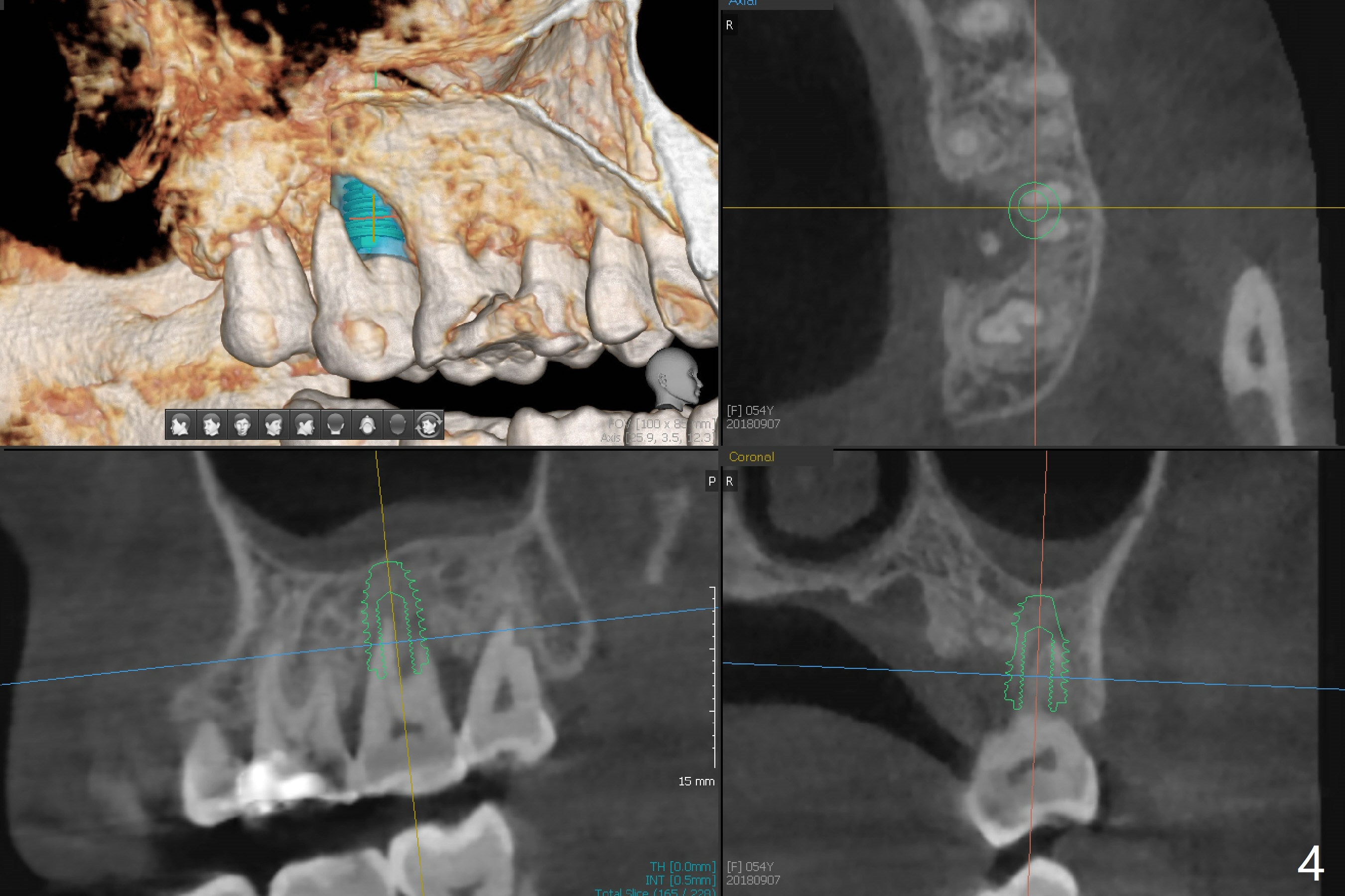

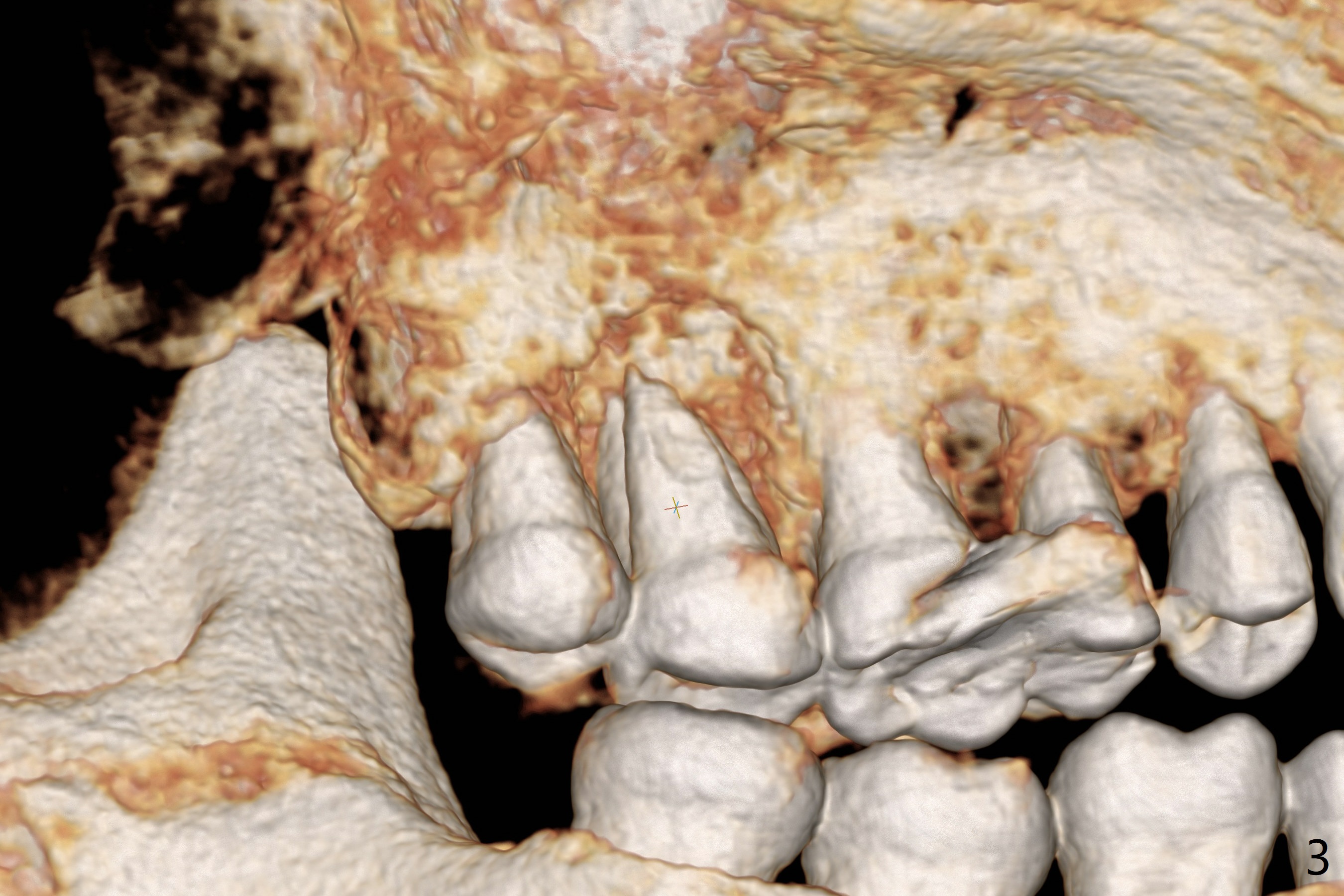

The 54-year-old woman (bruxer) agrees to have implant because of the loose tooth at #15 (Fig.1 (pan)). Since the left sinus membrane is thickened (Fig.2 *), an immediate implant will not be penetrated the sinus floor if primary stability is acceptable. If the sinus lift has to be done, PRF membrane/plug will be prepared. The large periradicular radiolucency is associated with the vertical palatal root fracture (Fig.3). A 5x8.5 mm implant is placed as buccal as possible with guide (Fig.4).
Return to
Upper
Molar Immediate Implant,
Prevent Molar Periimplantitis (Protocols,
Table),
Trajectory,
No Antibiotic
Application
Xin Wei, DDS, PhD, MS 1st edition 09/07/2018, last revision 01/31/2021
