Drill Stoppers

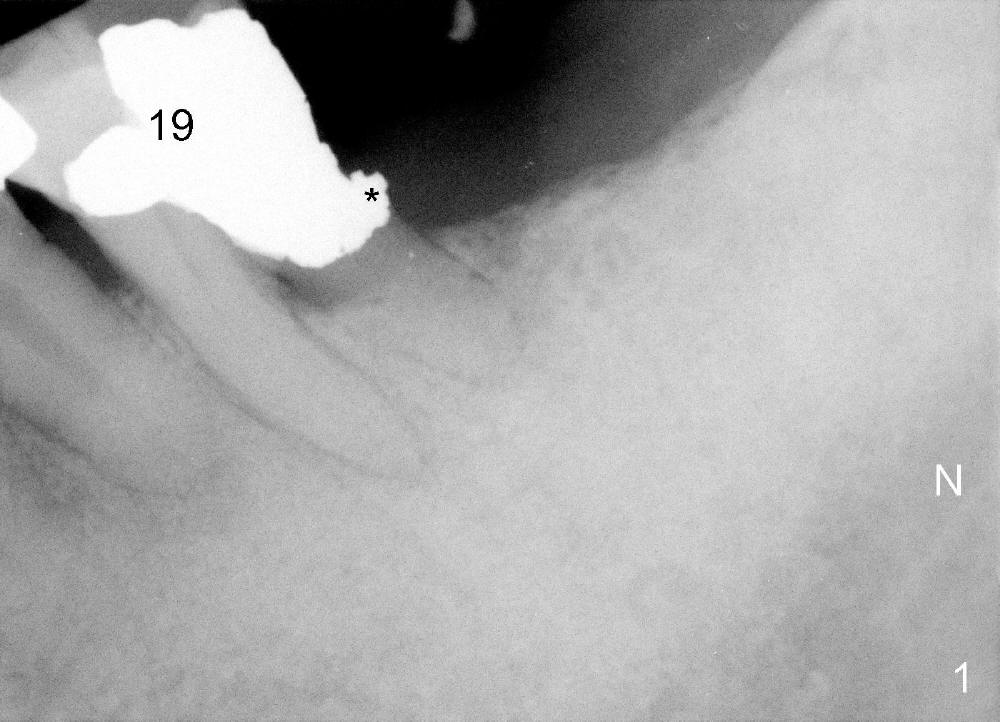

A 69-year-old man has poor dentition.  The tooth #18 is missing, while the tooth #19 has large DO amalgam with overhang.  Although there is apparent periapical radiolucency associated with the distal root, the tooth has no percussion pain.

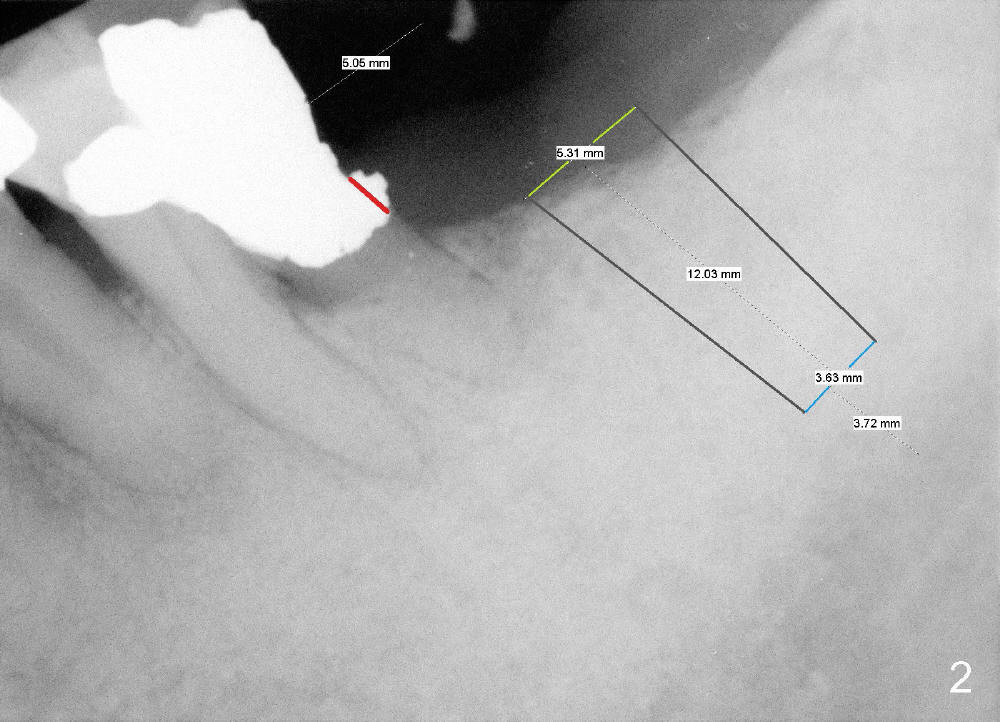

After local anesthesia, amalgam overhang (*) in the distal cervical area of the #19 is examined.  If it is subgingival, a small incision is made to expose and trim it (Fig.2 red line). If it is easily removed without incision, a 4 mm tissue punch is used for #18 osteotomy.  For safety, a submerged implant system will be chosen for this case, since the surgical kit has drill stoppers.  The first intraop PA will be taken following 2 mm pilot drill at 8-10 mm deep.  A 5.3x12 mm implant is expected (Fig.2)

Return to Professionals

Xin Wei, DDS, PhD, MS 1st edition 01/06/2015, last revision 03/14/2015
