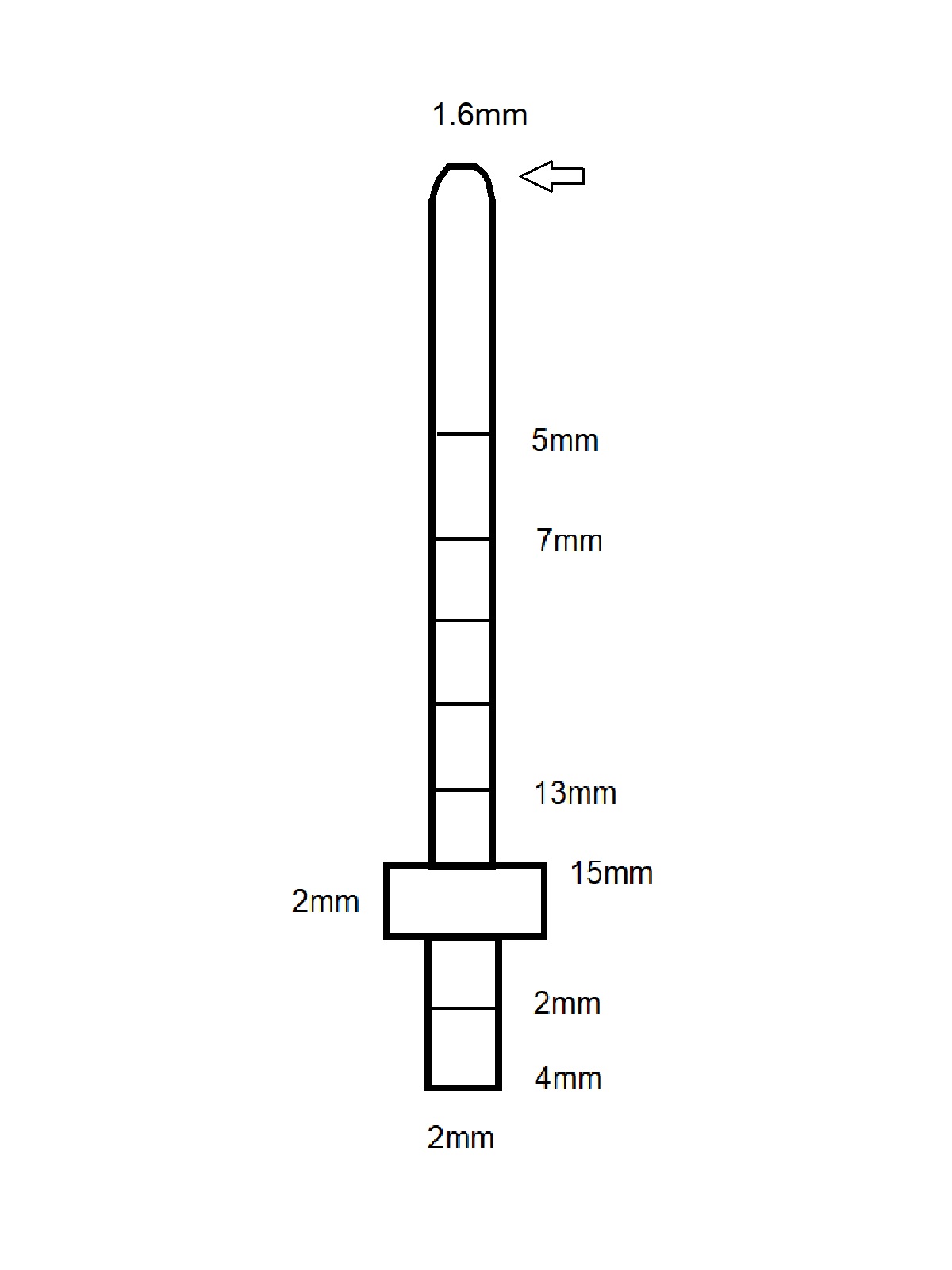

Full Length, Rounded end, Narrow Stopper Parallel Pin for Immediate
Implants
- Using 1.6 mm pilot drill as parallel pin (PP) is unsafe and inconvenient
for X-ray taking because of the long handle
- Full length PP double confirms bone
height
- The apical end of PP should be somewhat pointed (arrow), similar to that of the
pilot drill so that PP can be basically fully inserted
- Narrow stopper is easy to insert in a narrow space
- The other end for soft tissue height
IBS
Xin Wei, DDS, PhD, MS 1st edition 08/16/2017, last revision
08/19/2017
