How to Correct Cross Bite?

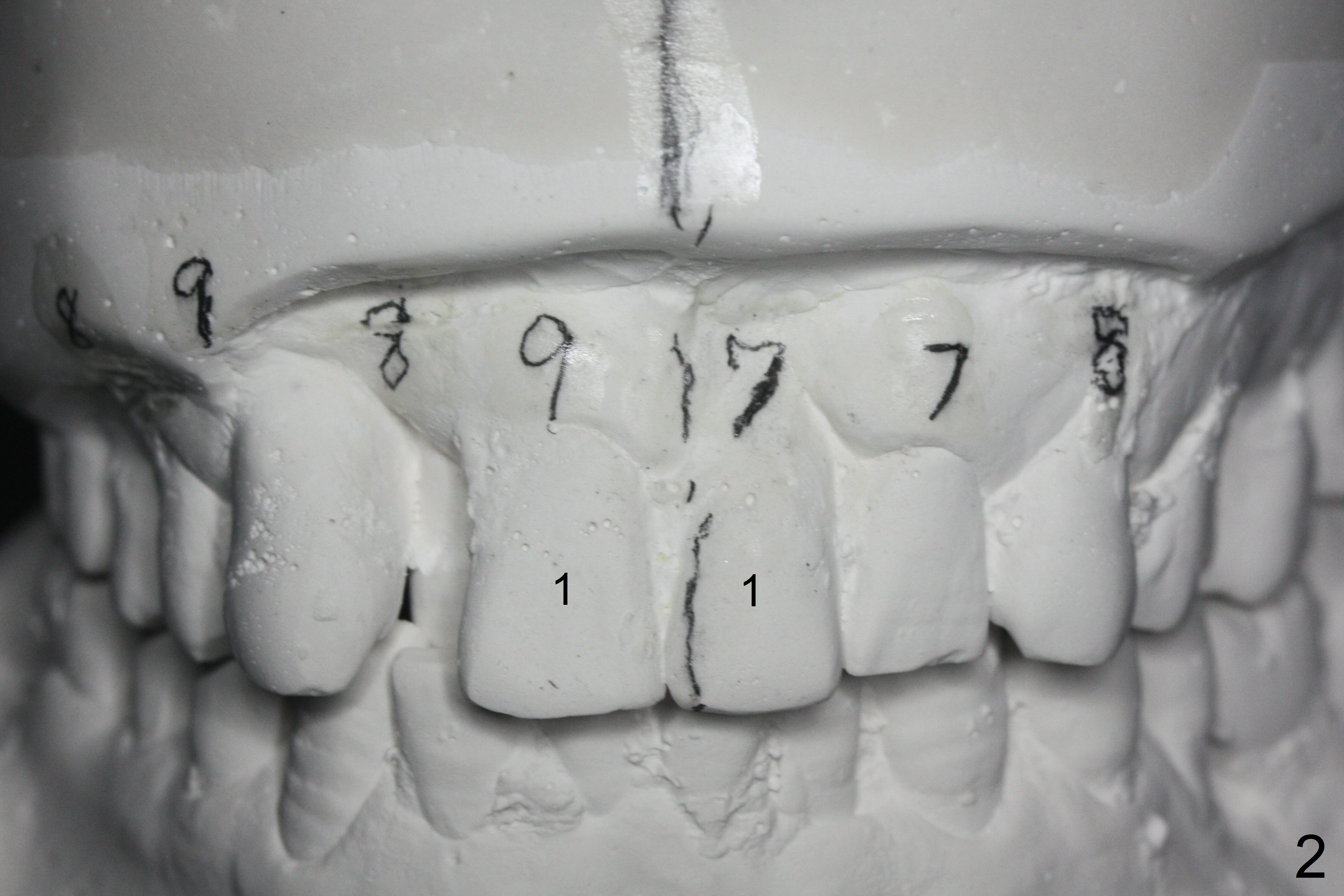

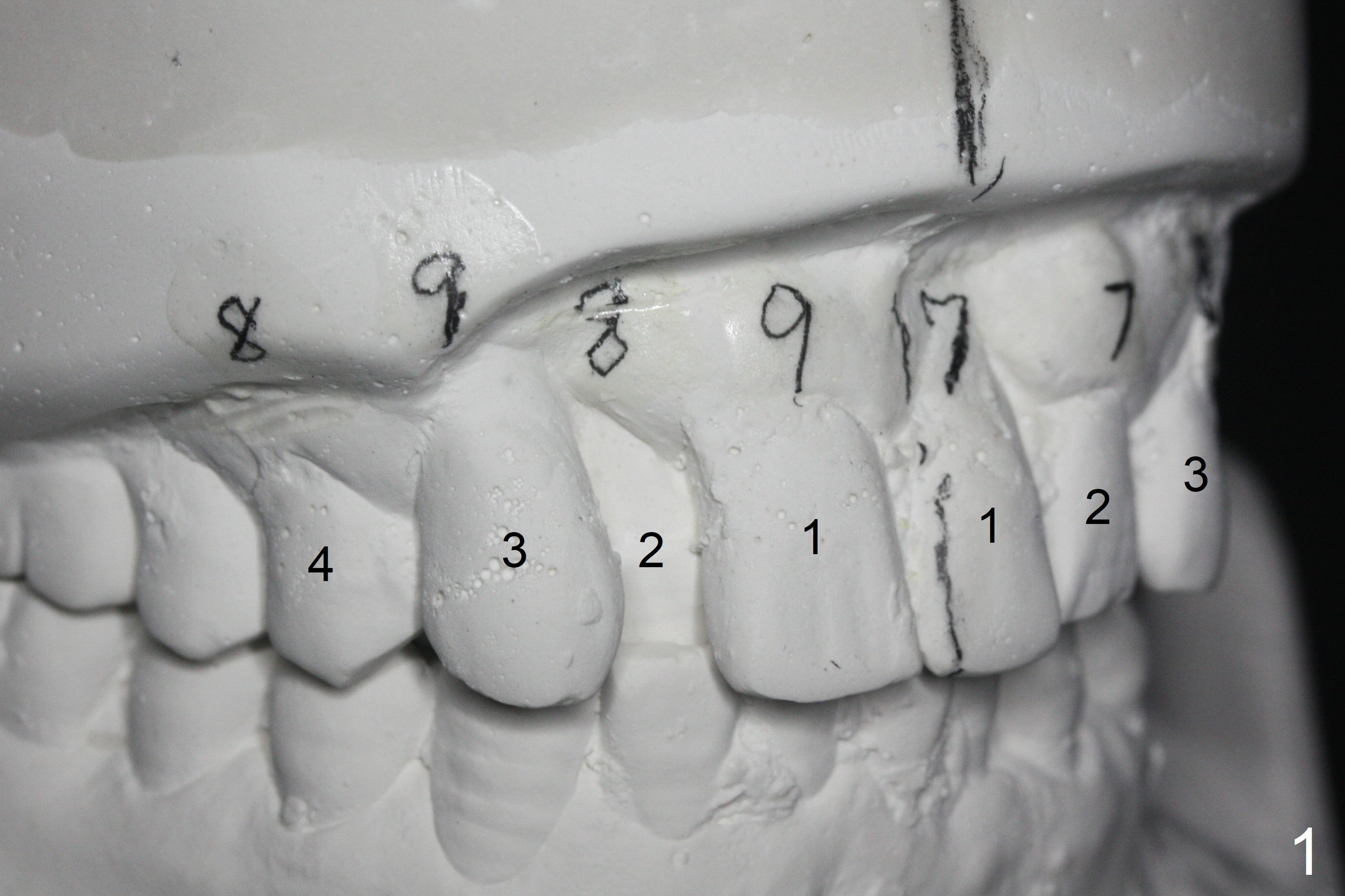

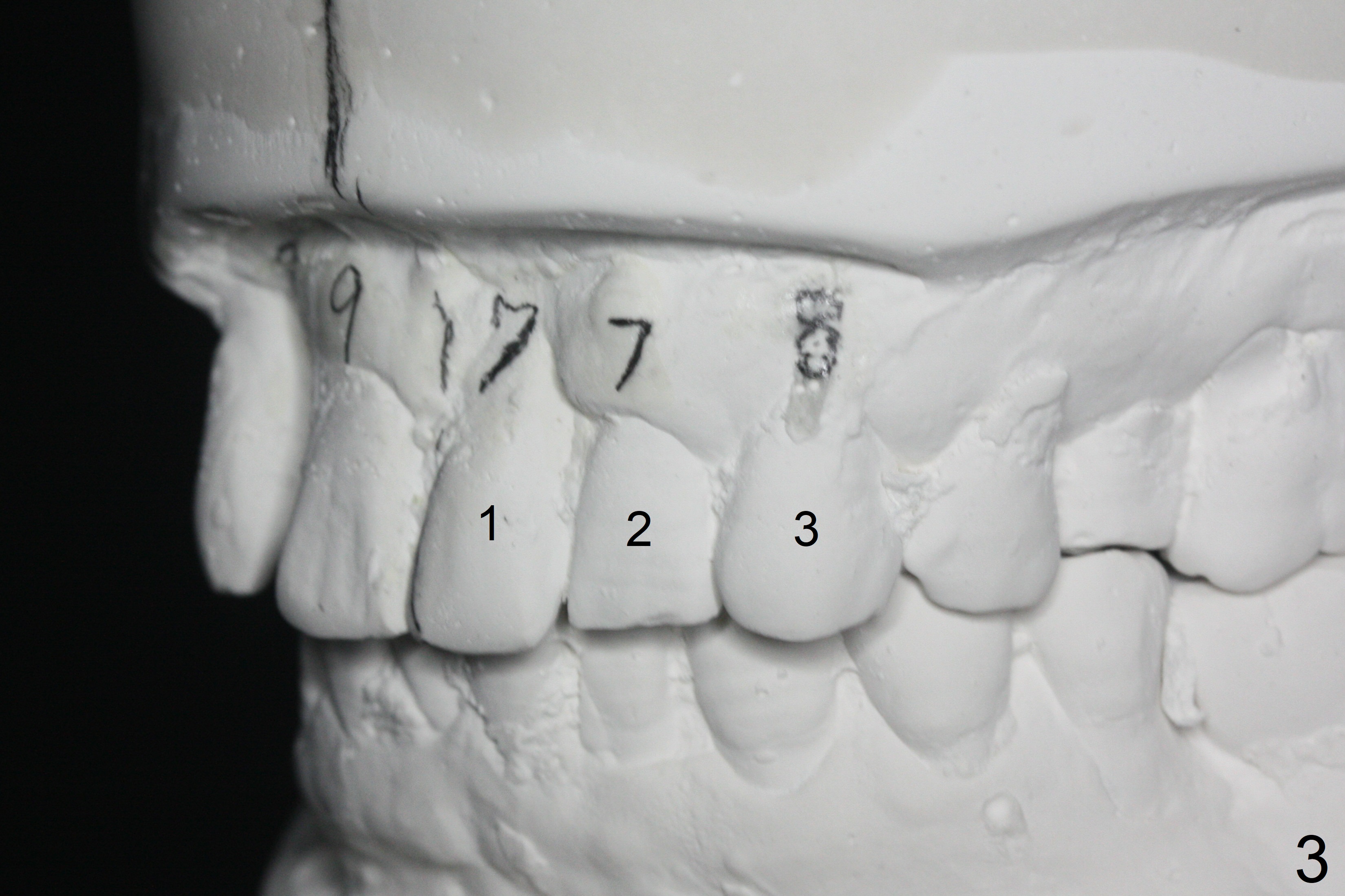

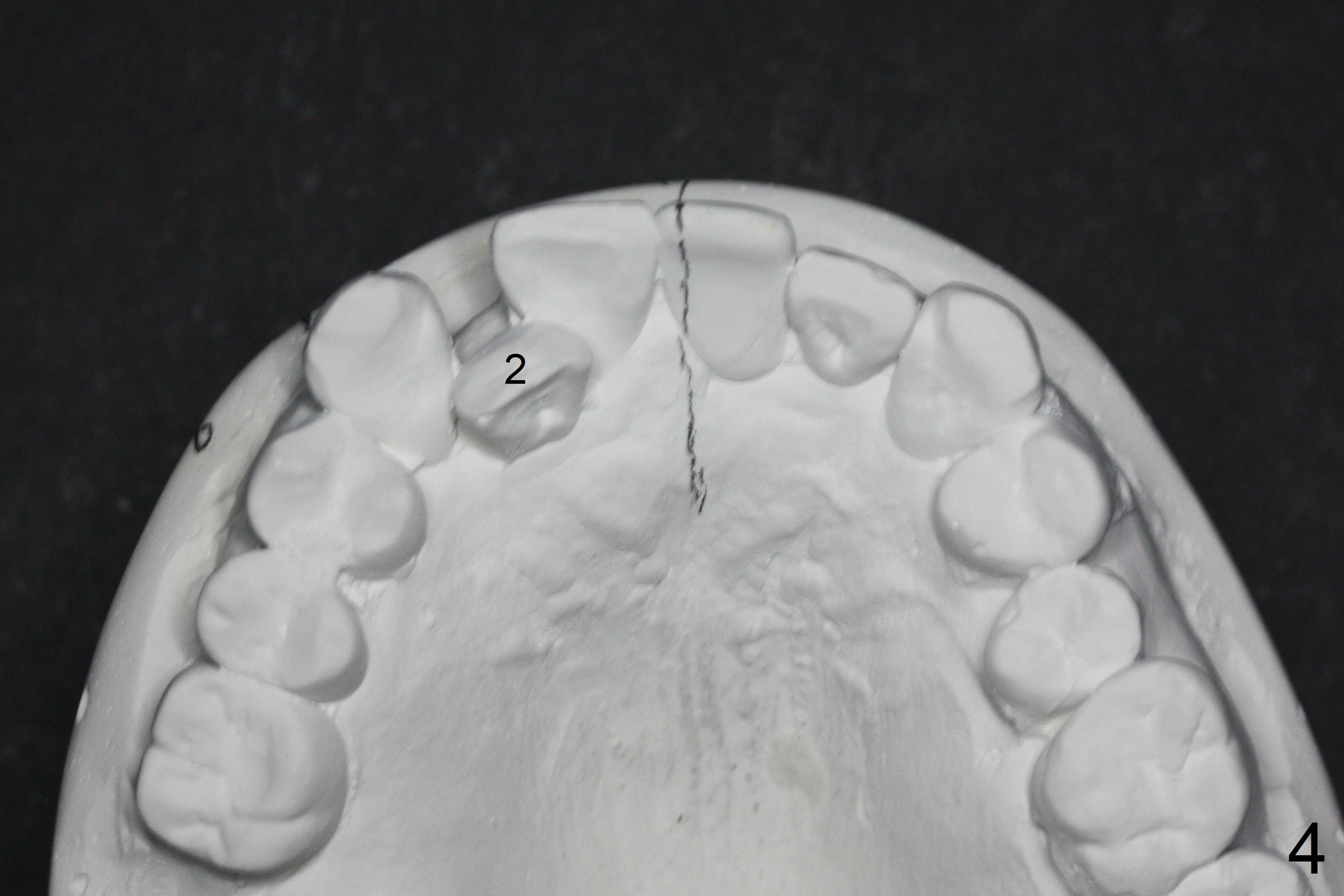

In spite of several warnings against orthodontic treatment for a 47-year-old man with chronic periodontitis, he requests it once more time before UL1 implant restoration.  How to correct UR2 cross bite (Fig.1-4)?  The number in pencil represents the width of each tooth in mm.  For example the width of UR1 is 9 mm, whereas that of UL1 is 7 mm (Fig.2).  The pencil line represents the facial midline and the future upper dental midline.  Ideally the UL1 should be moved distally ~ 1 mm.

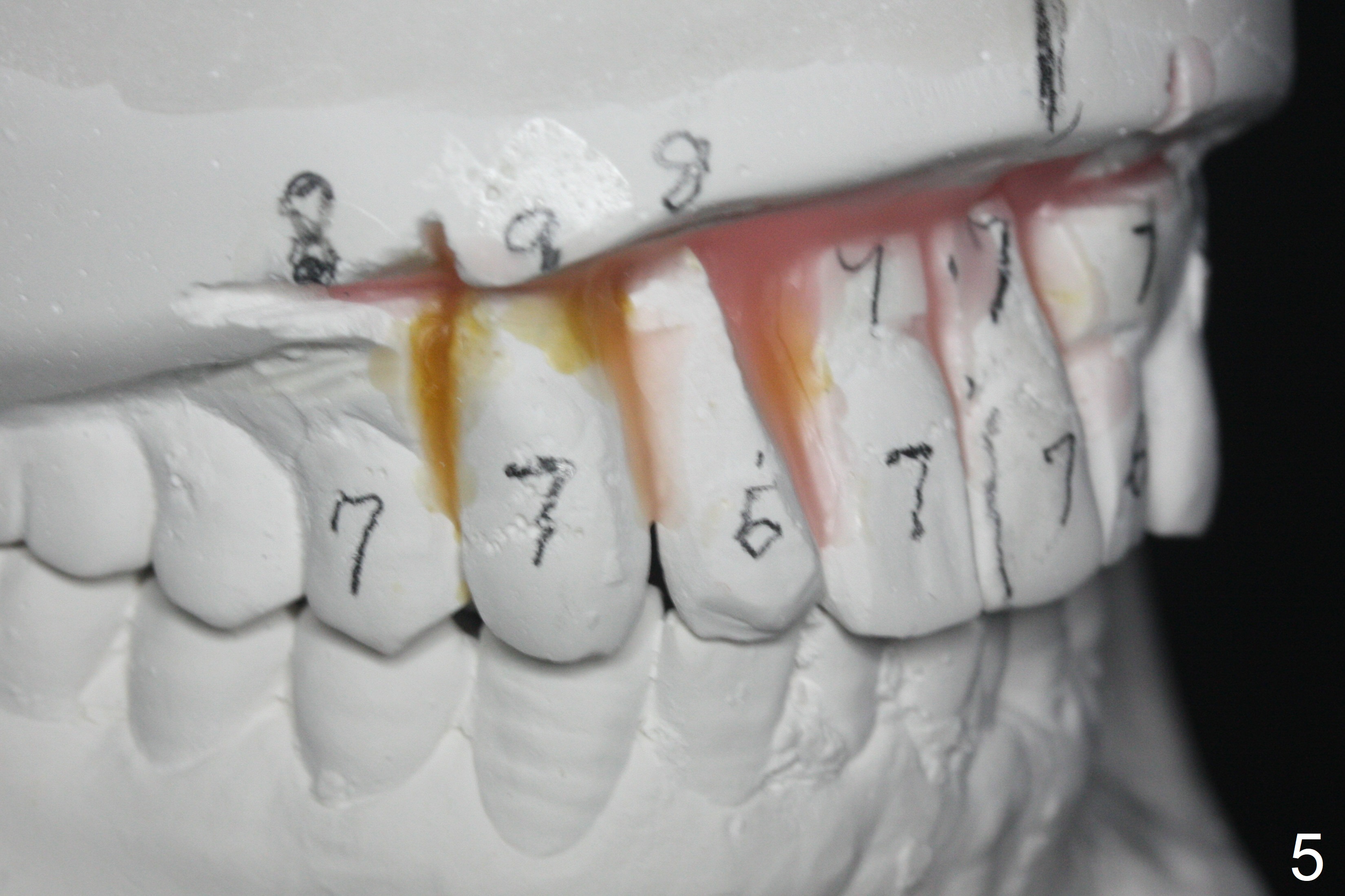

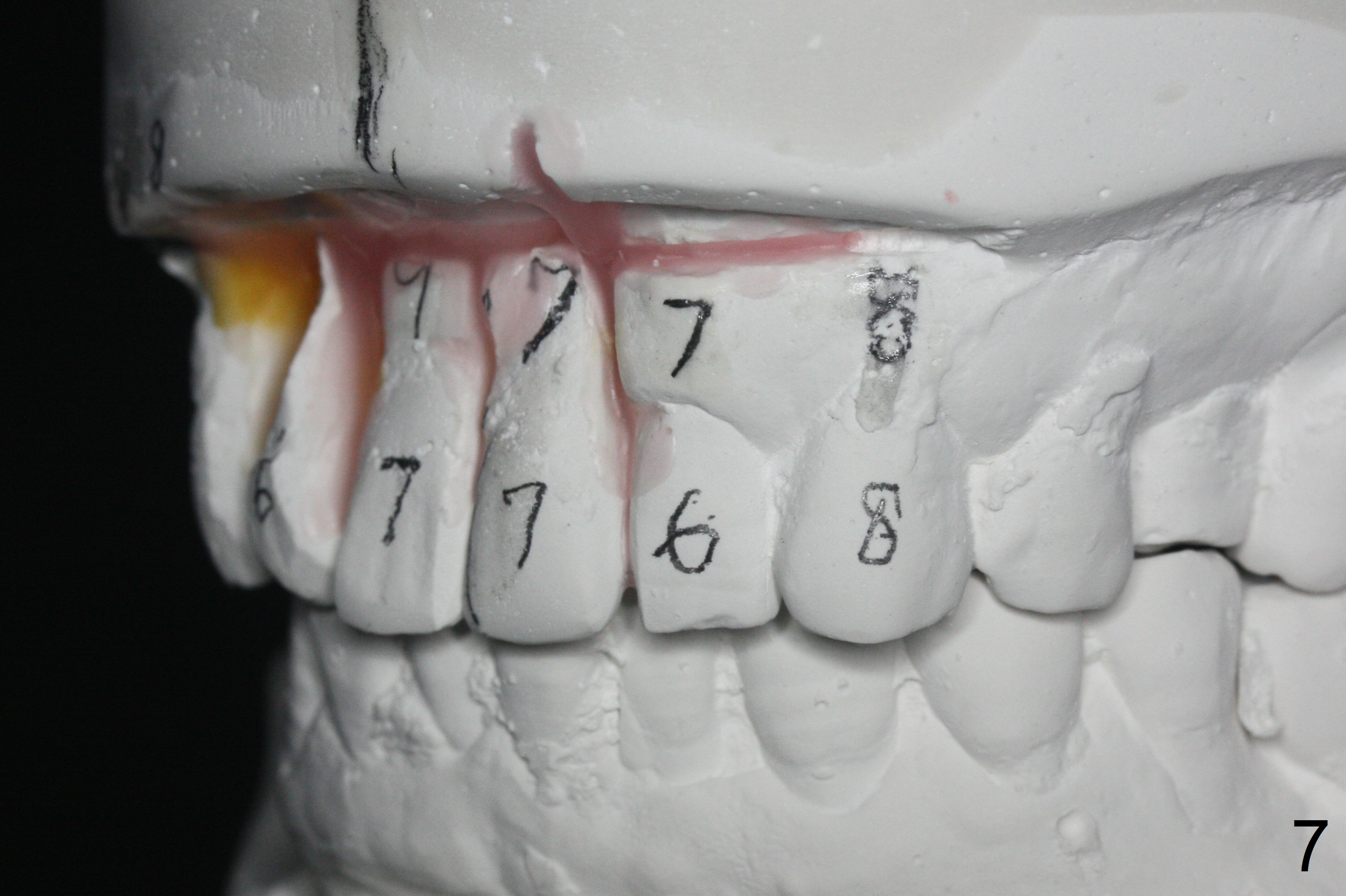

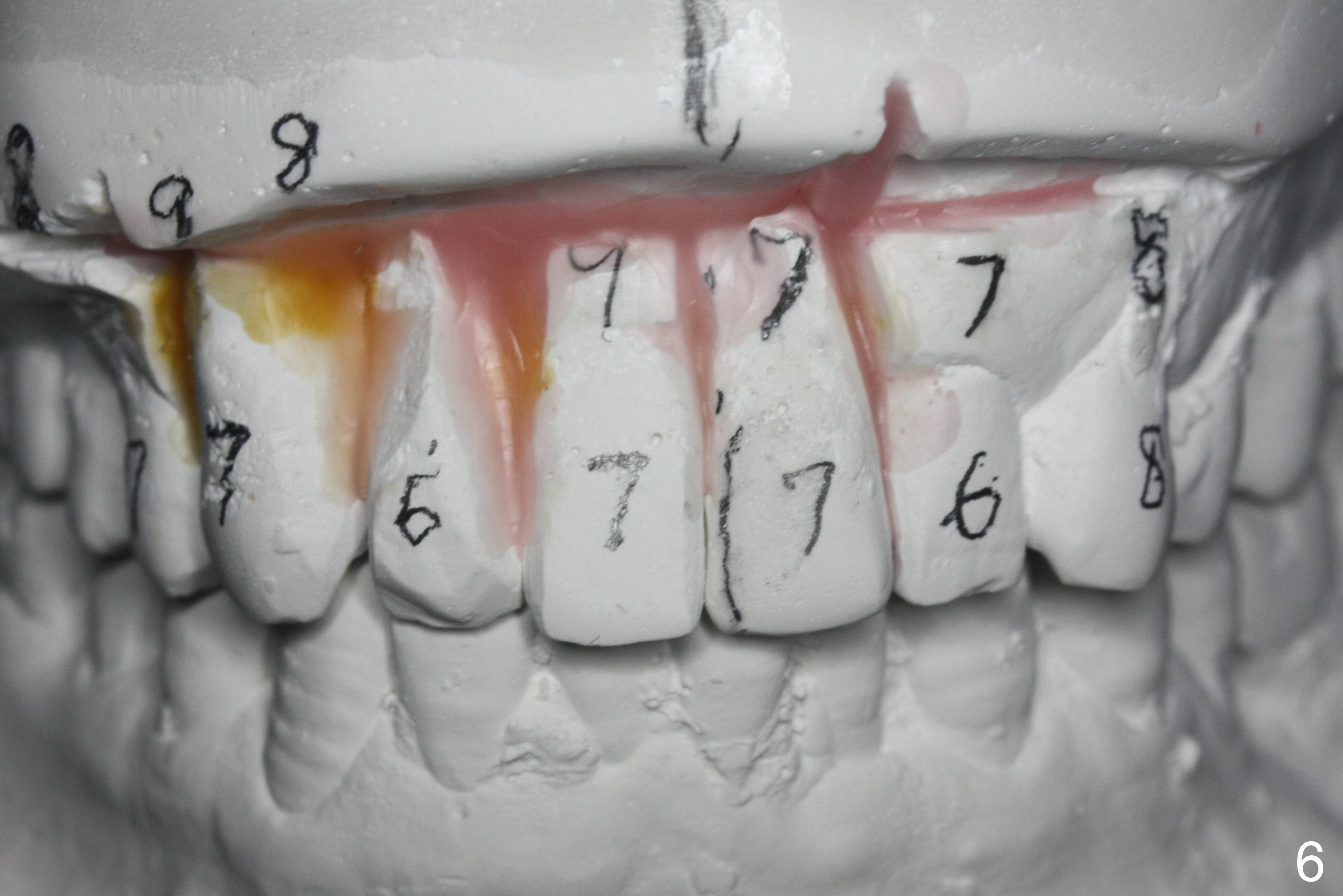

Since UL2 is the most severely affected periodontically, it will be not moved orthodontically except mesial reduction for 1 mm (Fig.6,7).  It allows distalization of UL1 for 1 mm.  In fact the provisional will be modified after changing to an angled abutment (most likely).  UR1-3 will be reduced 1 mm each proximal surface, whereas the mesial surface of UR4 will be reduced 1 mm (Fig.5,6).

Return to Multiple Tooth Immediate Implant, Armaments Ortho Cases

Xin Wei, DDS, PhD, MS 1st edition 06/16/2018, last revision 09/03/2018
