Dear Dr. Wei,

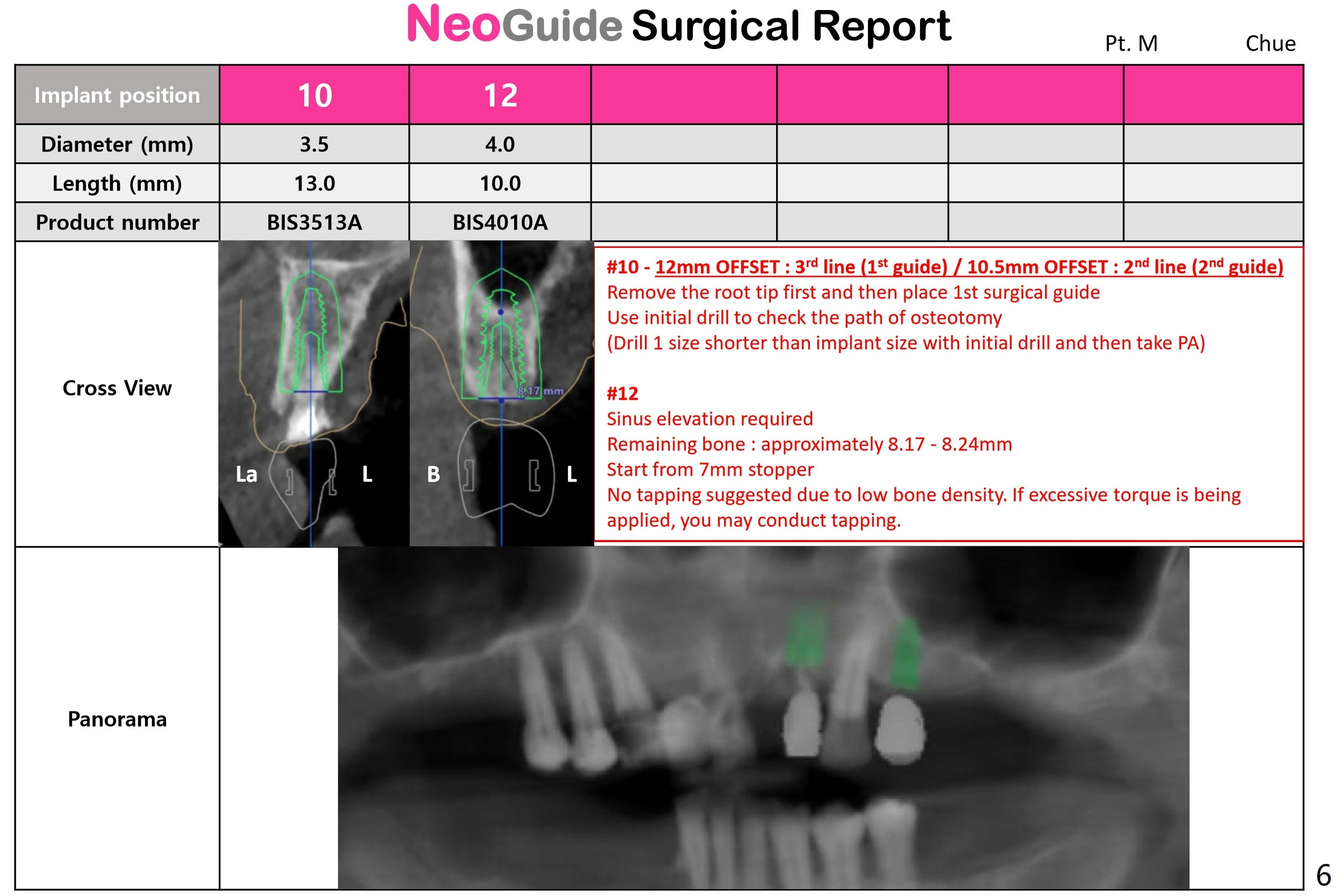

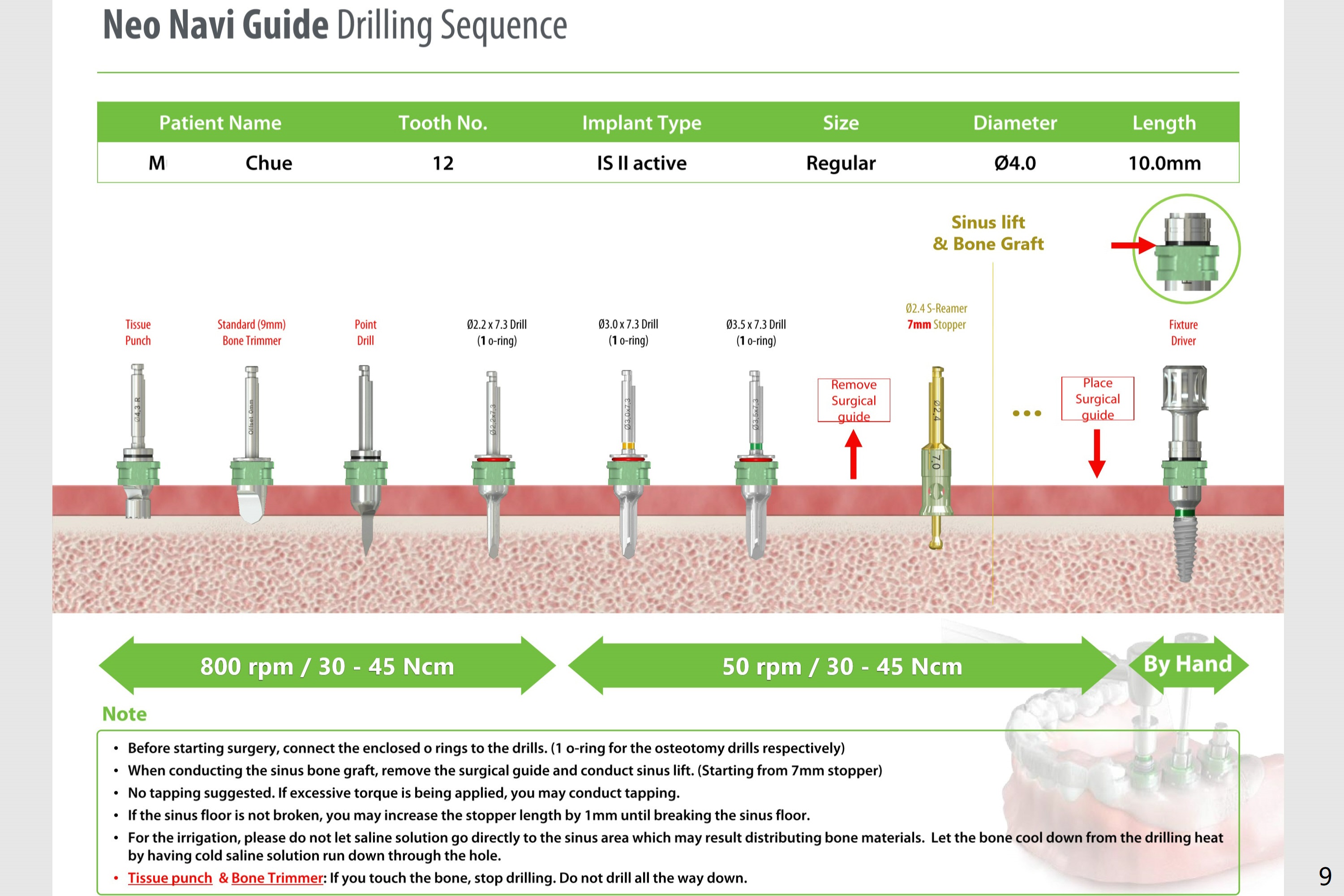

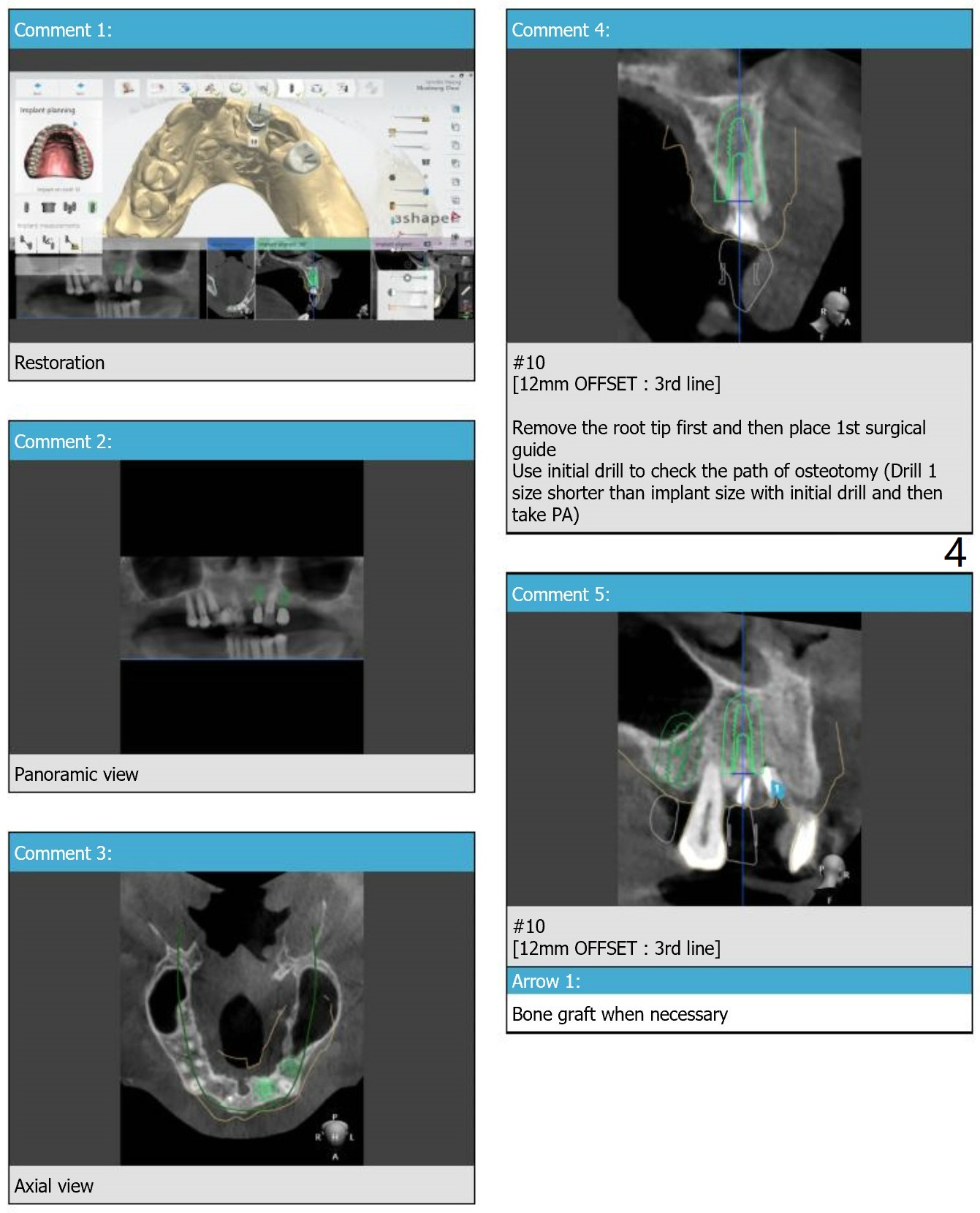

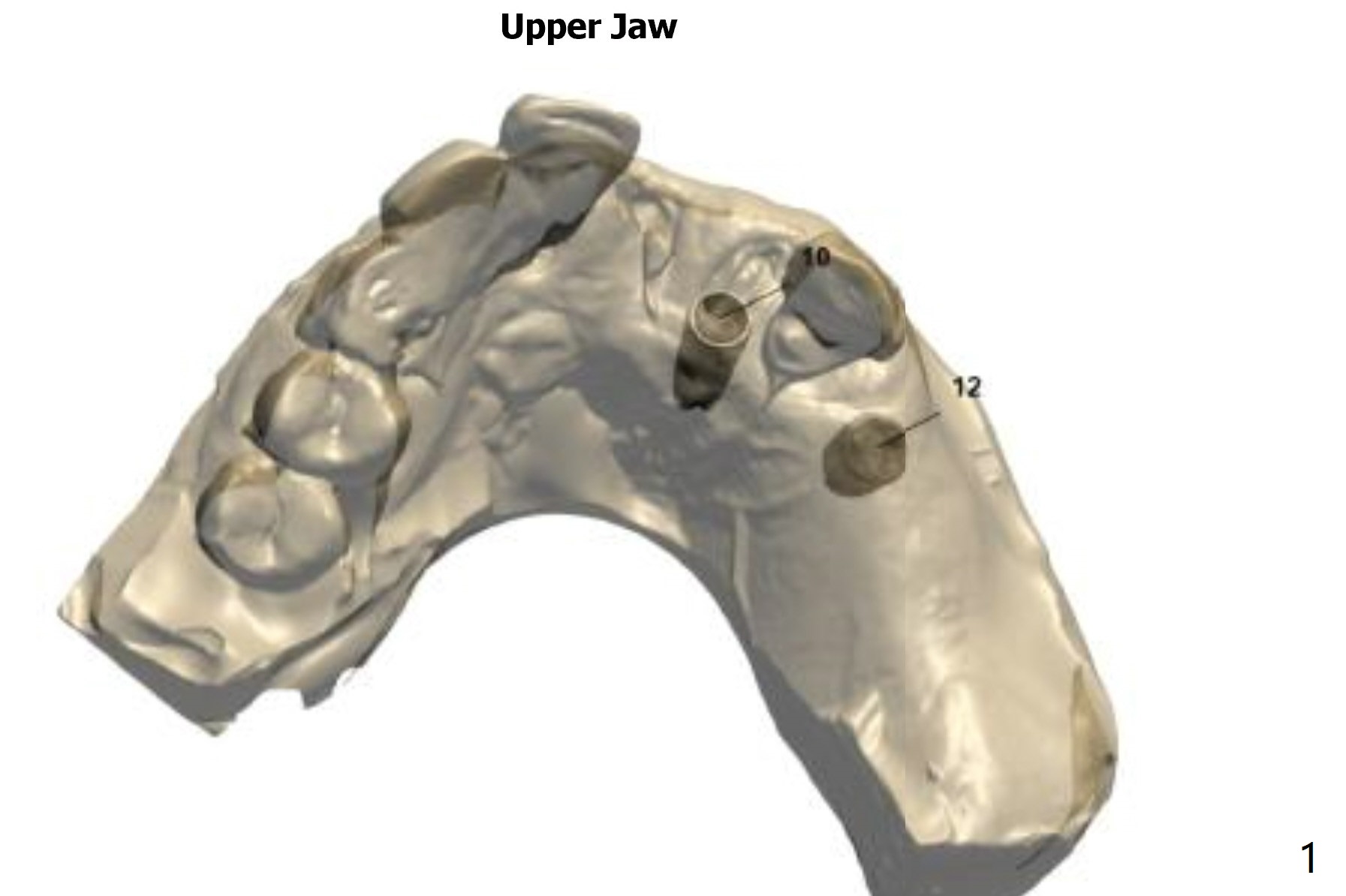

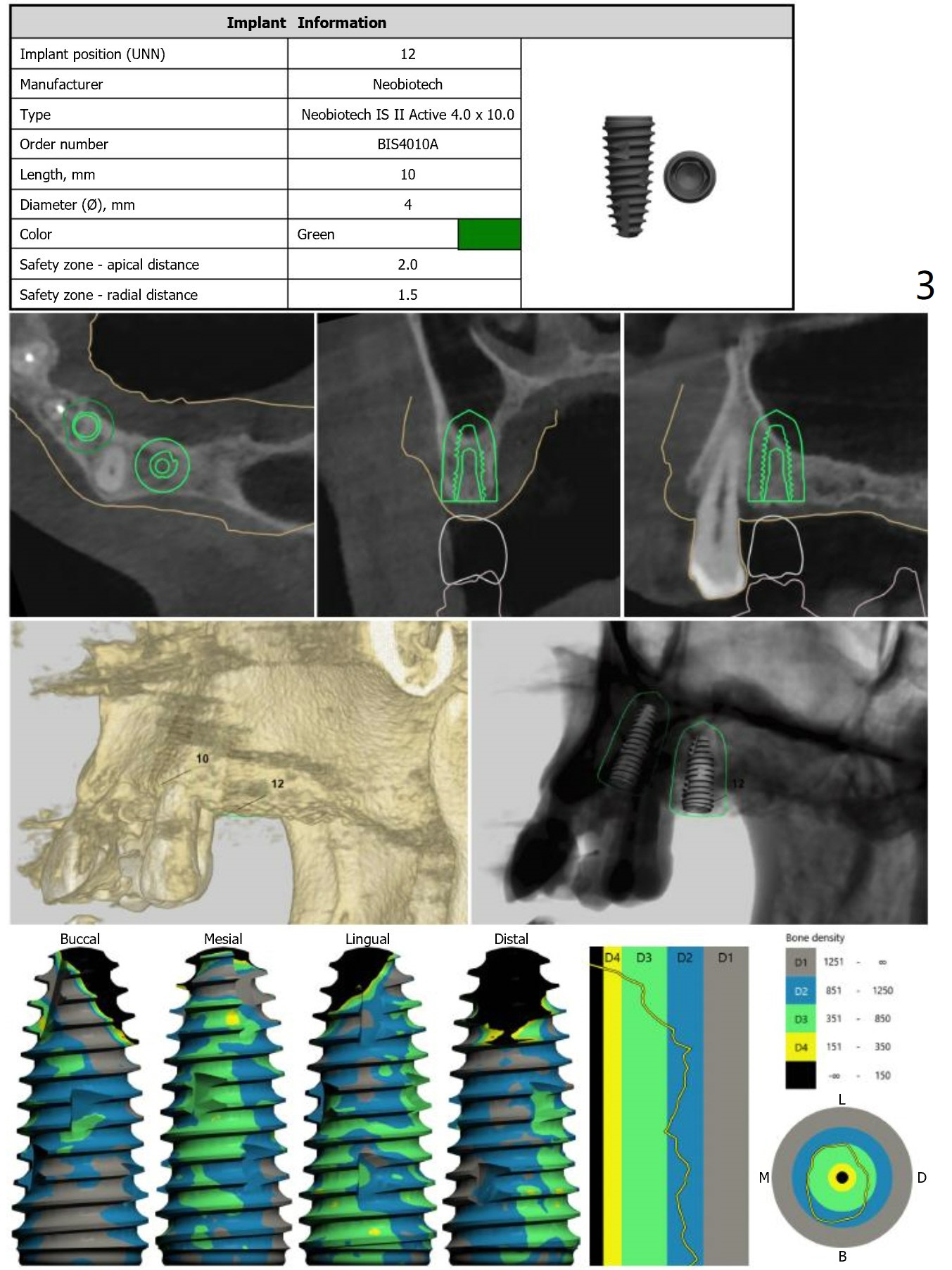

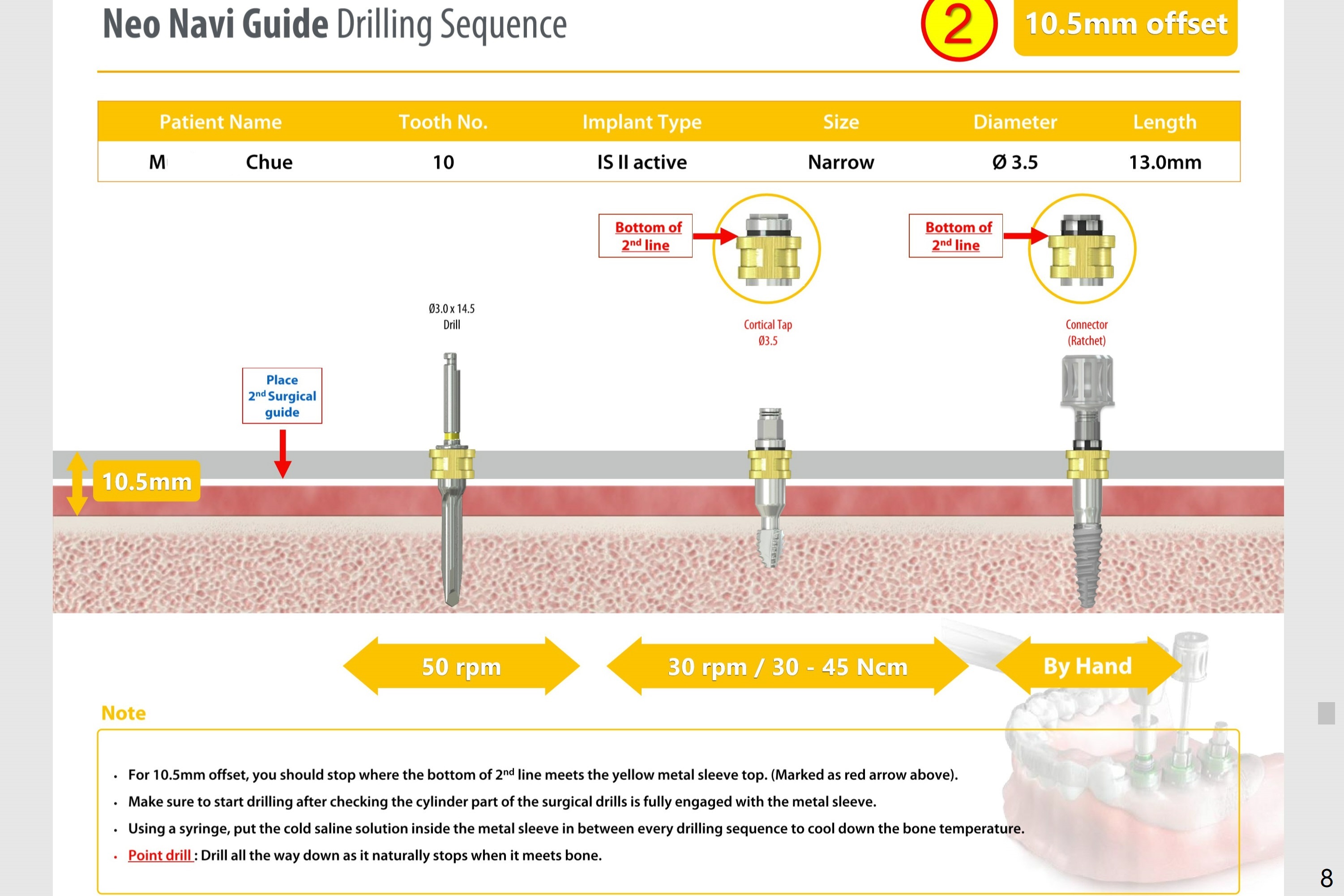

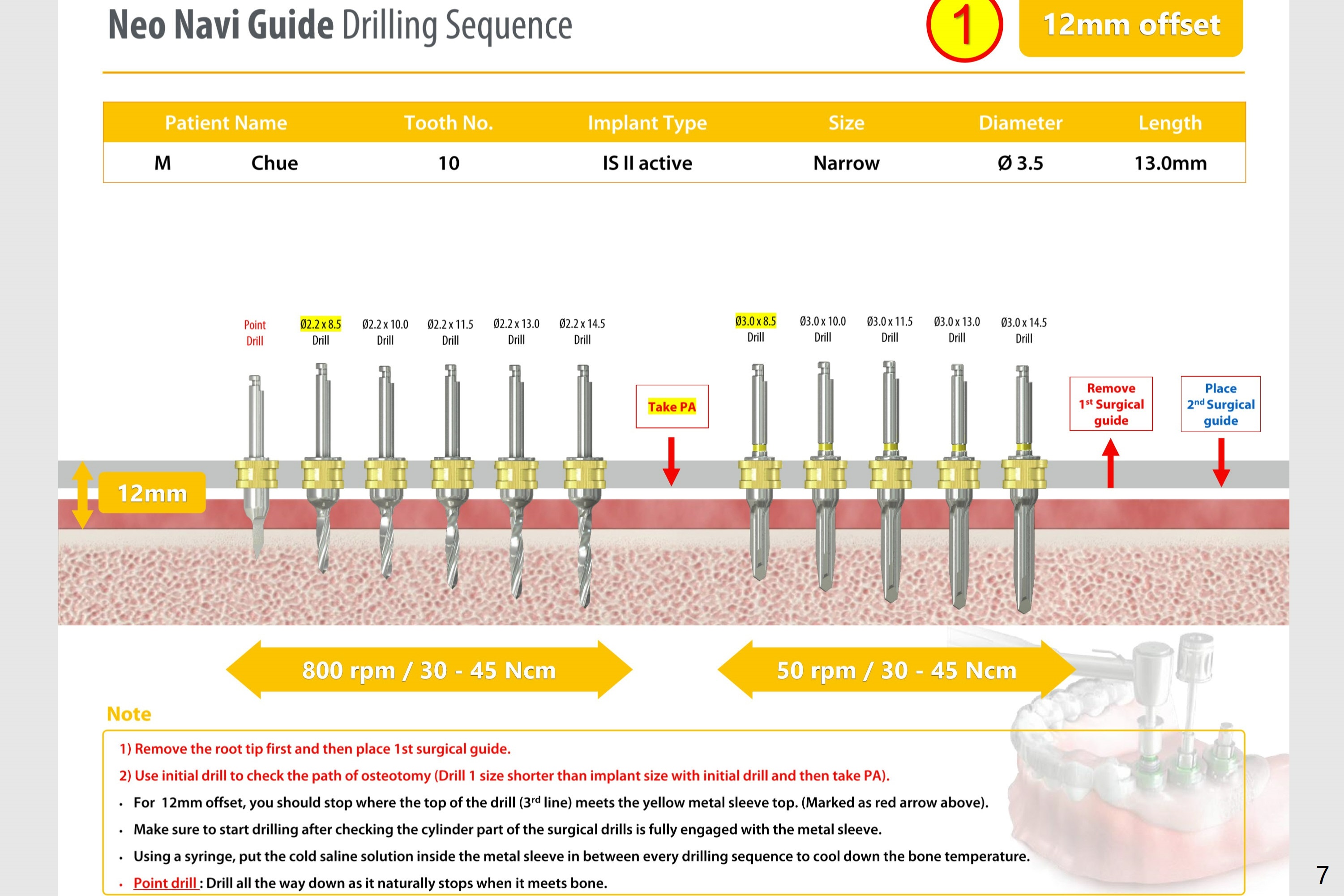

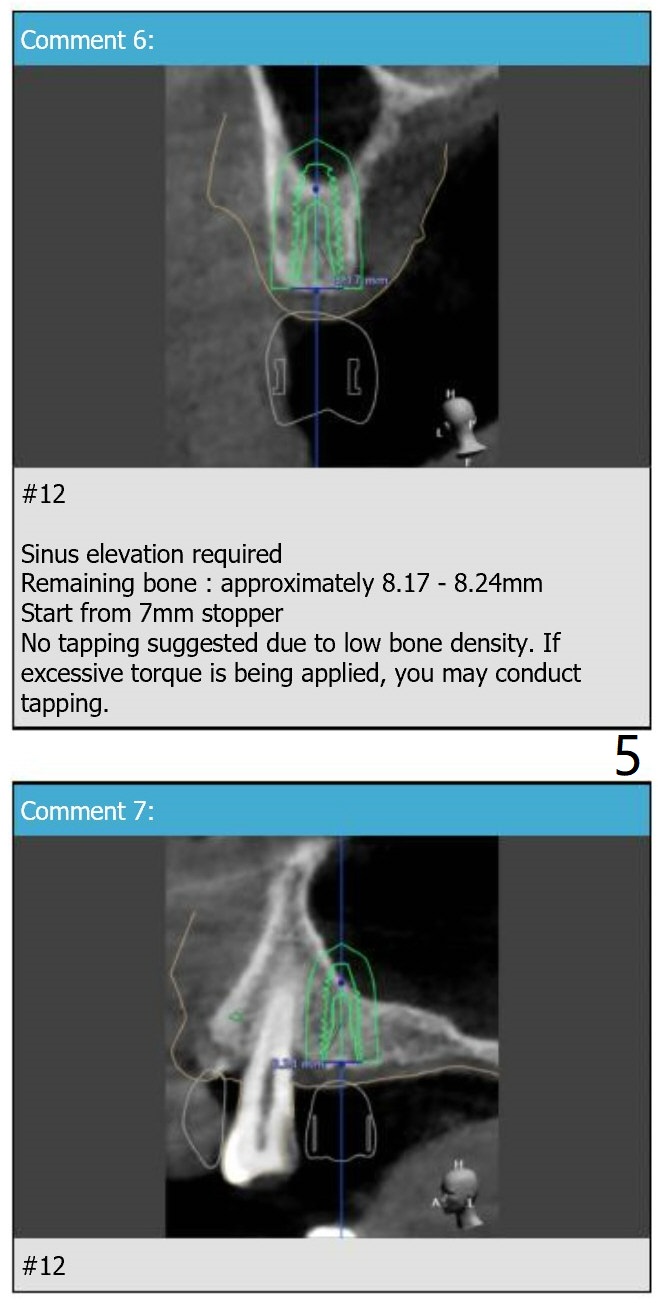

We have re-conducted the implant planning of this patient for #10 & 12. This case requires both narrow navi guide kit and regular navi guide kit. And for #10, 2 surgical guides with different offsets will be sent.

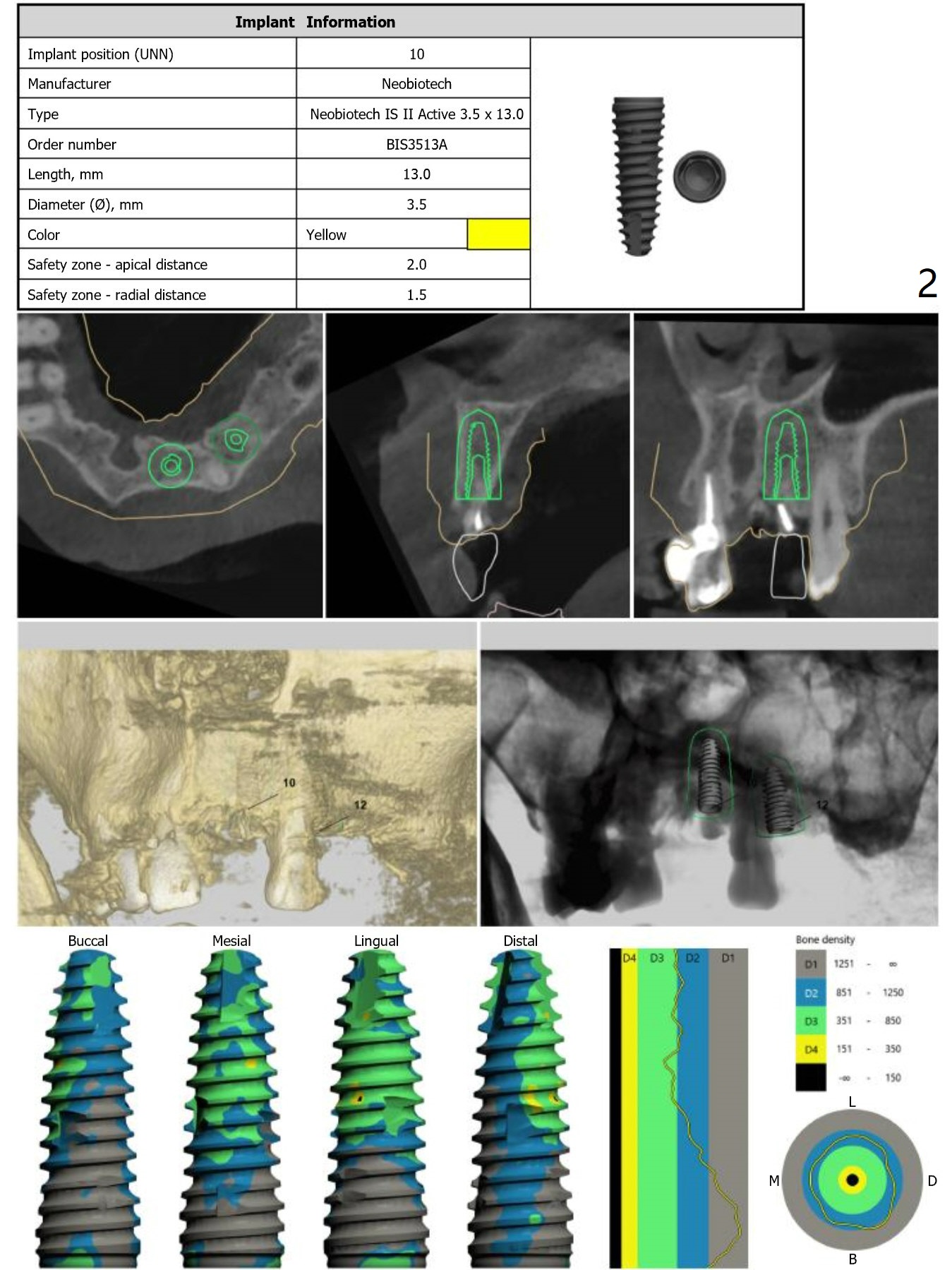

The site of #10 is chosen over #9 for an implant and cantilever FPD because of the bone width and further away from the Incisive Foramen.
