Narrow Ridge at Lower Canine

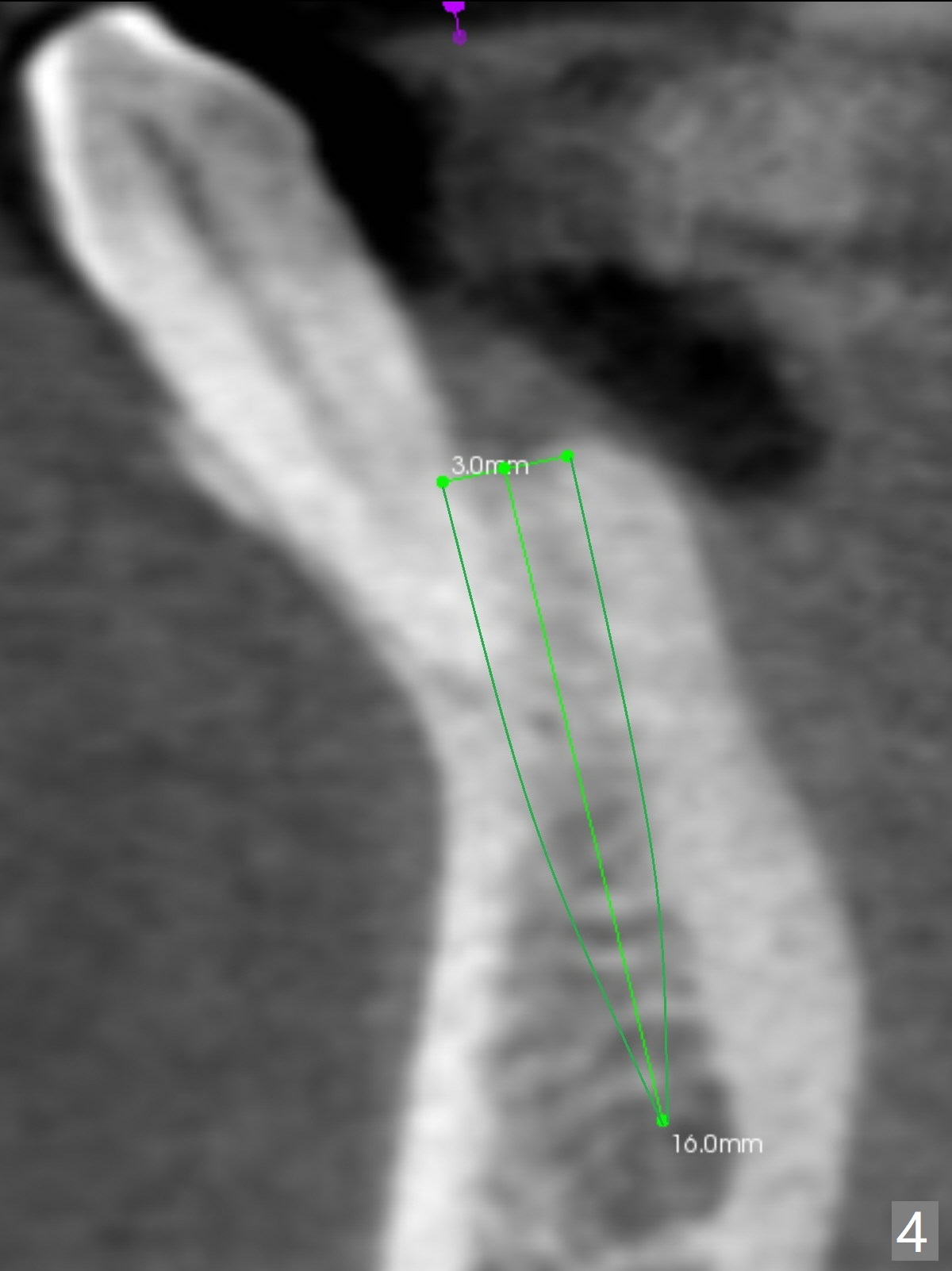

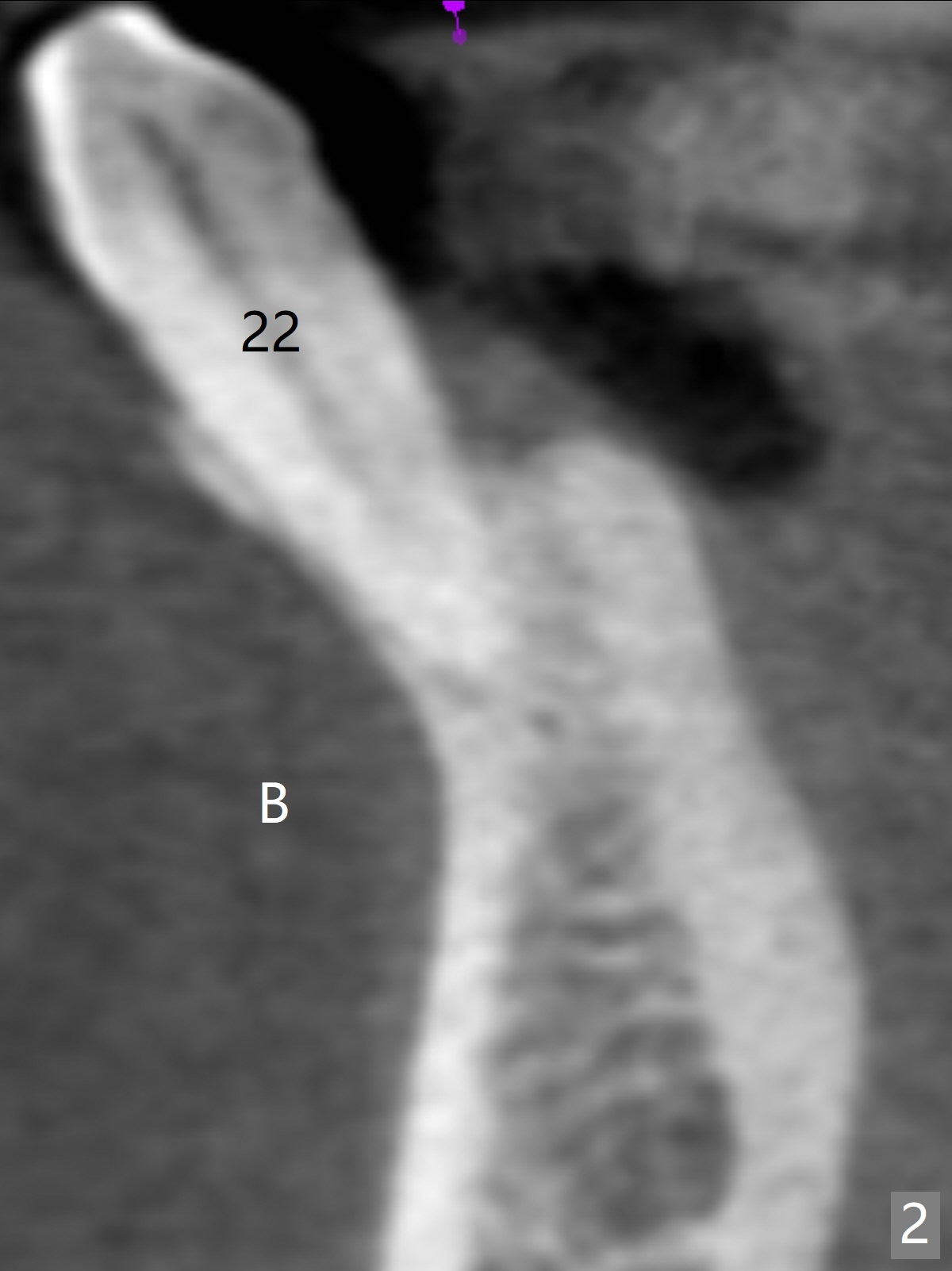

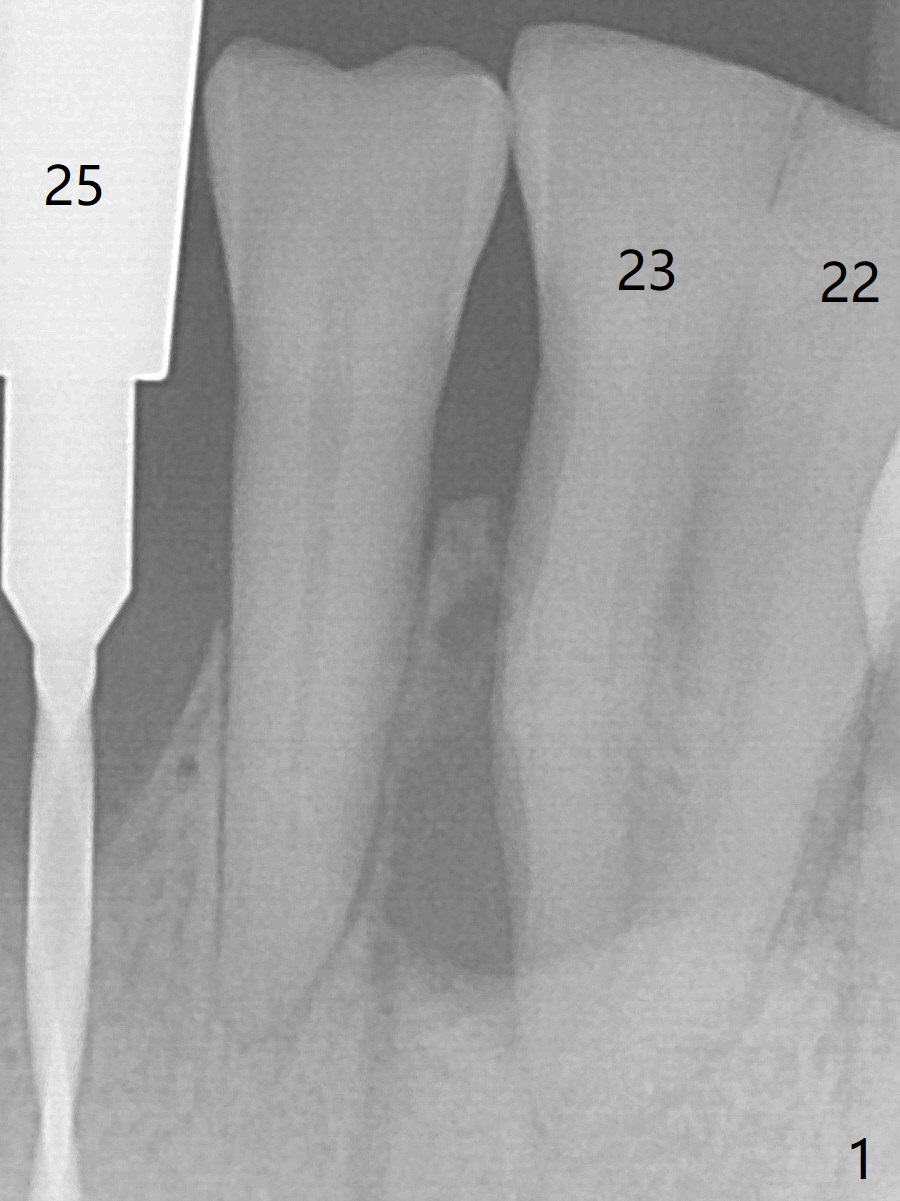

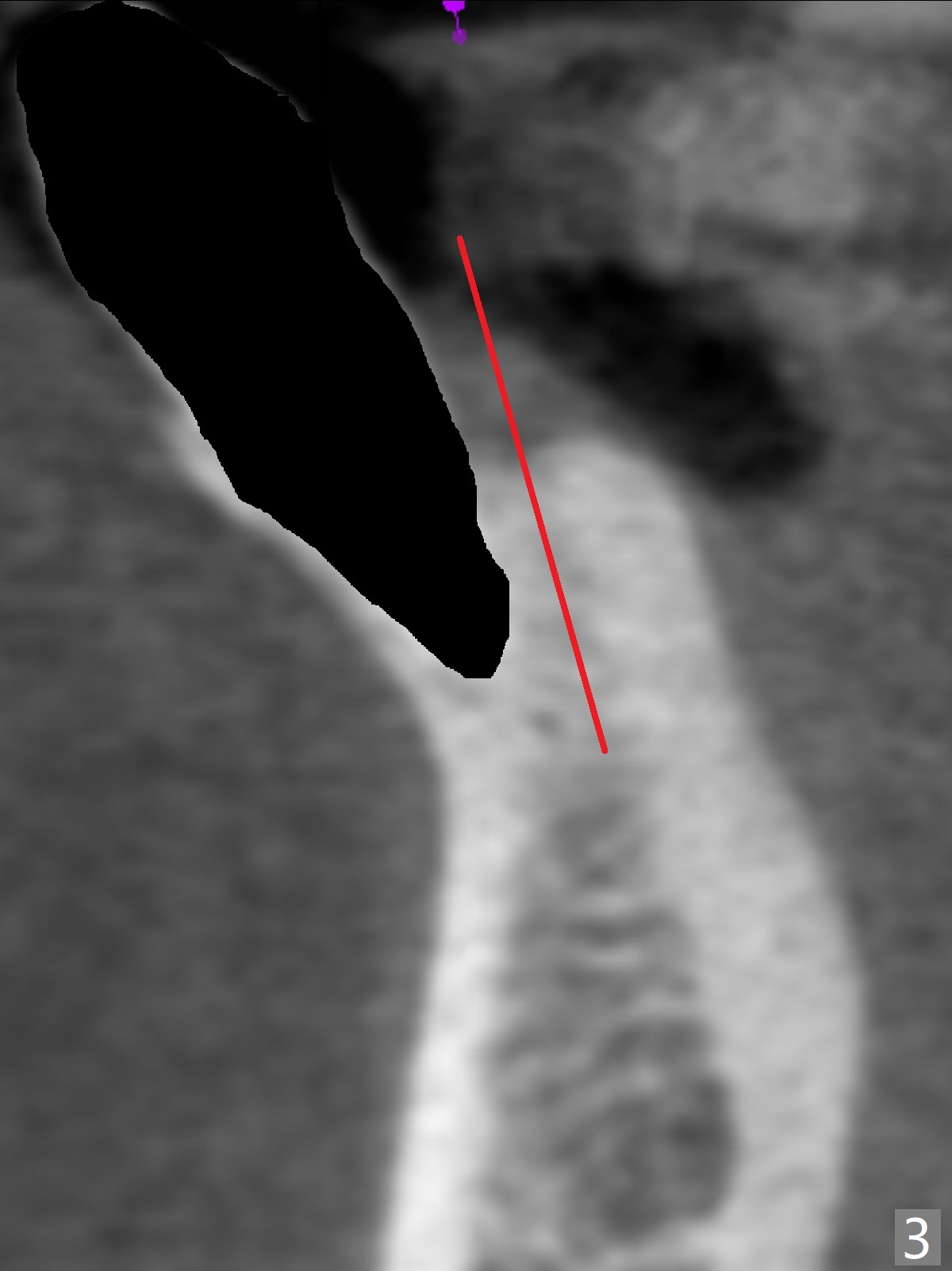

A 44-year-old woman will return for #22/23 (fusion) extraction and implant 2.5 months after one at #25 (Fig.1). If the mesiodistal width of the extraction socket(s) is not particularly wide, one implant will be placed. The tooth #22 seems to be buccally positioned (Fig.2 B). After extraction (Fig.3 black area), initiate osteotomy lingually (red line). Since the spongy bone is not wide buccolingually, a 3 mm implant appears to be appropriate (Fig.4).

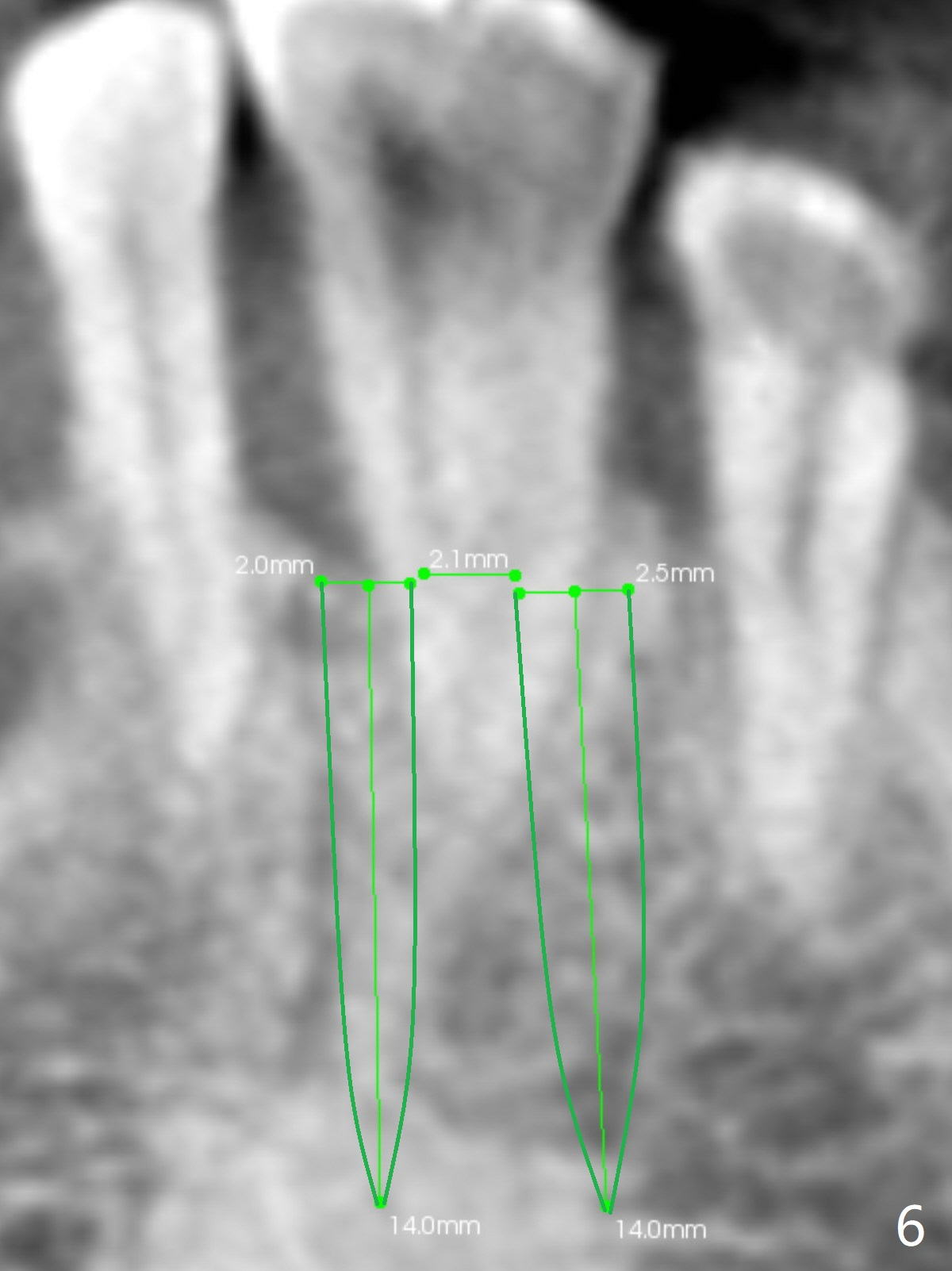

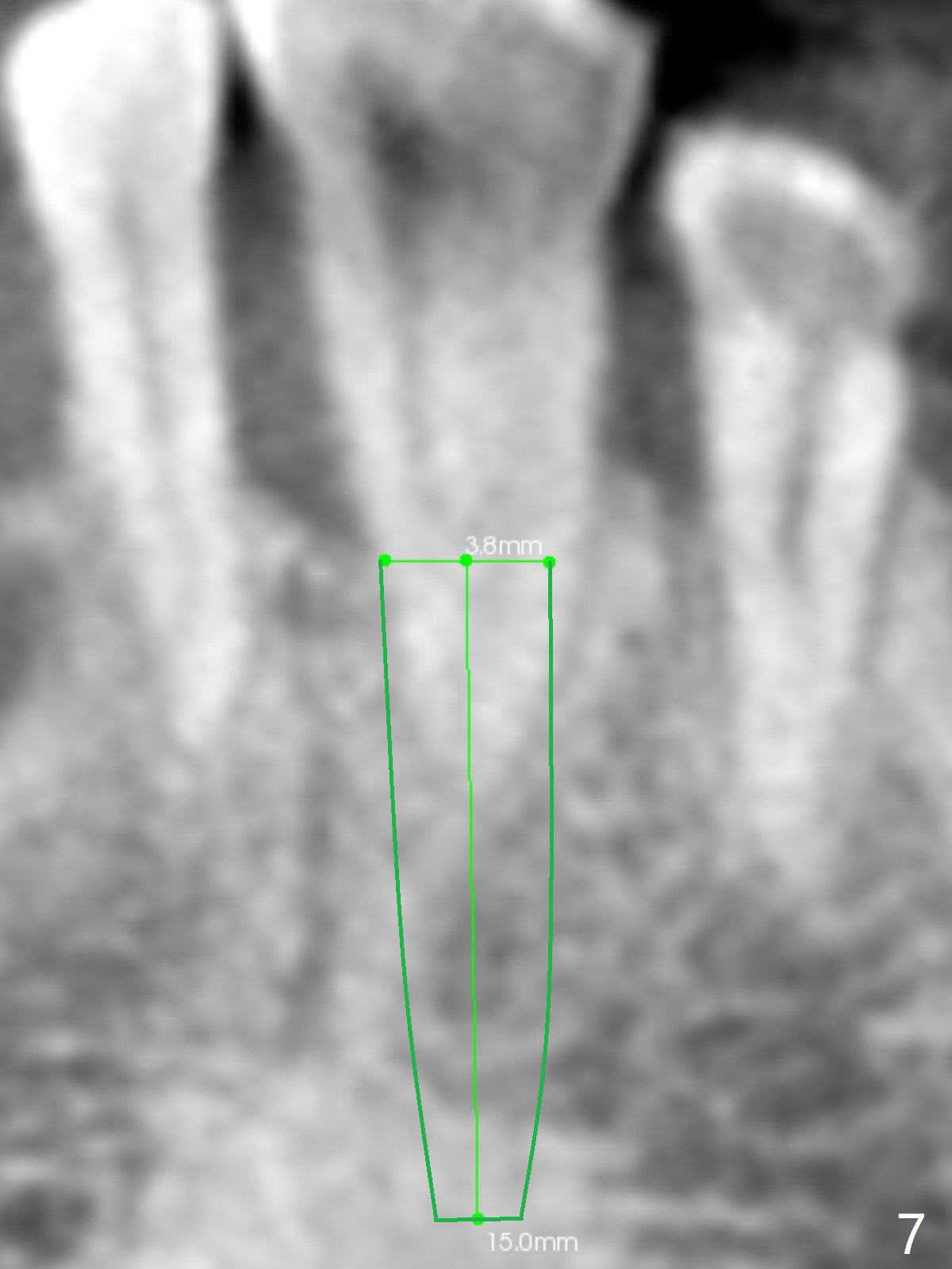

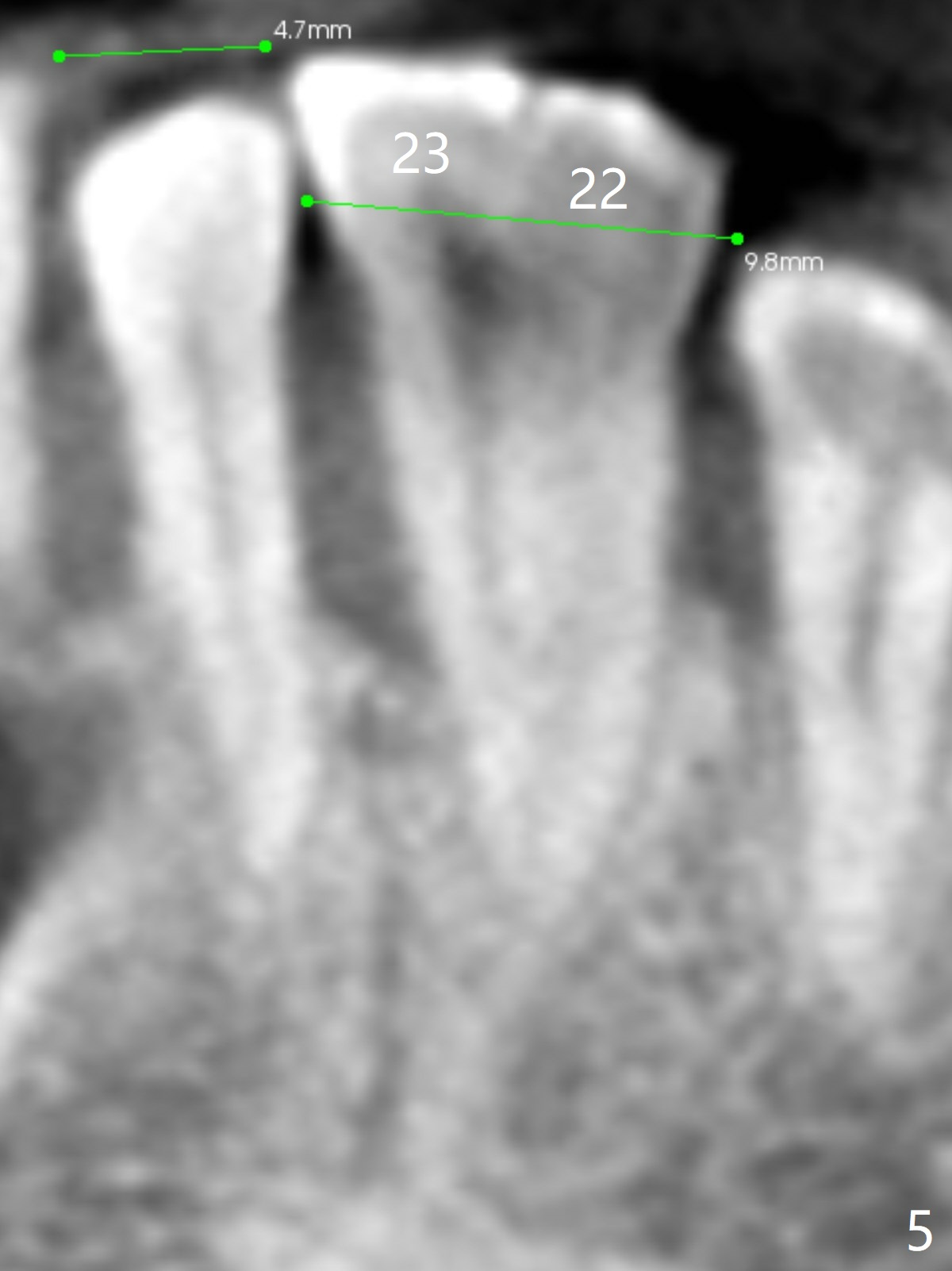

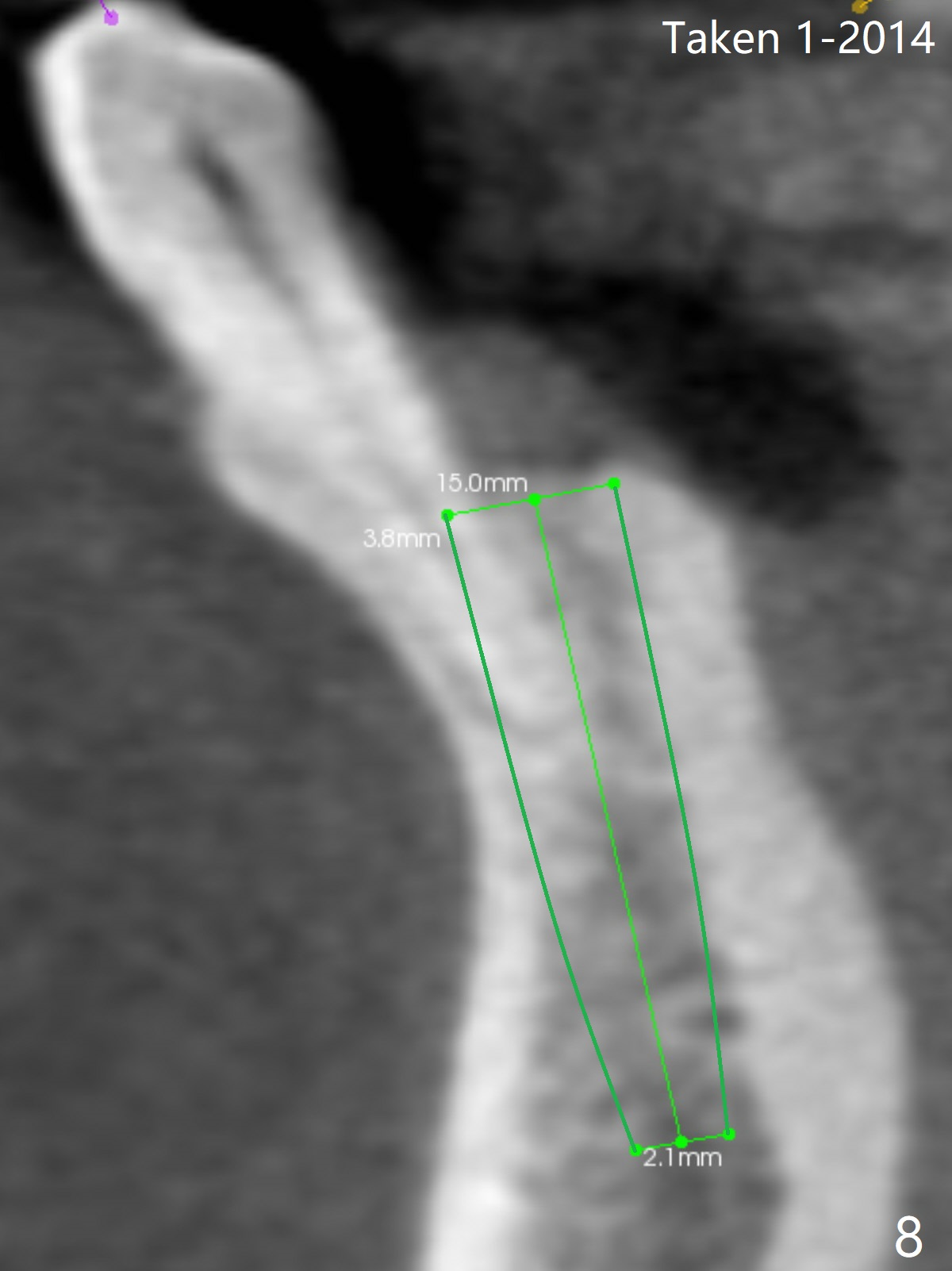

In fact, #22/23 mesiodistal width is ~ twice of that of an incisor (Fig.5). It is apparently more proper to place two smaller 1-piece implants (Fig.6) or a larger 2-piece one (Fig.7,8 (change to tissue-level one)).
Lower Incisor Canine Immediate Implant, Armaments, Clindamycin, 10 Redo
Xin Wei, DDS, PhD, MS 1st Version 03/18/2018, Last Update 12/02/2018
